LINEAR 5 MK II 1.0
4
1 General Information
Items delivered
When you first unpack your LINEAR 5 MK II speaker cabinet, please check
that it comes complete with the Quick Start Guide and a mains cable.

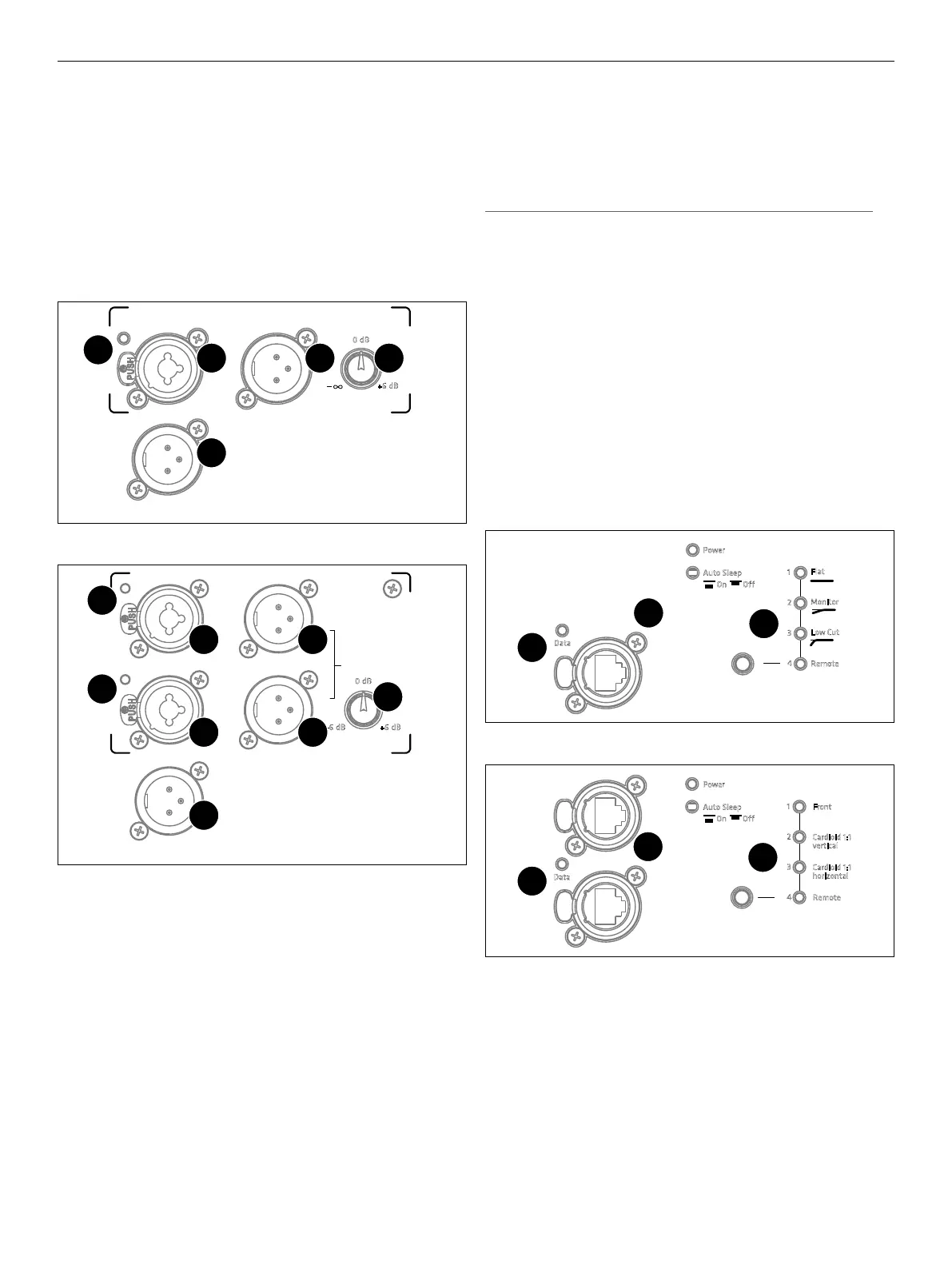

2 Connections and controls
LINEAR 7
112 FA
MADE IN GERMANY
Mains Input
100-240 V~ 50-60 Hz
1 A @ 1/8 output power
Caution: Risk of electric shock! Do not open!
Refer servicing to qualified service personnel.
Attention: Risque de choc élèctrique –
ne pas ouvrir!
HK Audio is a brand of Stamer Musikanlagen GmbH
Magdeburger Str. 8 • 66606 St. Wendel • Germany
Power
Serial No.
Power
Auto Sleep
On Off
+6 dB
0 dB
Input
DSP Out
Thru Gain
Data
Preset
1
2
3
4
Lock
Thru
In
Ethernet
Front
Cardioid 1:1
vertical
Cardioid 1:1
horizontal
Remote
1
5
2 3
4
6
7
8
LINEAR 5 MKII XA/FA models
Leave enough space for proper ventilation!
LINEAR 7
118 Sub A
MADE IN GERMANY
Power
Auto Sleep
On Off
+6 dB–6 dB
0 dB
Input
L
R
DSP Out
Thru Gain
Serial No.
Mains Input
100-240 V~ 50-60 Hz
1.9 A @ 1/8 output power
Link
100-240 V~ 50-60 Hz
max. 10 A
Caution: Risk of electric shock! Do not open!
Refer servicing to qualified service personnel.
Attention: Risque de choc élèctrique –
ne pas ouvrir!
HK Audio is a brand of Stamer Musikanlagen GmbH
Magdeburger Str. 8 • 66606 St. Wendel • Germany
Power
Lock
Lock
1
5
2
1 2
3
4
4
9
11 12
10
13
LINEAR 5 MKII Sub A models
●
1
Input
XLR/jack combo socket, balanced input for analogue signals.
• The LINEAR 5 MK II XA/FA models have one input channel.
• The LINEAR 5 MK II 115 Sub A and LINEAR 5 MK II 118 Sub A subwoofers
have two separate inputs for the left and right signals. The two channels
are equal and summed post-preamp, so you can use either one in mono
mode.
●
2
Thru
Use this parallel, balanced XLR output to send the signal routed into the
Input through to other components. This output remains active even when
the electronic components are deactivated. The subwoofer has two of these
ports.
●
3
Gain
Use this knob to adjust the input gain for the incoming signal.
• The control range for the XA/FA models goes from –∞ (mute) to +6dB.
• This knob adjusts the gain for both of the subwoofer’s stereo preamp
channels in a range of -6 to +6dB.
The centre-notched 12 o’clock position is 0dB in both cases.
Note: The Gain setting does not aect the signal sent to the DSP Out.
●
4
Input/Limiter LED
This LED lights up green to indicate incoming signals. When it is red, either
the limiter is active or the input is clipping. The LED briefly flashes red to
tell you the Limiter is responding to signal peaks. If it stays red, turn down
the Gain knob.
●
5
DSP Out
Use this XLR port to forward the analogue signal routed into the Input jack
or to forward a digital audio signal fed in via a network. The onboard DSP
can process both types of signals.
This means the DSP Out can serve as a network interface that lets you inte-
grate an added powered speaker that is not originally network-compatible.
In the factory default configuration, the unprocessed input signal goes
straight to DSP Out, regardless of the selected preset and the Gain knob
setting.
Ethernet mid/high units
LINEAR 7
112 FA
MADE IN GERMANY
Mains Input
100-240 V~ 50-60 Hz
1 A @ 1/8 output power
Caution: Risk of electric shock! Do not open!
Refer servicing to qualified service personnel.
Attention: Risque de choc élèctrique –
ne pas ouvrir!
HK Audio is a brand of Stamer Musikanlagen GmbH
Magdeburger Str. 8 • 66606 St. Wendel • Germany
Power
Serial No.
+6 dB
0 dB
Input
DSP Out
Thru Gain
Lock
Power
Auto Sleep
On Off
Data
Flat
Monitor
Low Cut
Remote
Preset
1
2
3
4
In
Ethernet
1
5
2 3
4
6
7
8
Ethernet subwoofers
LINEAR 7
112 FA
MADE IN GERMANY
Mains Input
100-240 V~ 50-60 Hz
1 A @ 1/8 output power
Caution: Risk of electric shock! Do not open!
Refer servicing to qualified service personnel.
Attention: Risque de choc élèctrique –
ne pas ouvrir!
HK Audio is a brand of Stamer Musikanlagen GmbH
Magdeburger Str. 8 • 66606 St. Wendel • Germany
Power
Serial No.
Power
Auto Sleep
On Off
+6 dB
0 dB
Input
DSP Out
Thru Gain
Data
Preset
1
2
3
4
Lock
Thru
In
Ethernet
Front
Cardioid 1:1
vertical
Cardioid 1:1
horizontal
Remote
1
5
2 3
4
6
7
8
●
6
Ethernet In /Thru
Use the etherCON port to integrate the speaker into a network. It accepts
RJ45 and etherCON (NE8 MX, NE8 MX6, NE8 MC) plugs. The mid/high units
each have an Ethernet In, and the subwoofers also have an Ethernet Thru.
Use the Ethernet Thru port to forward the network signal.
Always use S/STP or S/FTP cables to shield against electromagnetic inter-
ference. We recommend CAT6 cables. A separate manual explains the finer
points of network integration and remote control functions. You will find
it on the LINEAR5 MK II download page at www.hkaudio.com. For a brief
description of the DSP functions, see section
●
8
Preset.
