LINEAR 5 MK II 1.0

• English • Français• Deutsch • Italiano • Español

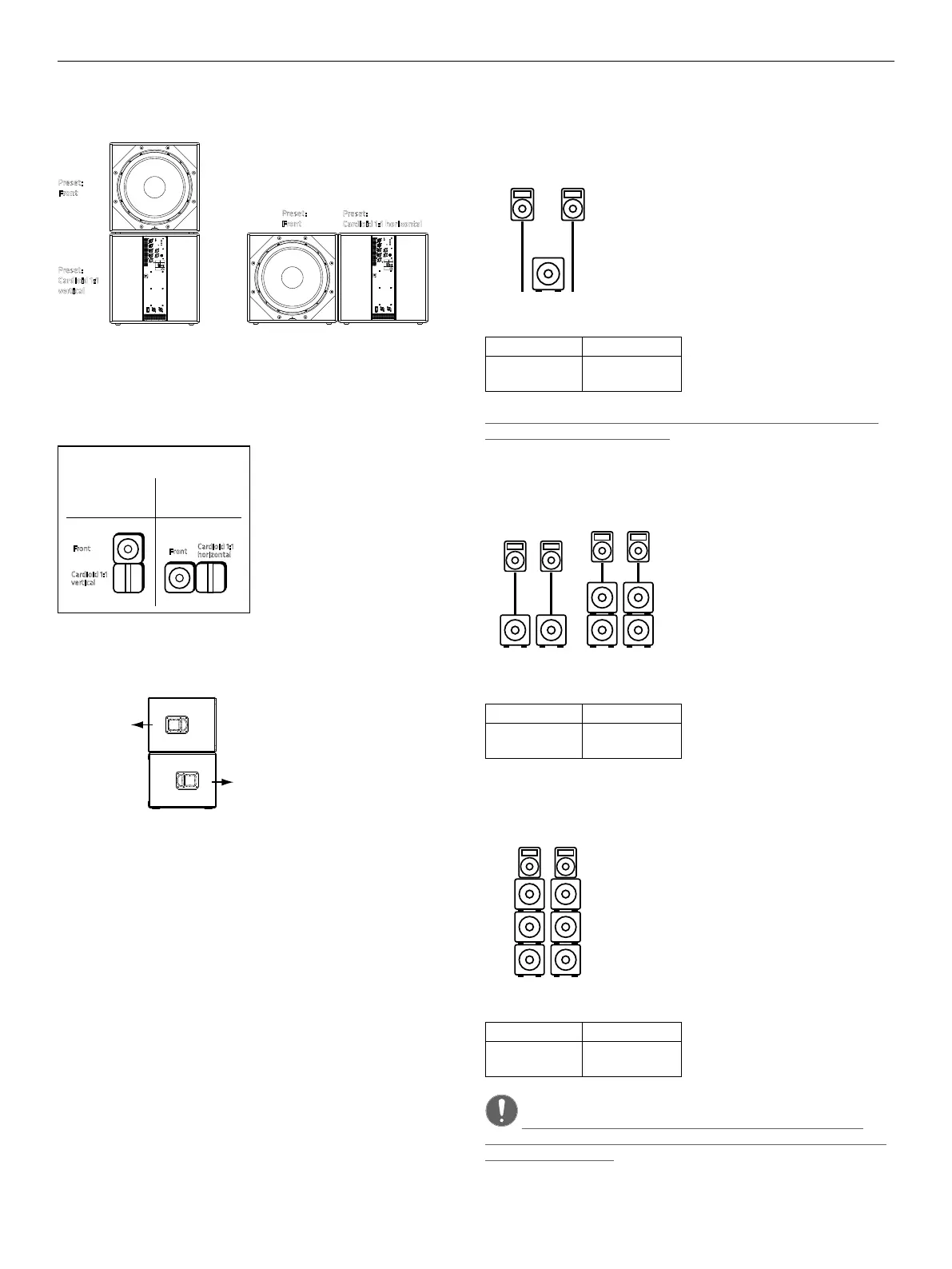

Cardioid 1:1 horizontal. The diagrams below show the front view from the

audience’s perspective.

Cardioid 1:1

vertical

Cardioid 1:1

horizontal

Preset:

Front

Preset:

Cardioid 1:1 horizontal

LINEAR 5

118 Sub A

MADE IN GERMANY

Preset:

Front

Preset:

Cardioid 1:1

vertical

LINEAR 5 MK II

118 Sub A

MADE IN GERMANY

Settings

Front

Cardioid 1:1

vertical

Cardioid 1:1

horizontal

Leave 1 meter of space

in each direction!

Cardioid 1:1

vertical

Cardioid 1:1

horizontal

LINEAR 5

118 Sub A

MADE IN GERMANY

LINEAR 5 MK II

118 Sub A

MADE IN GERMANY

Settings

Front

Cardioid 1:1

vertical

Cardioid 1:1

horizontal

Leave 1 meter of space

in each direction!

Cardioid 1:1

vertical

Cardioid 1:1

horizontal

Select the proper preset for the given setup on the rear panel of the LINEAR

5 MK II subwoofer. See section 2,

●

Preset for more on this.

Preset Settings

Front

Cardioid 1:1

vertical

Cardioid 1:1

horizontal

Cardioid 1:1

vertical

Cardioid 1:1

horizontal

Both setups attenuate the rearward sound pressure level by up to 34dB,

and boost the forward SPL around 2dB.

Front:

+2 dB

Rear:

–34 dB

When does a Cardioid setup make sense?

While medium and high frequencies can be radiated in directional patterns,

low frequencies are spherical. This often leads to an unpleasant excess of

low bass on and behind the stage. Organisers are also increasingly setting

precise demands for sound distribution, for example in marquees in city

centres. The most eective way to achieve this in the bass range is with

Cardioid technology (cancelling out the frequencies radiated to the rear).

Both LINEAR 5 MK II subwoofers therefore meet all the requirements for

quickly and easily implementing eective Cardioid setups, both mechanical-

ly and with the available ﬁlter sets.

5 Example systems

5.1 Setting Up a 2.1 Stereo System

Thanks to the LINEAR 5 MK II subwoofer’s onboard

stereo preamps, you can easily set up a 2.1 system,

routing both the left and right channels into a LIN-

EAR 5 MK II subwoofer and then forwarding their

signals to the mid/high units via its Thru ports.

The LINEAR 5 MK II 110 XA’s wide throw patterns are

perfect for this application.

Presets:

Mid-high units Low Cut

LINEAR 5 MK II

subwoofer

Front

For to ensure the most balanced image possible, centre the subwoofer

between the two mid/high units.

5.2 Setting up Speakers on Poles

If you wish to place mid/high units

on speaker poles rather than stands,

simply screw a pole with an M20 thread

into the M20 pole mount on the LINEAR

5 MK II subwoofer.

Presets:

Mid-high units Low Cut

LINEAR 5 MK II

subwoofer

Front

5.3 Stacking Speakers

Placing three LINEAR 5 MK II subwoofers on top of

one another creates a 1.65 m stack. You may place

the mid/high units directly on the bass bins.

Presets:

Mid-high units Low Cut

LINEAR 5 MK II

subwoofer

Front

Note: Setup as a stack should only be carried out by qualiﬁed

personnel and with appropriate standards such as securing with lashing

straps on ﬂat surfaces.
