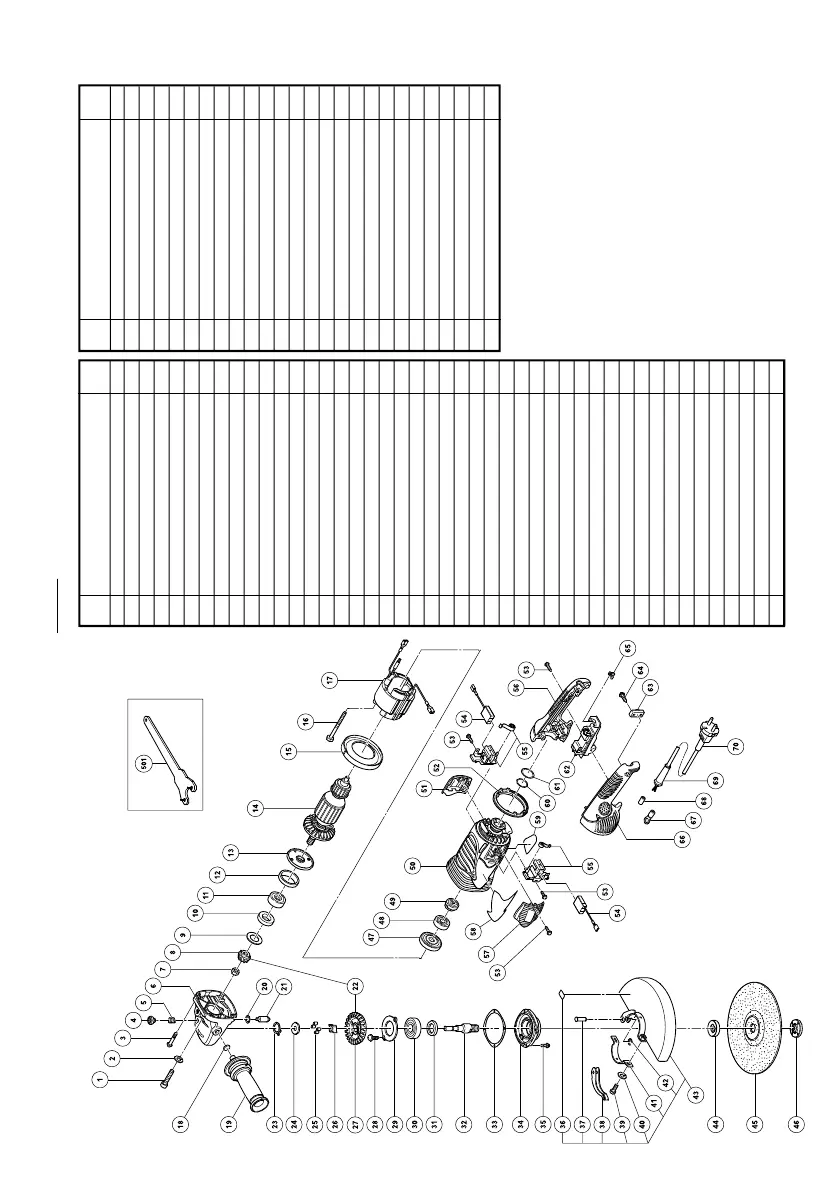

50
G23SCY
Item
No.
Part Name Q’TY
1
SEAL LOCK HEX. SOCKET HD. BOLT M5
×
14
2
2 SPRING WASHER M5 2
3
TAPPING SCWER (W/FLANGE) D5
×
35
4
4 PUSHING BUTTON 1
5 SPRING 1
6 GEAR COVER ASS’Y 1
7 SPECIAL NUT M10 1
8PINION 1
9 SEAL WASHER 1
10 FELT PACKING 1
11 BALL BEARING 6301DDCMPS2L 1
12 RUBBER RING (B) 1
13 BEARING COVER (A) 1
14 ARMATURE 1
15 FAN GUIDE 1
16 HEX. HD. TAPPING SCREW D5×75 2
17 STATOR 1
18 FELT WASHER 1
19 SIDE HANDLE 1
20 O-RING 1
21 LOCK PIN 1
22 GEAR ASS’Y 1
23 RETAINING RING FOR D10 SHAFT 1
24 COUPLING COVER 1
25 COUPLING DAMPER 4
26 COUPLING 1
27 GEAR 1
28 MACHINE SCREW M5×10 2
29 BEARING COVER (B) 1
30 BALL BEARING 6302DDCMPS2L 1
31 FELT PACKING (B) 1
32 SPINDLE 1
33 SEAL PLATE 1
34 PACKING GLAND 1
35
HEX. SOCKET HD. BOLT (W/FLANGE) M5×16
4
36 LABEL 1
37 SET PIN 1
38 LEVER 1
39 BOLT M8×22 1
40 SPRING WASHER M8 1
41 SET PIECE 1
42
RETAINING RING (E-TYPE) FOR D5 SHAFT
1
43 WHEEL GUARD ASS’Y 1
44 WHEEL WASHER (A) 1
45 D. C. WHEELS 230MM A24R 1
Item
No.
Part Name Q’TY
46 WHEEL NUT M14×21
47 DUST SEAL 1
48 BALL BEARING 6200VVCMPS2L 1
49 BEARING BUSHING 1
50 HOUSING 1
51 BRUSH COVER 1
52 HANDLE DAMPER 1
53
TAPPING SCREW (W/FLANGE) D4
×
16
8
54 CARBON BRUSH 7×17×22.5 2
55 BRUSH HOLDER SET 2
56 HANDLE (B) 1
57 BRUSH COVER 1
58 HITACHI LABEL 1
59 NAME PLATE 1
60 O-RING (I.D. 24.7) 1
61 O-RING (I.D. 31.2) 1
62 SWITCH 1
63 CORD CLIP 1
64
TAPPING SCREW (W/FLANGE) D4
×
16
2
65 SWITCH COVER 1
66 HANDLE (A) 1
67 TERMINAL M4.0 2
68 TUBE (D) 2
69 CORD ARMOR 1
70 CORD 1
501 WRENCH 1
