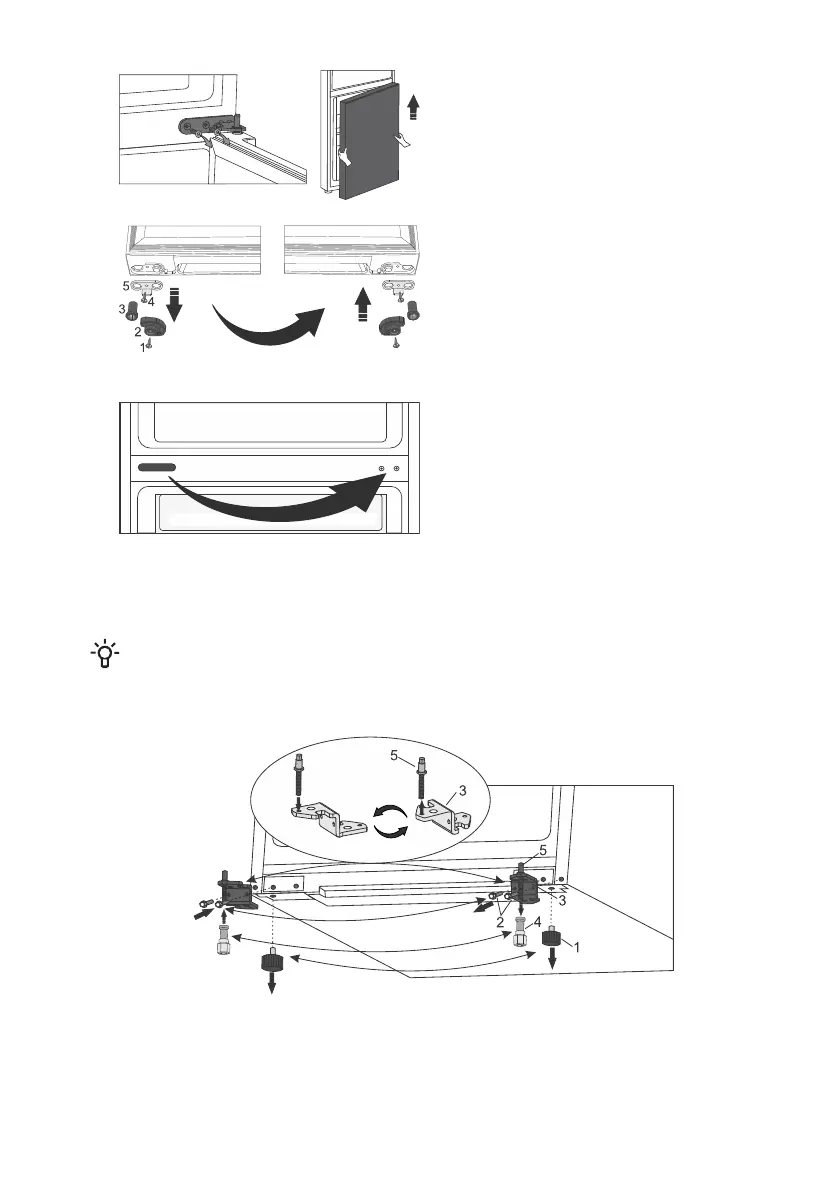

9. Undo the screws from the middle hinge and
remove it. Then, remove the bottom door
from the bottom hinge.
10. Repeat the process of changing the soft
closing mechanism on the lower door, too.
Unscrew the screw (1), remove the door
latch (2) and the hinge bushing (3). Then
unscrew the screw (4) and remove the door
limiter (5). Then install all these components
in reverse order on the opposite side of the
door.
11. Remove the middle hinge cap and replace
it on the opposite side.
12. Tilt the appliance slightly backwards, unscrew the foot (1) and the two screws (2) with which the
lower hinge (3) is attached and remove it. Then remove the extra foot (4) from the lower hinge and
unscrew the cap (5). Rotate the hinge (3) by 180° and refasten the cap (5) and the extra foot (4).
Attach the hinge and the foot to the opposite side.
INFORMATION!
The extra foot (4) serves only to stabilise the appliance and is not intended to carry the weight
of the appliance. When adjusting the foot (1) so that the appliance stands straight, lower the
extra foot (4) only so that it touches the floor.
14
