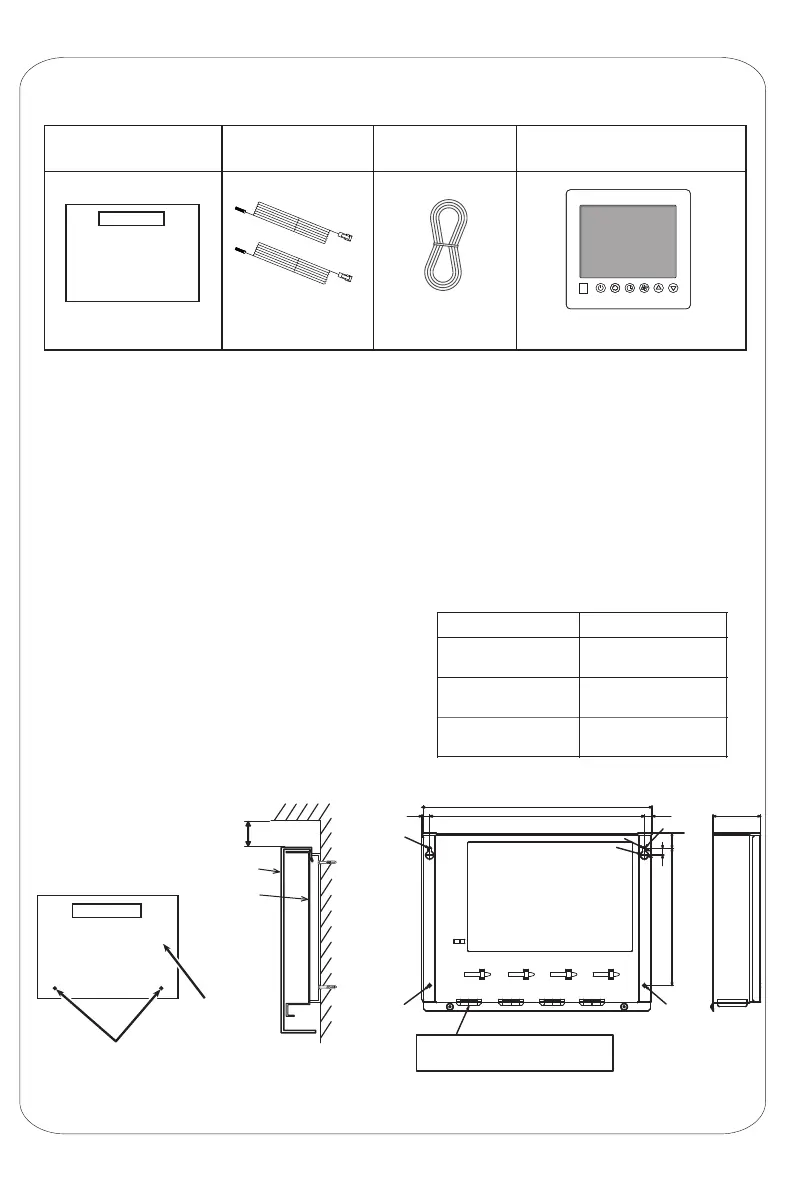

2. Installing the interface unit
2.1. Check the parts (Fig. 2.1.1)
The interface unit should be supplied with the following parts.
Thermistor
Remote controller
cable (5m) (Optional)
Remote controller (Optional)
<Fig.2.1.1>
1 pc 2 pcs 1 pc 1 pc
Interface unit
2.2. Choosing the interface unit installation
• Do not install the interface unit in outdoor location as it is designed for indoor installation only.(The interface board
and casing are not waterproof.)
• Avoid locations where the unit is exposed to direct sunlight or other sources of heat.
• Select a location where easy wiring access to the power source is available.
• Avoid locations where combustible gases may leak, be produced, flow, or accumulate.
• Select a level location that can bear the weight and vibration of the unit.
• Avoid locations where the unit is exposed to oil, steam, or sulfuric gas.
• Do not install in location that is hot or humid for long period of time.
612738.3
8.3
289
24.5
215
7
[
10
[
5
C
C
C
C
Unit: mm
3-ELECTRIC WIRE INLET
When install on a wall: Lower side
<Fig.2.3.2>
Service space
wall
Cover
Base
30mm or more
<Fig.2.3.1>
B
A
<Fig.2.3.3>
2.3. Installing the interface unit (Fig.2.3.1,2.3.2,2.3.3)
• Remove 2 screws A from interface unit and remove the
cover by sliding it upward (see Fig. 2.3.1).
• Install the 4 screws (locally supplied) in 4 holes (C hole).
* To prevent the unit from falling off the wall, select the
appropriate screws
(locally supplied) and secure the base horizontally to the
appropriate wall location (See Fig. 2.3.2).
A Screw
B Cover
C Hole for installation
Weight
Allowable ambient
temperature
Part Name
2.1kg+
ACCESSORIES 0.8kg
0 to 35 ℃
80% RH or less
Allowable ambient
humidity
4
