Note
】
•
This machine is used in conjunction with Hisense LG400030D (43''/50''/55''/65'') / LG-
60060BE (75''/85'') wall mounted brackets; Using non designated wall mounted brack-
ets together may cause instability and injury.Product defects caused by unauthorized
installation by Hisense are not covered by the warranty.
•
If installation instructions are not followed or non Hisense authorized installation
services or accessories are used, there may be safety hazards (including but not
limited to product falling or falling off) and personal injury or property damage may
occur. Such damage or loss is not caused by Hisense Company and should be
borne by the corresponding party at fault.
•
When using wall mounted installation, to avoid damage to the device or personal
injury, please install at an angle of less than 15° on a vertical wall.
【
Note
】
•
Only the installation specication of the wall mount is described here; the appear-
ance of rear shell is for schematic purpose only.
•
The screw installation depth in the wall-mount holes of the rear shell , L is : 9.5-
11.5mm; overlong screws will cause irreparable damage to the equipment.
•
If the intactness of the machine cannot be guaranteed during wall mounting, please
contact professional installation personnel or technical support personnel.
•
This wall mount is suitable for concrete and brick walls. For plank and plasterboard
walls, special reinforcement is required instead of directly using the wall mount.
Ensure that a single expansion bolt xed in the wall can bear over 1/3 of the overall
weight of the machine.

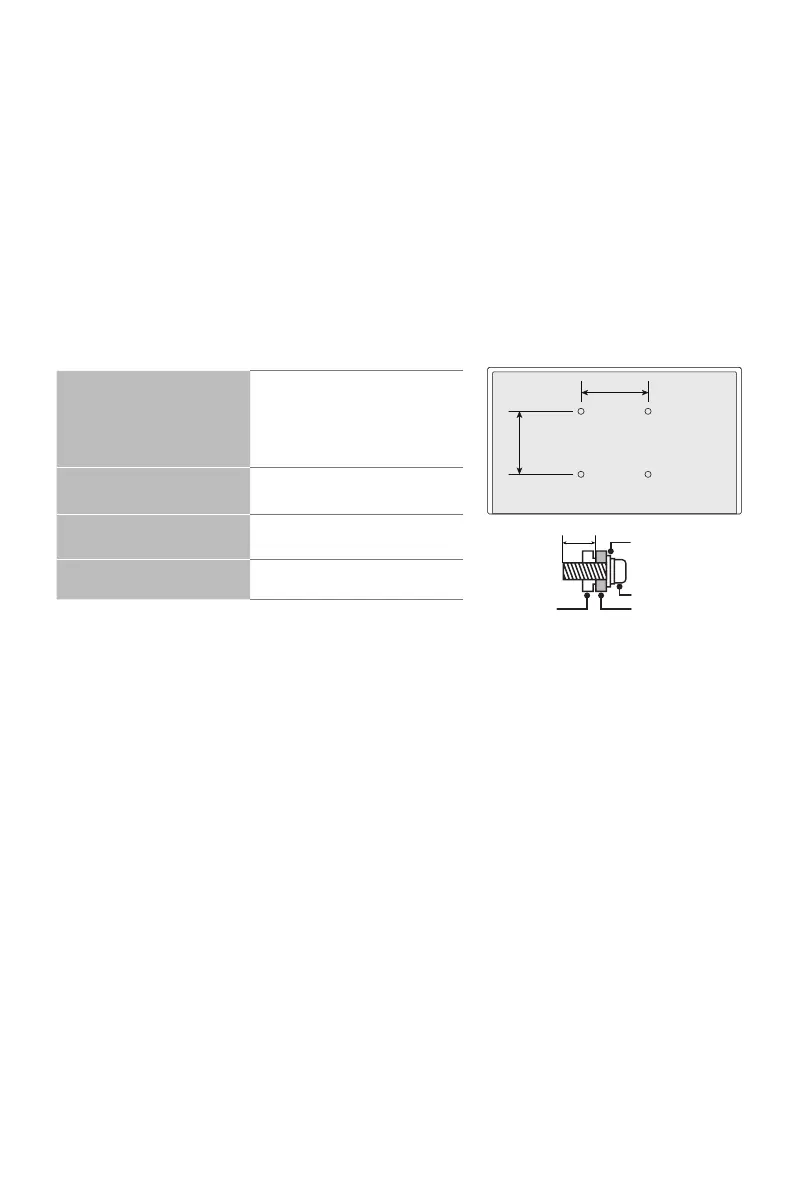

Wall mount hole
pattern(mm)
A× B
300×300 (43''/50'')
400×300 (55'')
400×400 (65'')
600×400 (75''/85'')
Wall mount screw size
M6 (43''/50''/55''/65''/75'')
M8 (85'')
Number of wall-
mount screw
4
L(mm) 9.5-11.5
B
A
L
Wall mount bracket
Screw
Spacer
Rear cover
