416186 English 3
3 Description

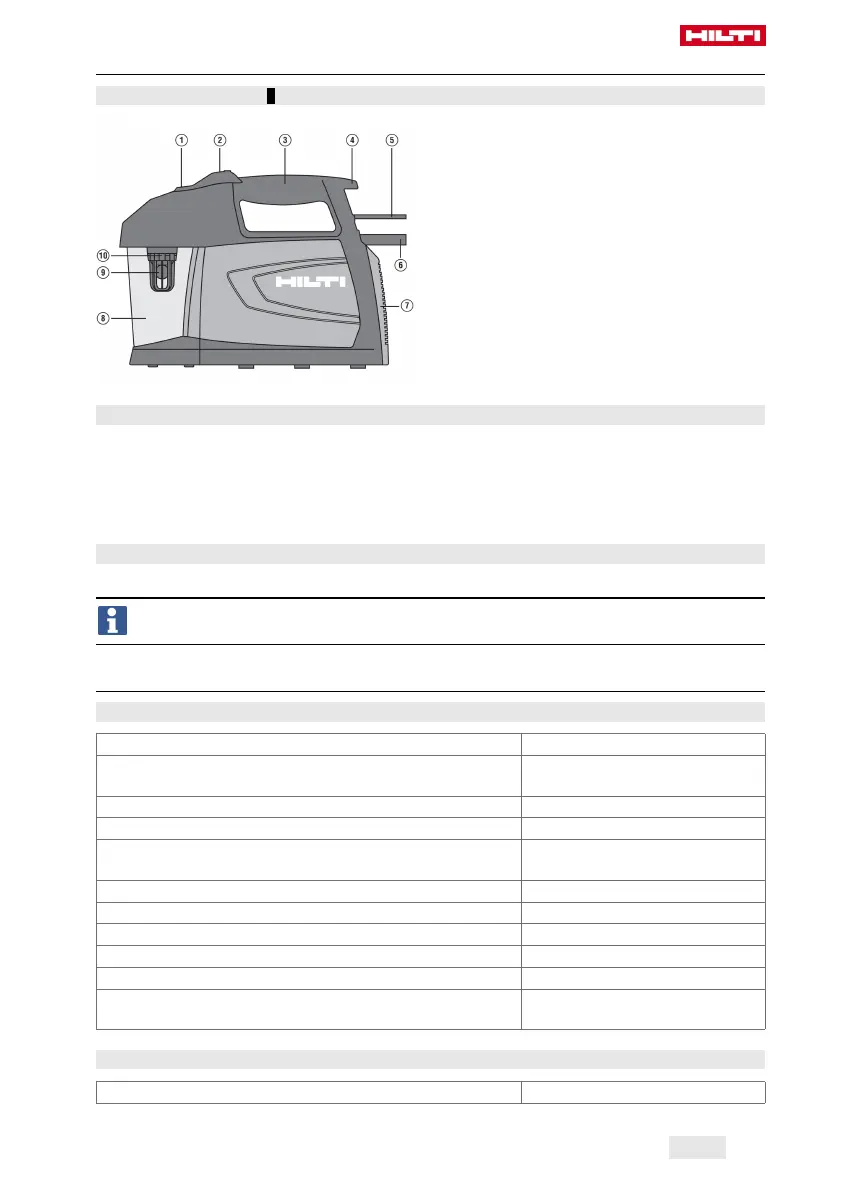

3.1 Product overview 1
@
Pressure gauge
;
On/off switch
=
Grip
%
Supply cord hook
&
Supply cord
(
Hose
)
Air vents
+
Water separator
§
Ball float
/
Cage
3.2 Intended use
The vacuum pump is designed to create a vacuum for securing a drill stand with a vacuum base plate and for
use in combination with vacuum holding jigs such as are used, for example, with Hilti diamond core drilling
machines (core bits up to max. 250 mm diameter).
• The vacuum pump is designed exclusively for intaking air. Intaking other gases or liquids is prohibited.
• The product must not be used in an explosive environment.
3.3 Items supplied
Vacuum pump, operating instructions
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group
4 Technical data
4.1 Product properties
Weight
9.0 kg
Dimensions (L x W x H)
383 mm x 154 mm x 282 mm
(15.1 in x 6.1 in x 11.1 in)
Power input
450 W
Maximum volumetric flow rate
6 m³/h
Minimum relative volume flow rate
700 mbar
(10.2 psi)
Water separator capacity
0.5 ℓ
Protection class
Protection class I (earthed)
Protection class
IP 54
Voltage
230 V
Rated current input
2.1 A
Frequency
50 Hz
(3,000 /min)
4.2 Noise information (in accordance with EN ISO 2151)
Typical A-weighted sound pressure level
< 70 dB(A)
