*2381082*
2381082 English 9

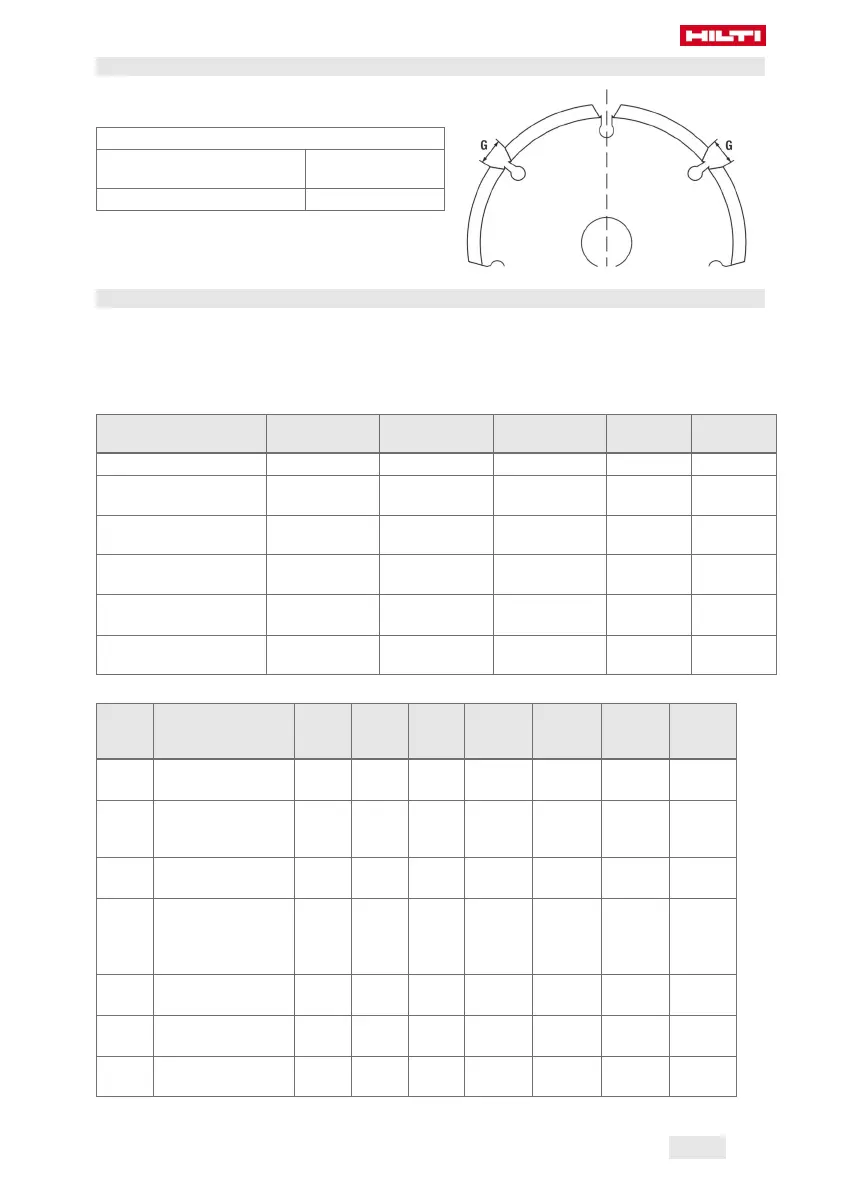

3.13 Dimensions and format of suitable diamond slitting wheels
Diamond slitting wheels must meet the following require-
ments in terms of dimensions and format.
Technical data
Slot width between segments
(G)
≤ 10 mm
Cutting angle Negative
3.14 Consumables
Use only synthetic-resin-bonded, fiber-reinforced wheels approved for a rotational speed of at least 11000
rpm and a peripheral speed of 80 m/s.
ATTENTION! When cutting or slitting with cut-off wheels always use the standard guard with the
additional front cover, or a fully enclosing dust hood.
Wheels
Application Designation Material max.
thickness
max.
diameter
Abrasive cut-off wheel Cutting, slitting AC-D Metal 1/10 in 5 in
Diamond cut-off wheel Cutting, slitting DC-D
(SPX, SP, P)
Mineral 1/8 in 5 in
Abrasive grinding wheel Rough grinding AG-D, AF-D,
AN-D
Metal 1/4 in 5 in
Diamond grinding wheel Rough grinding DG-CW
(SPX, SP, P)
Mineral — 5 in
Wire cup brush
Wheel brush
Wire brushes 3CS, 4CS
3SS, 4SS
Metal —
1-1/10 in
3 in
5 in
Abrasive resin-fiber
wheel
Rough grinding AP-D Metal — 5 in
Suitability of wheels for the equipment used
Item
Equipment
AC-D AP-D
AG-D
AF-D
AN-D
DG-CW
(SPX/
SP/P)
DC-D
(SPX/
SP/P)
3CS/4CS
3SS/4SS
AG-D
5⁄8"-11
A
Guard
(standard)
✓ ✓ ✓ ✓ ✓ ✓ —
B
Front cover
(in combination with
A)
✓ — — — ✓ — —
C
Dust hood (grinding)
DG-EX 125/5"
— — — ✓ — — —
D
Dust hood (cutting)
DC-EX 125/5"C
(in combination with
A)
— — — — ✓ — —
E
Side handle
(standard)
✓ ✓ ✓ ✓ ✓ ✓ ✓
F
Clamping nut
(standard)
✓ — ✓ ✓ ✓ — —
G
Clamping flange
(standard)
✓ — ✓ ✓ ✓ — —
