6. Use two PA4 screws (supplied) to secure the
mounting base to the ceiling.

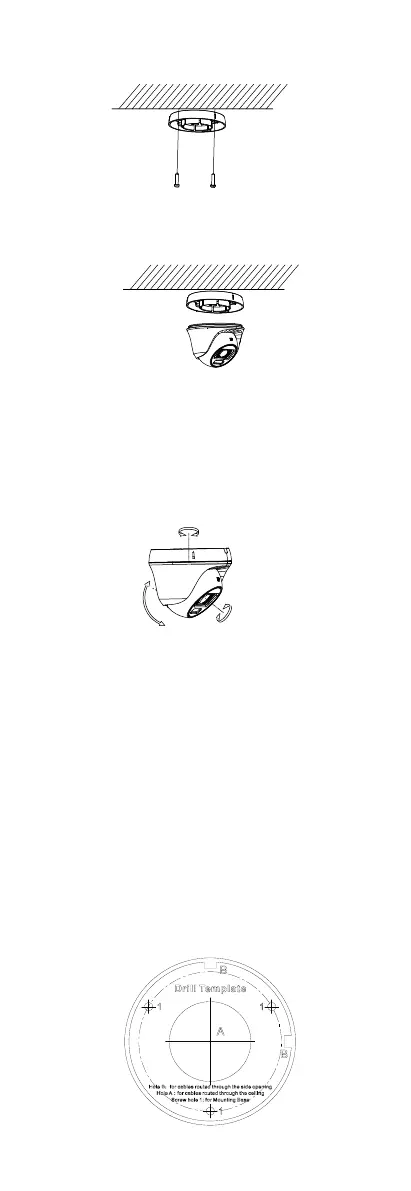

Figure 2-4 Secure the Base to the Ceiling
7. Install the camera back to the mounting base and
secure it.
Figure 2-5 Install the Camera Back
8. Connect the power cord and video cable.
9. Power on the camera to check whether the image
on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure
below.
Rotation Position
[0° to 360°]
Tilt Position
[0° to 75°]
Pan Position
[0° to 360°]
Figure 2-6 3-Axis Adjustment
1). Rotate the enclosure to adjust the pan position
[0° to 360°].
2). Move the main body up and down to adjust the
tilt position [0° to 75°].
3). Rotate the main body to adjust the rotation
position [0° to 360°].
2.1.2 Ceiling Mounting with Junction Box
Before you start:
You need to purchase a junction box in advance.
Steps:
1. Loosen screws to take apart the junction box.
2. Paste the drill template for junction box to the place
where you want to install the camera.
3. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Figure 2-7 Drill Template for Junction Box
