Je bekijkt pagina 35 van 51
35
APPLICATIONS
USER MANUAL

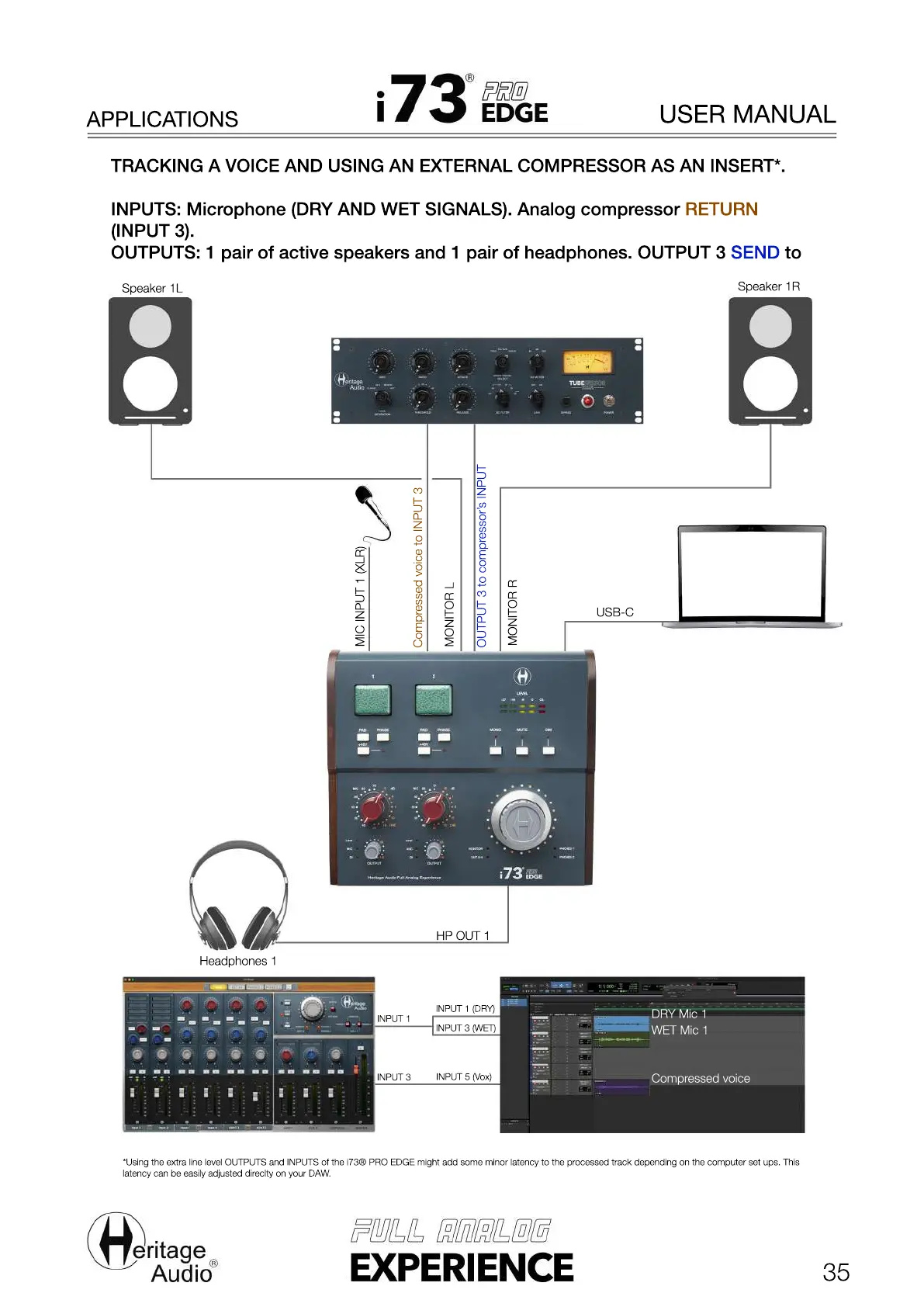

TRACKING A VOICE AND USING AN EXTERNAL COMPRESSOR AS AN INSERT*.
INPUTS: Microphone (DRY AND WET SIGNALS). Analog compressor RETURN
(INPUT 3).
OUTPUTS: 1 pair of active speakers and 1 pair of headphones. OUTPUT 3 SEND to
Headphones 1
INPUT 1
INPUT 1 (DRY)
INPUT 3 (WET)
MONITOR L
MIC INPUT 1 (XLR)
Compressed voice to INPUT 3
HP OUT 1
OUTPUT 3 to compressor’s INPUT
MONITOR R
USB-C
Speaker 1L
Speaker 1R
DRY Mic 1
WET Mic 1
Compressed voice
INPUT 3
*Using the extra line level OUTPUTS and INPUTS of the i73® PRO EDGE might add some minor latency to the processed track depending on the computer set ups. This
latency can be easily adjusted direclty on your DAW.
INPUT 5 (Vox)
