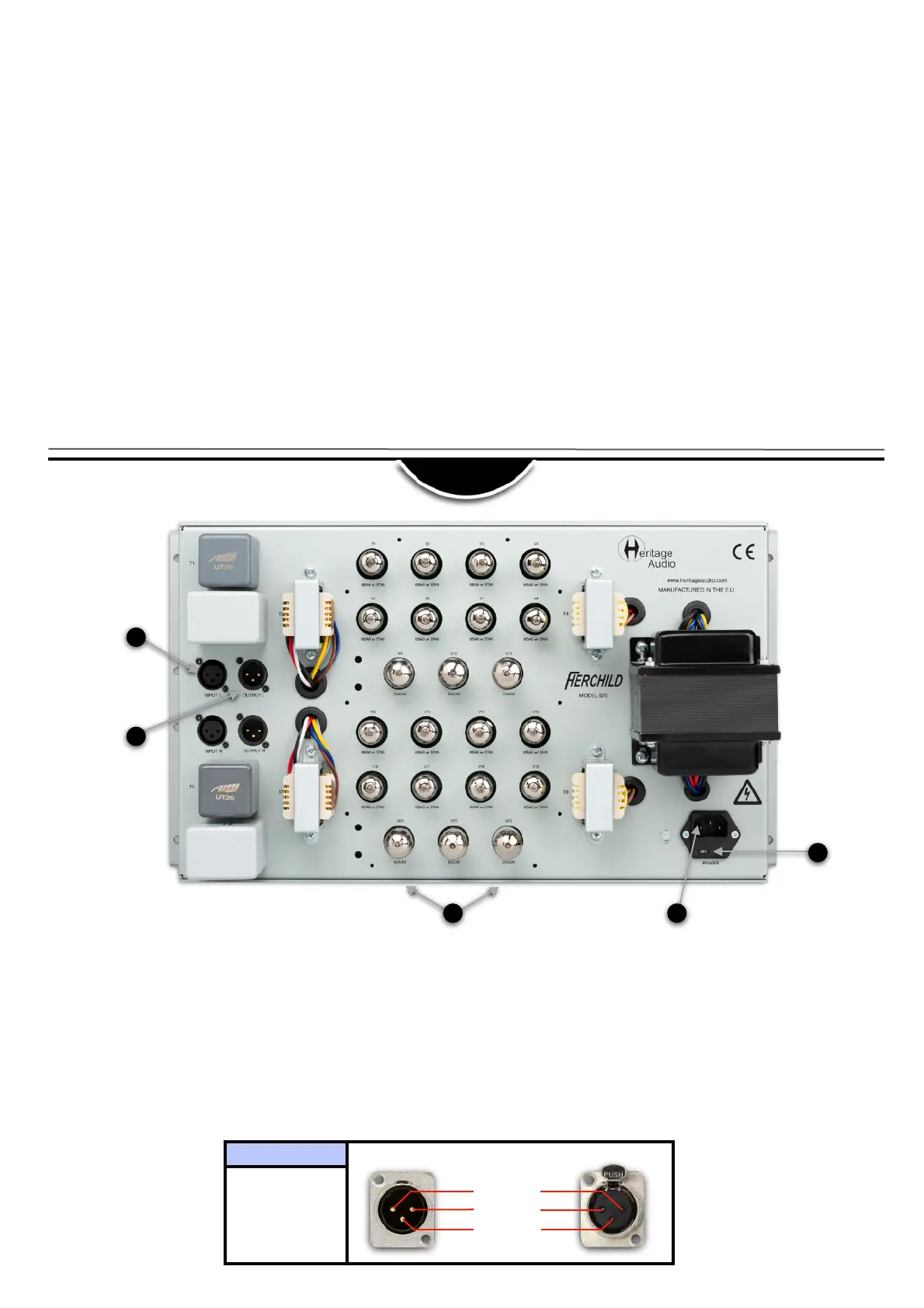

REAR

All XLRs are:

Pin 1: GND!

Pin 2: Hot!

Pin 3: Cold

GND!

Hot (+)!

Cold (-)

MALE XLR

FEMALE XLR

1-LINE INPUTS (x2): Female Gold Plated XLR Connector.

2-LINE OUTPUTS (x2): Male Gold Plated XLR Connector.

3-TUBES: (22) User changeable valves with easy access.

4-POWER INPUT: IEC standard power input connector.

5-VOLTAGE SELECTOR: Here you can select the correct voltage input according to the country you are in.

12-TIME CONST: Here you have 6 options for the attack and release timings giving you combinations for fast and slow

timings. (Please see the TIME CONSTANT Section for exact timings.)

13-AGC - Here you choose between 4 different modes of operation for the HERCHILD Model 670.

• The first being ´IND´ and refers to each channel being individual with it´s own independent control.

• The next, ´LINK´ will tie the channels together and base the compression applied on whichever channel is producing

the most compression to be used for both channels. This is used for stereo operation.

• The ´LAT VERT´ takes us way back to the vinyl cutting days and refers to the lateral and vertical adjustments when

cutting grooves onto vinyl records. This is similar to what we refer today as Mid & Side. A very effective way of

widening a stereo image and improving and strengthening the center image. Here the upper channel of the

HERCHILD Model 670 controls the ´MID´ information and the lower channel controls the middle or ´SIDE´

information.

• ´LAT VERT LINK´ is the same but with the controls linked together, once again deriving the overall compression

from whichever channel is producing the most at any given moment.
