www.heinner.com
13
screwdriver and remove the oven door. Then clean and rinse it thoroughly. After drying, place the oven glass
properly and re-install the handle.
Installation of the oven door

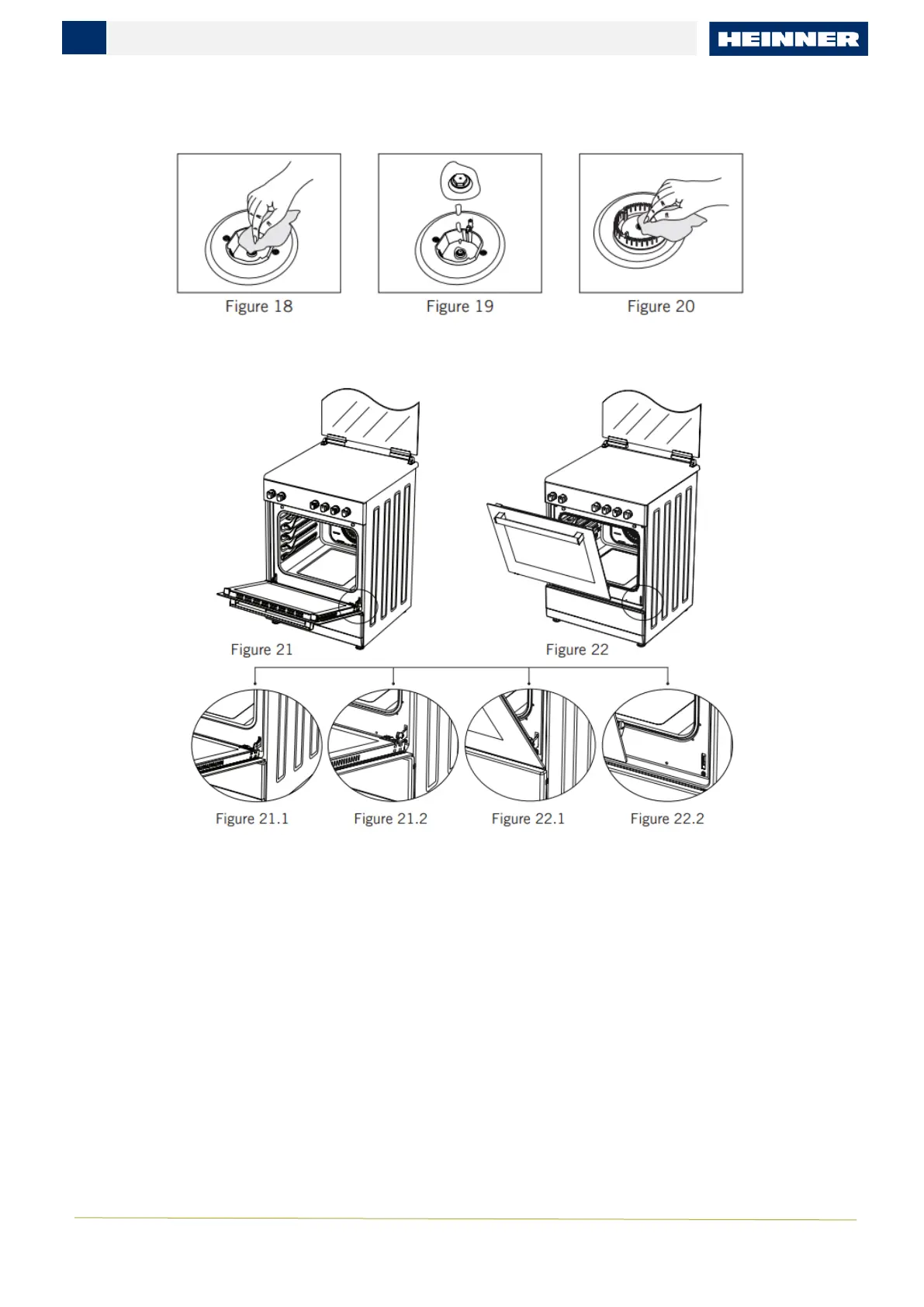

Completely open the oven door by pulling it to yourself. After wards, perform the unlocking process by pulling
the hinge lock upwards with the help of a screwdriver as shown in figure 21.1.
Bring the hinge lock to the widest angle as shown in figure 21.2. Bring both hinges connecting the oven door
to the oven to the same position.
Afterwards, close the oven door as to lean on the hinge lock as shown in figure 22.1.
To remove the oven door, pull it upwards by holding it with both hands when close to the closed position as
shown in figure 22.2.
To re-place the oven door, perform the abovementioned steps in reverse.
Cleaning and maintenance of the oven’s front door glass
Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 23 and pulling
the profile towards yourself as shown in figure 24.
Then remove the inner glass as shown in figure 25.
If required, middle glass can be removed in the same way. After cleaning and maintenance are done, remount
