OPENING THE CHIMNEY

NOTE: Wear eye protection and dust respirator.

An opening for the liner system will have to made for any existing chimney without an opening. If there is an

opening, it may need to be expanded in order to insert the tee take off into the removable tee or accomodate the

support system chosen.

To make the initial opening into the chimney, select a brick that is at the level you want the stove pipe to enter

the wall (at least 18" from unprotected combustibles unless a listed wall penetration assembly or other approved

method is used). The wall penetration assembly must be above the appliance. Drill a series of holes in the mortar

around the perimeter of the brick with a masonry drill bit.

Knock the remaining mortar surrounding the brick free with a hammer and cold chisel and remove the brick.

Additional bricks are usually easier to remove than the first one.

Non-Fireplace Chimney

Repeat for clean out tee, being sure to maintain the distance between the two tees as originally planned. Position

the two take offs, with the retractable bands fully extended, into the opening in the chimney making sure there

is room to tighten the screw on the take off’s retractable band.

INSTALLING YOUR SAF-T LINER AND SAF-T WRAP INSULATION

CAUTION must be used when working on a roof. Proper and safe scaffolding should be used for a safe

installation of the Saf-T Liner. Always use a respirator and eye protection when using Saf-T Wrap.

Non-Fireplace Chimney

Carefully lower the first section of liner, consisting of cleanout tee body, tee

cover and first liner section for between the tees, until the top is about 6"-12"

above the chimney top. Secure the lowering rope to the chimney top to prevent

the Saf-T Liner from falling further into the chimney. Insulate the first section

of Saf-T Liner with a 24" section Saf-T Wrap by closing the snap-lock seam

and crimping and slide it down to form a continuous enclosure of insulation.

Attach the next liner section to the one in the chimney and rivet the two sections

together with four opposing rivets. Repeat these procedures until the liner

section is ready to be guided through the retractable bands of the appliance

and clean-out tee take offs. Carefully lower the liner system through the

appliance take off, then through the clean out take off band until the cut out

sections line up. Secure the take off to the clean out tee by tightening the

retractable band. Return to the appliance opening and tighten the retractable

band in the same fashion. Trim the last section of Saf-T Wrap as required so

that it is at least 4" from the cover plate at the top of the chimney. This will allow

for expansion of the liner during normal use.

Hearth Stove and Fireplace Insert Stove

Insulate the first section of Saf-T Liner with a 24" section of Saf-T Wrap by

closing the snap-lock seam and crimping. Slide the Saf-T Wrap down until it

abuts the top of the appliance connector. Attach the next sections of Saf-T

Liner and insulate with Saf-T Wrap using the above procedures until the

desired height is acheived. Trim the last section of Saf-T Wrap as required

so that it is at least 4" from the cover plate at the top of the chimney. This will

allow for expansion of the liner during normal use.

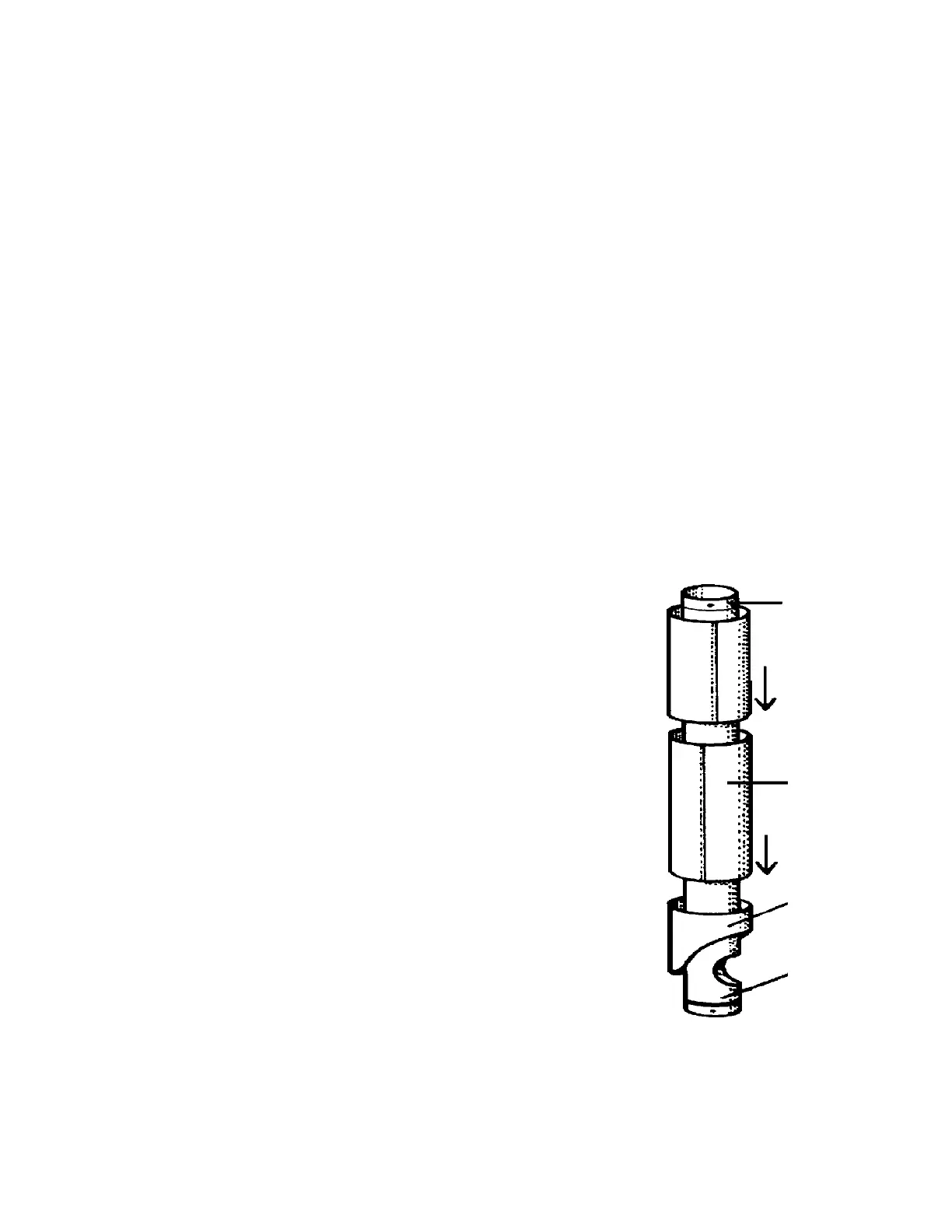

Saf-T Liner

Section

Appliance

Tee

Saf-T Wrap

Tee

Fig. 5

Saf-T Wrap

Section
