CLOSING THE CHIMNEY OPENING

Non-Fireplace Chimney

Before closing the opening in the chimney, make certain that the Saf-T Wrap is positioned securely around the

applaince tee.

Several brick halves and mortar will be needed to close in around the take off. Rebuild the chimney using brick

as square as possible. Fill mortar in tightly around the take off. Make sure that the starter section fits smoothly

into the takeoff before the mortar cures.

If desired a cover plate may be installed over the opening in lieu of filling with masonry. Attach the cover plate

with four tapcon screws or other masonry anchors.

INSTALLING THE COVER PLATE, RAINCAP AND STORM COLLAR

Place the coverplate on the top of the masonry chimney to create a dead

air space around the Saf-T Liner system. Trim the cover plate to 4" larger

than the outside of the chimney. Using tin snips, notch each corner 2" and

fold each corner under 90 degress. Set the cover plate over the liner onto

a bead of silicone caulk on the chimney top. Do not attempt to secure

the liner with mortar or fasteners directly to the masonry chimney

top. There must be room for vertical expansion of the Saf-T Liner

due to the heating and cooling process during normal use.

Install the storm collar directly below the expanded portion of the liner by

tightening the clamp screw. The storm collar will then rest on the cover

plate, supporting the upper sections of the liner system. Slide the rain cap

into the expanded portion of the liner and secure with the four self-drilling

screws provided. (see Fig. 6)

INSTALLING THE APPLIANCE

Non-Fireplace Chimney

The first section of stove pipe will connect to the tee take off, either through

a Saf-T Thimble or other listed and/or approved wall penetration assembly.

Any stove pipe connector used which is not open to plain view from the

room must be made of stainless steel. The wall penetration assembly

must be located above the appliance and may not be located directly

behind the heating appliance. Note: When a listed or approved wall

penetration assembly is not used, the single wall connector pipe must be

at least 18" from combustible construction materials.

Clearances from the solid fuel burning appliances to combustible materi-

als must be strictly adhered to. Follow all local codes and appliance

manufacturer’s directions (Fig.7 next page).

Hearth Stove and Fireplace Insert Stove

Install the bottom termination of the liner system and appliance connector

to the appliance flue collar. (see Fig.6)

Complete the hearth stove or fireplace insert installation per the

manufacturer’s instructions and guidelines.

After completing the installation of the appliance it is required that the initial

firing precautions of the appliance manufacturer’s instructions be strictly followed.

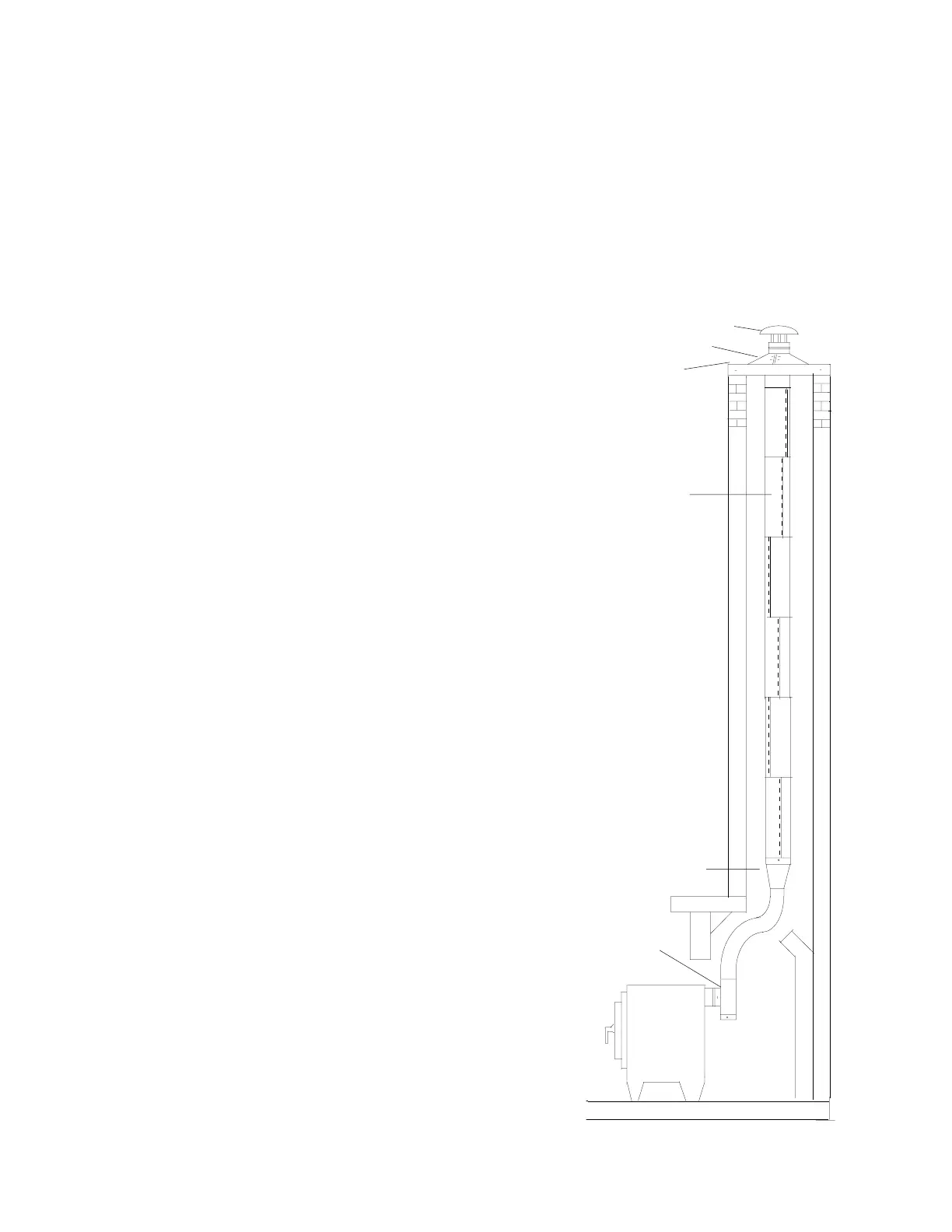

Saf-T Liner w/

Saf-T Wrap

Storm Collar

Tee Cover

Appliance

Tee

Fig. 6

Cover Plate

Rain Cap

Appliance

Connector
