ITEM DESCRIPTION
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER.
PART NO.
DP
04/30/19
7
0002080233
9201E
1:1
11
NE
05/06/19
5425
FV
6 of 7

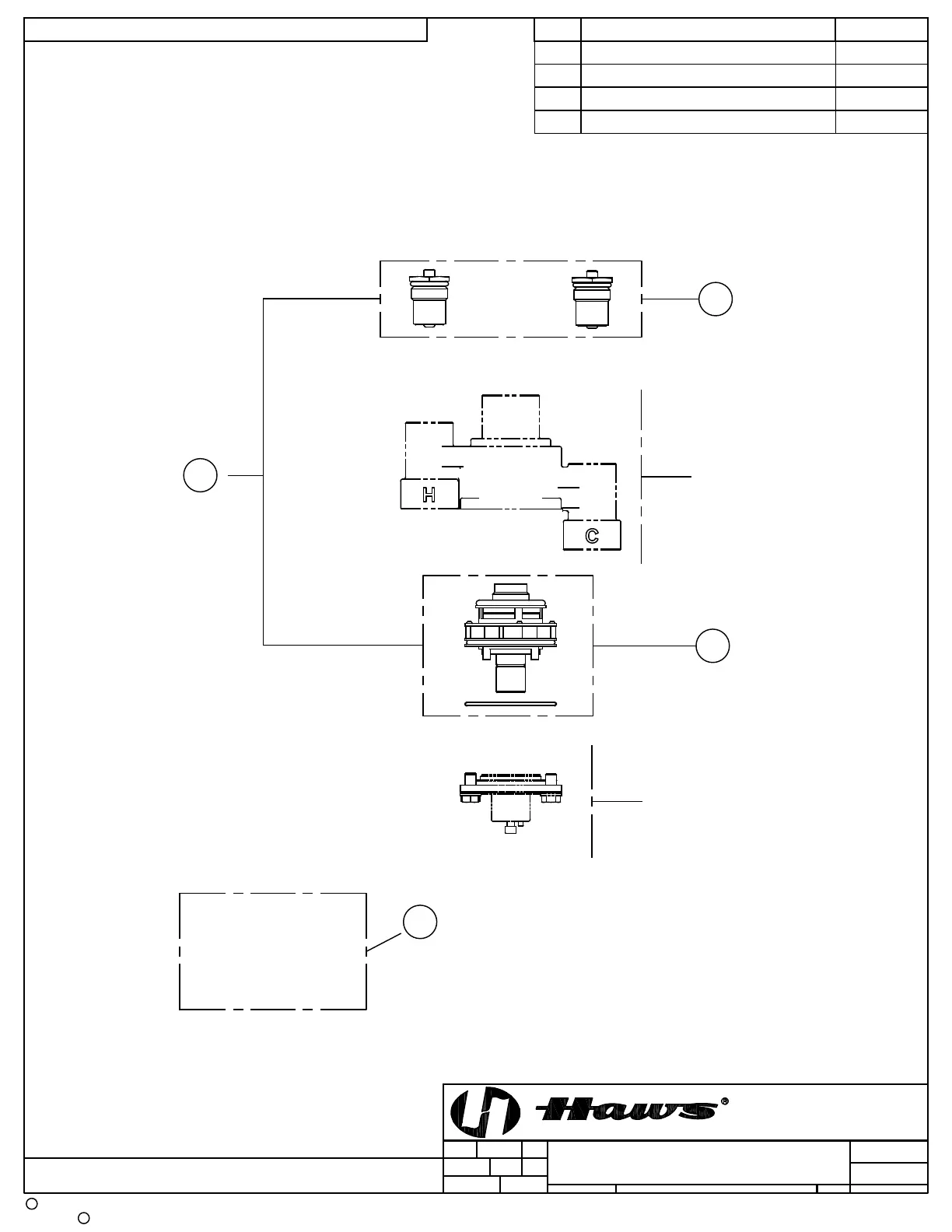

PARTS BREAKDOWN
5425
2019
DP
1
2
3
VALVE COVER AND BOLTS
SHOWN FOR REFERENCE ONLY
MAIN VALVE BODY
SHOWN FOR REFERENCE ONLY
4
BASIC
MAINTENANCE KIT
(NOT SHOWN) INCLUDES
ONLY ALL O-RINGS AND THE
THERMOSTAT USED IN THE
MODEL 9201E VALVE.
KIT, REPAIR, 9201E, CHECK STOPS
KIT, REPAIR, 9201E, MAIN MIXING VALVE
KIT, REPAIR, 9201E, COMPLETE
1
VRK01E.A
2
3
4
VRK01E.B
VRK01E.C
PARTS BREAKDOWN
EACH KIT INCLUDES INSTALLATION INSTRUCTIONS
KIT, BASIC MAINT, 9201E, T-STAT+O-RINGS
VRK01E.E
