FRONT FACE
4X 5/8" BOLTS AND
WASHERS (SUPPLIED)
4X CAST-IN ANCHORS
(SUPPLIED). SET AT
7" SQUARE SPACING
AND ORIENT AS SHOWN
4X 1/4" FLAT HEAD
SCREWS
PLATE, ORIENT
AS SHOWN
4X 3/8" NUTS
4X 3/8" BOLTS
FOUNTAIN ARM
EE
7"
178mm
7"
178mm
4X
7/8"
21mm
MOUNTING HOLES
7"
177mm
PLUMBING MUST FIT
WITHIN THIS AREA
SECTION E-E
4X 5/8" BOLTS
AND WASHERS
SUPPLIED WITH
ANCHORS

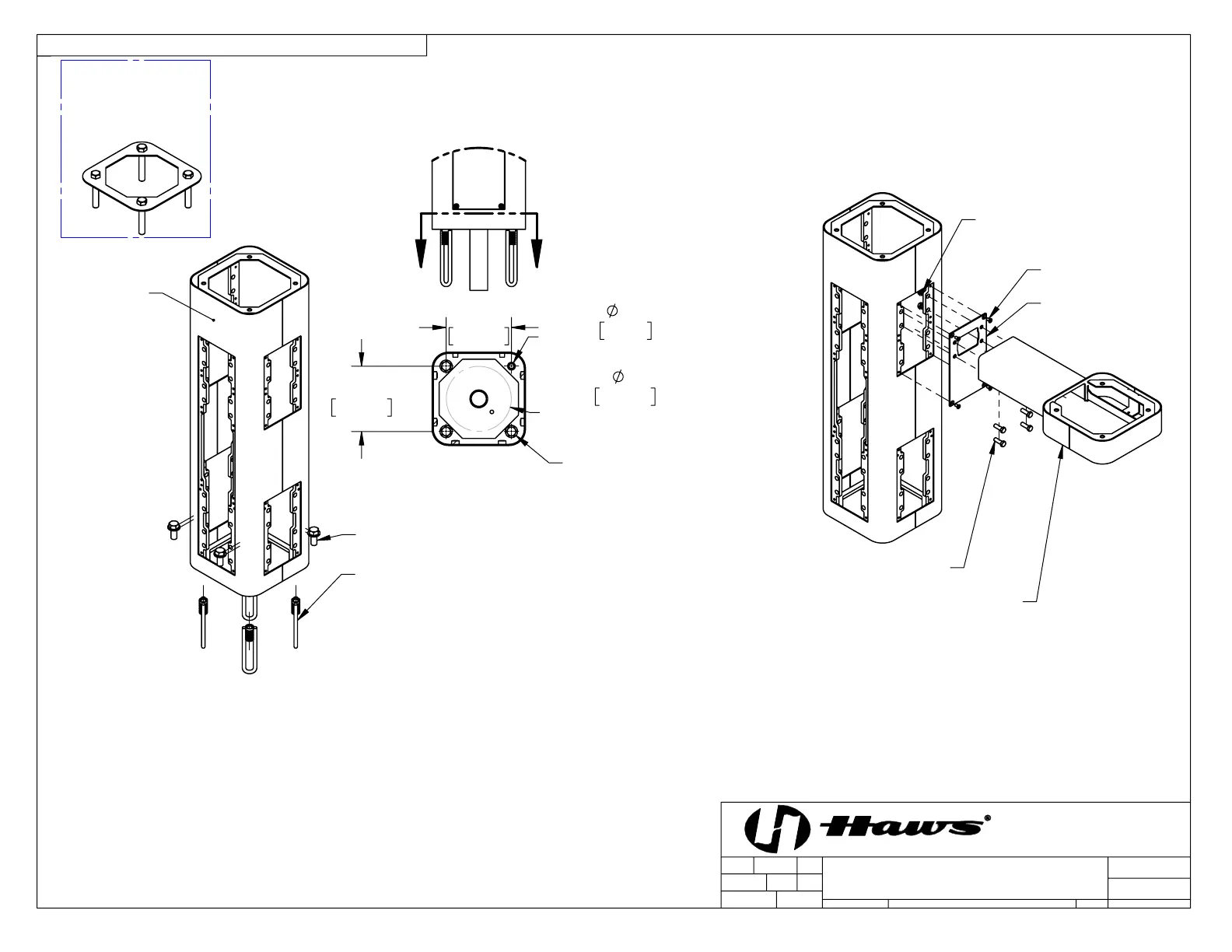

INSTALLATION INSTRUCTIONS
STEP 1
MOUNT PEDESTAL TO CONCRETE SLAB IN DESIRED
ORIENTATION. SLAB TO BE 30" MINIMUM SQUARE
AND 6" MINIMUM THICK (BY OTHERS). PLUMBING CAST
IN CONCRETE MUST FIT IN 7" DIAMETER AREA CENTERED
UNDER PEDESTAL LOCATION.
MODEL MTG.3600
(OPTIONAL)
TEMPLATE FOR
SPACING ANCHORS
DURING CONCRETE
POUR
STEP 2
REMOVE BOTTOM COVER PLATES FROM ARMS BY
REMOVING 3 1/4" BUTTON HEAD SCREWS.
INSTALL ONE FOUNTAIN ARM ON RIGHT SIDE AS
SHOWN. USE 1/4" FLAT HEAD SCREWS (SUPPLIED) TO
INSTALL PLATE. USE 3/8" BOLTS AND NUTS (SUPPLIED)
AND TORQUE TO 18 FT-LBS TO INSTALL ARM.
© 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:24
FV
09/16/21
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
DP
ECN:
SHEET 2 OF 6
0580001180.D
3612 & 3612F
PAGE 7 OF 11
PAGE 7 OF 11
