HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
WHEN ORDERING PARTS, PLEASE
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
2
1:2
FV
09/16/21
DRAWING TYPE: SIZE: A
5666
BY:
BJM

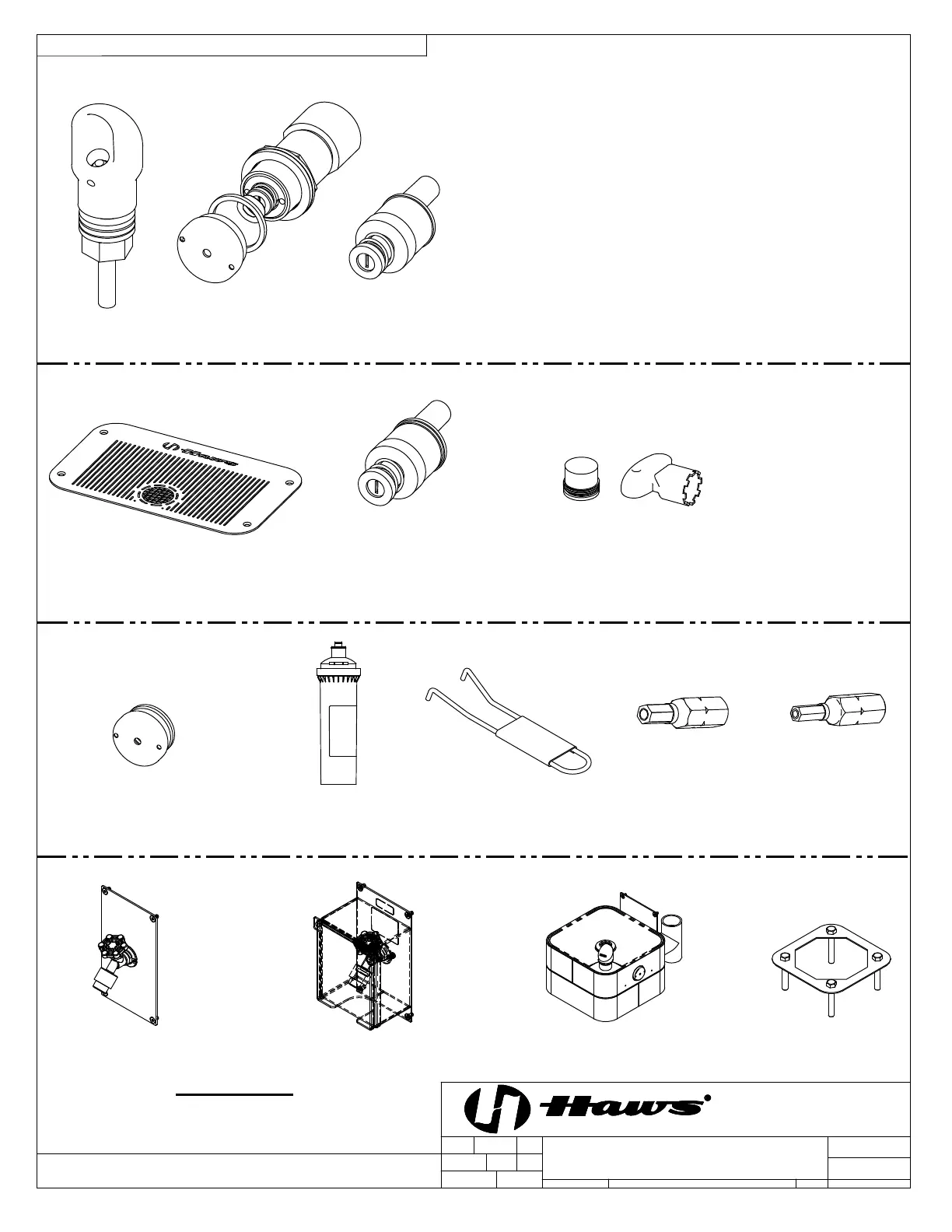

PARTS BREAKDOWN
DATE:
DATE:
REV. ECN:
5719
CHK'D.:
MODEL(S)
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
0580001180
SHEET 1 OF 2
SPECIFY PART NUMBER
WEBSITE: WWW.HAWSCO.COM
DP
ECN:
E-MAIL: HAWS@HAWSCO.COM
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
© 2021 Haws Corporation - All Rights Reserved.
3612 & 3612F
PARTS BREAKDOWN
REPLACEMENT PARTS
FOUNTAIN & BOTTLE FILLER
MODEL PBA7
BUTTON ASSEMBLY
0410000564
BOTTLE FILLER DRAIN
COVER PLATE
MODEL VRK5874
VALVE REPAIR KIT
0006983506
SPANNER WRENCH
MODEL VRK5874HF
VALVE REPAIR KIT,
HIGH FLOW
MODEL VRKNOZ1
QTY 10 AERATORS
AND INSTALL TOOL
0510001030
HEX BIT,
PINNED, 5/32"
0510001029
HEX BIT,
PINNED, 1/8"
OPTIONAL ACCESSORIES
MODEL 3661 HOSE BIB
(NOT FREEZE RESISTANT)
MODEL 3660 LOCKABLE HOSE BIB
(NOT FREEZE RESISTANT)
PAGE 4 OF 11
3612 & 3612F
MODULAR OUTDOOR FOUNTAIN SYSTEM
MODEL 6428
FILTER CARTRIDGE
(FOR 36XXF SERIES
MODELS)
MODEL 5703M
BUBBLER HEAD
REPLACEMENT PARTS
DRINKING FOUNTAIN
REPLACEMENT PARTS
BOTTLE FILLER
MODEL 5874PB
PUSHBUTTON
MODEL 3670 DOG BOWL
(NOT FREEZE RESISTANT)
MODEL MTG.3600
INSTALLATION AID
