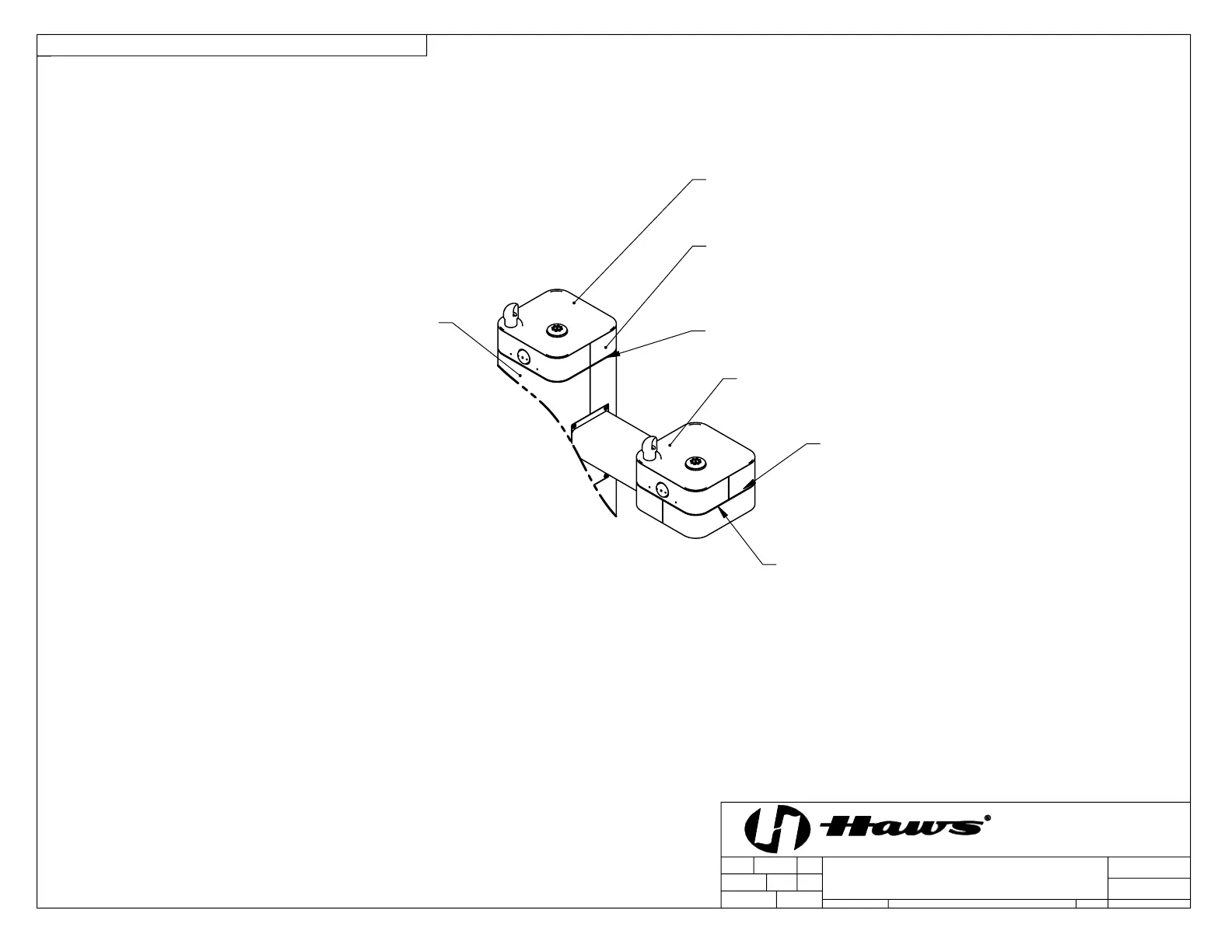

FOUNTAIN ASSEMBLY
(FOUNTAINS INTERCHANGEABLE)
4X 3/8" BOLTS AND NUTS,
INSTALL VIA FRONT
ACCESS PANEL
TRIM RING
FRONT FACE
FOUNTAIN ASSEMBLY
(FOUNTAINS INTERCHANGEABLE)
4X 3/8"
BOLTS & NUTS,
INSTALL FROM
UNDERSIDE
TRIM RING
INSTALLATION INSTRUCTIONS
STEP 3
PLACE SQUARE TRIM RING ON TOP OF PEDESTAL AND
PLACE ONE FOUNTAIN ASSY. ON TOP OF TRIM RING, FACING
THE FRONT. USE 3/8" BOLTS AND NUTS VIA THE FRONT
ACCESS PANEL TO SECURE FOUNTAIN ASSY. TO PEDESTAL.
PLACE TRIM RING AND INSTALL 2ND FOUNTAIN ASSY. ON ARM AS
SHOWN. CAREFULLY CENTER TRIM RINGS AND TORQUE BOLTS
AND NUTS TO 18 FT-LBS
© 2022 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
3
1:24
FV
07/12/22
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
INSTALLATION
DATE:
DATE:
REV. ECN:
5822
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
JU
ECN:
SHEET 3 OF 7
0510001187.D
3602 & 3602F
PAGE 8 OF 12
PAGE 8 OF 12
