MODEL 5703M
BUBBLER HEAD
REPLACEMENT PARTS
DRINKING FOUNTAIN
MODEL 5874PB
PUSHBUTTON
MODEL 3670 DOG BOWL
(NOT FREEZE RESISTANT)
MODEL MTG.3600
INSTALLATION AID

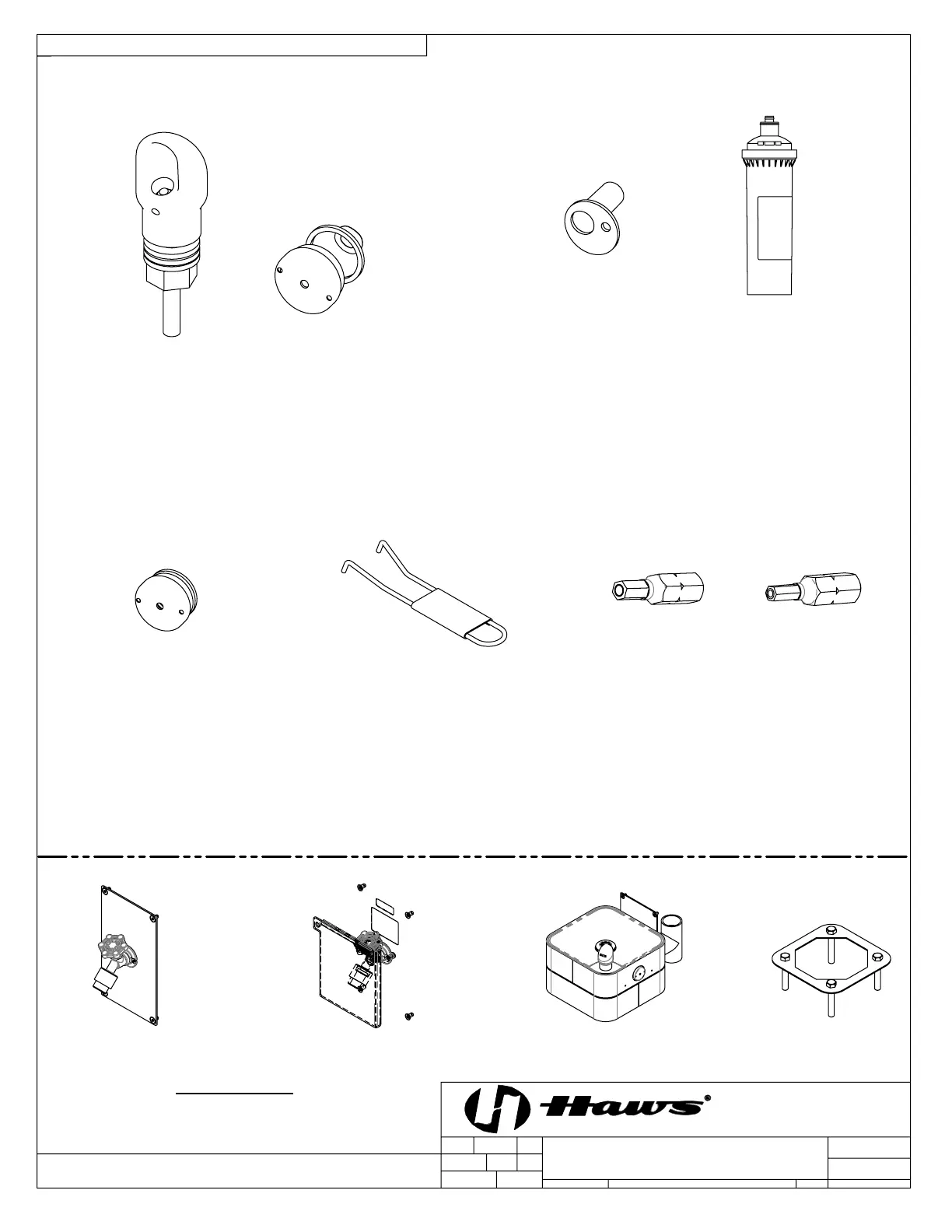

PARTS BREAKDOWN
MODEL PBA7
BUTTON ASSEMBLY
MODEL VRK5874
VALVE REPAIR KIT
0006983506
SPANNER WRENCH
0510001030
HEX BIT,
PINNED, 5/32"
0510001029
HEX BIT,
PINNED, 1/8"
OPTIONAL ACCESSORIES
MODEL 3661 HOSE BIB
(NOT FREEZE RESISTANT)
MODEL 3660 LOCKABLE HOSE BIB
(NOT FREEZE RESISTANT)
PAGE 4 OF 12
3602 & 3602F
MODULAR OUTDOOR FOUNTAIN SYSTEM
MODEL 6428
FILTER CARTRIDGE
(FOR 36XXF SERIES
MODELS)
ITEM
PART NUM
DESCRIPTION
THIS TABLE NOT USED.
LEFT HERE FOR FUTURE.
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
DHP
6/11/20
3
1:2
FV
07/12/22
DRAWING TYPE:
SIZE: A
5666
BY:
BJM
PARTS BREAKDOWN
DATE:
DATE:
REV. ECN:
5822
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
JU
ECN:
WHEN ORDERING PARTS, PLEASE
SPECIFY PART NUMBER
SHEET 1 OF 2
0510001187
© 2022 Haws Corporation - All Rights Reserved.
HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
3602 & 3602F
