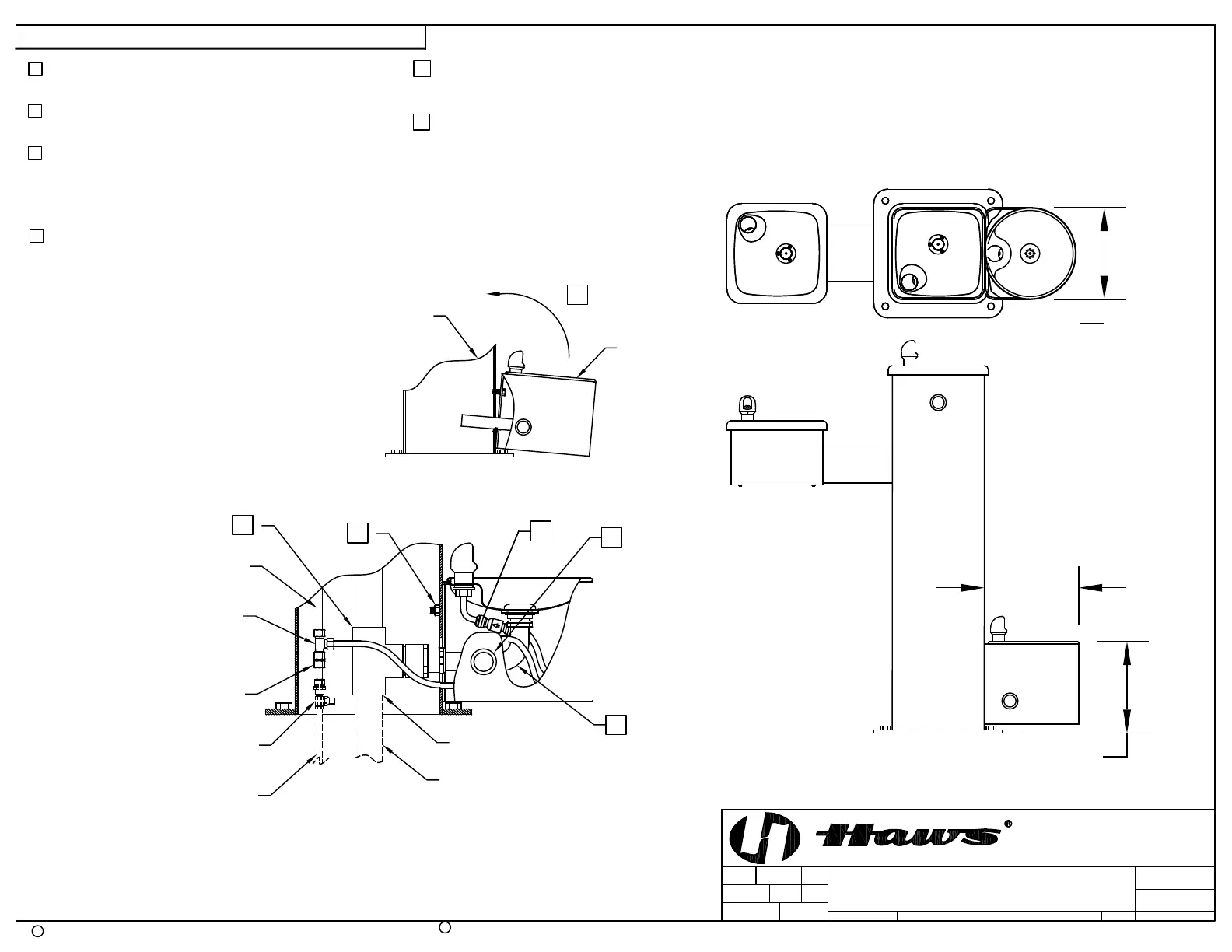

10"
PEDESTAL
DOG BOWL
ROTATE
4
9 A CHECK VALVE IS INSTALLED IN THIS
LOCATION TO PREVENT CROSS
CONNECTION BETWEEN BUBBLERS.
4 SLIDE DOWELS ON DOG BOWL INTO
HOLES OF PEDESTAL AND ROTATE UPWARD.
5 INSTALL 7/16-14UNC NUT ON STUD
AND TIGHTEN 3/4 TURN PAST HAND TIGHT.
6 BOND JOINTS WITH PVC CEMENT AND PRIMER.
7. APPLY SUPPLY HOSE AND WASTE LINE.
8. TEST SYSTEM AFTER ASSEMBLY.
*NOTE: TEE SHOWN ASSEMBLED FOR REFERENCE ONLY.
POSITION TEE AND TRIM TUBING AS NEEDED TO FIT
INSTALLATION APPLICATION.
10 NOTE: DRAINAGE ASSEMBLY SLIDES VERTICALLY ON HOLDER.
UPON COMPLETION OF INSTALLATION, PUSH UP ON BOTTOM OF
ELBOW TO ENSURE POSITIVE DRAINAGE OF WASTE.
3
CONNECTOR*
(SUPPLIED)
3/8" O.D. SUPPLY TUBING
(NOT SUPPLIED)
TEE*
(SUPPLIED)
3/8" O.D. TUBING
TO FTN VALVE*
(SUPPLIED)
3X
6
WASTE
(NOT SUPPLIED)
10
5
9
9 3/8"
10 1/4"
1/2" NPT
SCREWDRIVER STOP
(NOT SUPPLIED)
1-1/2" SLIP PVC
APPROVED:
DRAWN:
PART NUMBER
SCALE:
SHEET OF
REVISION
DRAWING TYPE: SIZE: A
BY:ECN NO.
PAGE
DATE:
DATE:
ECN:
REVISED PER
CHK'D.:
Haws Corporation - All Rights Reserved.
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
M.F.
06-06-00
16
0002077448.D
3500/3500D
.
1:12
22
FV
11/22/17
.
GC
5 OF 5
INSTALLATION
5253
2017
JP
MODEL 3500D SHOWN
(SEE SHEET 1 FOR MODEL 3500)
11 MOUNTING HARDWARE NOT SUPPLIED. SEE PARTS BREAKDOWN
DRAWING FOR HARDWARE SUPPLIED WITH EACH OPTIONAL KIT.
