Haws 1212SFH handleiding
Handleiding
Je bekijkt pagina 13 van 21
1
8
6
22
23
4
3
2
5
7

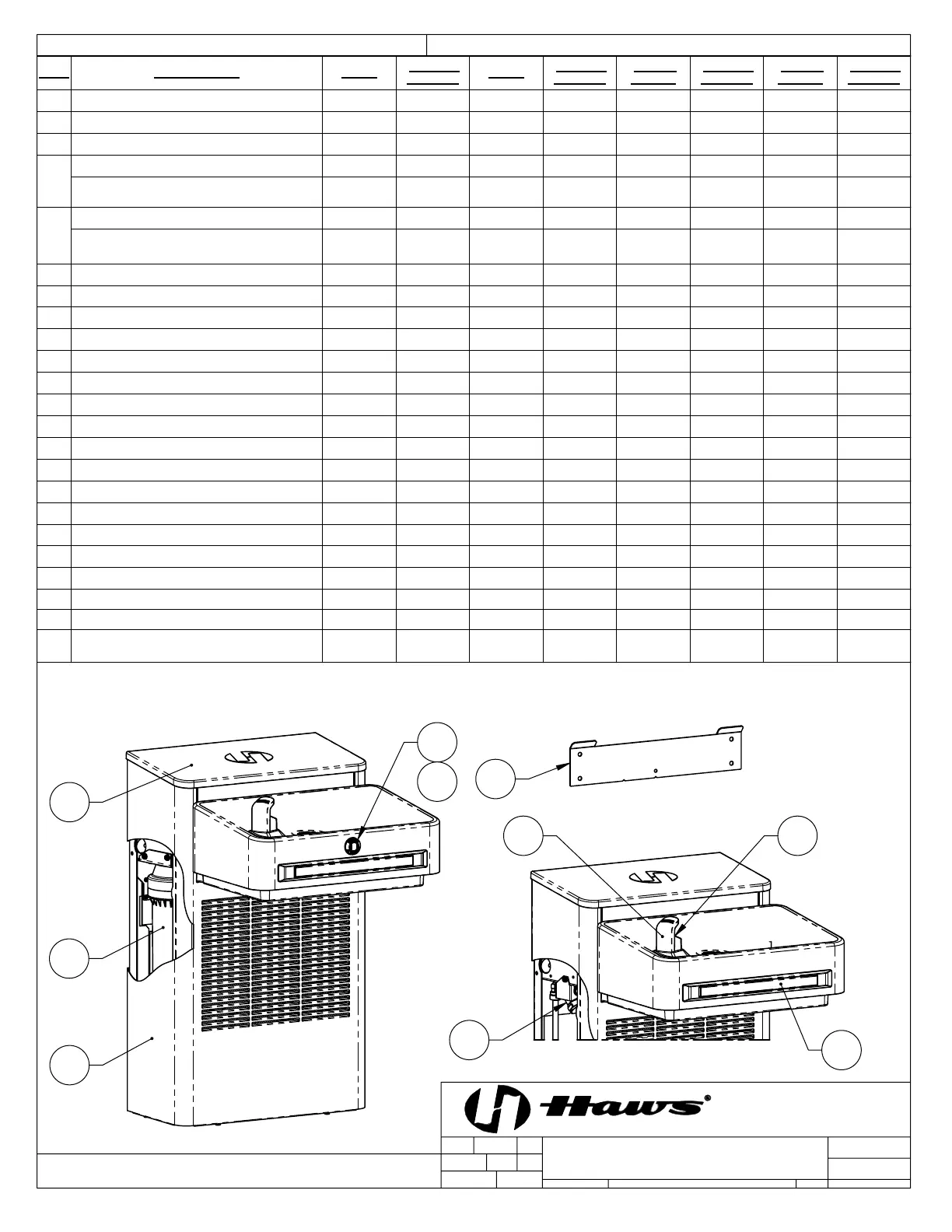

PAGE 13 OF 21
PARTS BREAKDOWN VIEWS ARE REPRESENTATIVE ONLY. YOUR MODEL MAY VARY.
SEE NEXT SHEET FOR ADDITIONAL PARTS.
ITEM
DESCRIPTION
1201S
1201SF/
1201SFH
1202S
1202SF/
1202SFH
1211S/
1211SH
1211SF/
1211SFH
1212S/
1212SH
1212SF/
1212SFH
1
FILTER
6428 6428 6428 6428
2
Y-STRAINER
6437 6437 6437 6437
3
PUSH BUTTON ASSEMBLY
PBA10 PBA10 PBA10 PBA10 PBA10 PBA10 PBA10 PBA10
4
BUBBLER HEAD (FLEXIBLE)
5715 5715 5715 5715 5715 5715 5715 5715
BUBBLER HEAD (OPTIONAL VANDAL-
RESISTANT STAINLESS STEEL)
5716 5716 5716 5716 5716 5716 5716 5716
5
BUBBLER NOZZLE (PLASTIC)
RK5715 RK5715 RK5715 RK5715 RK5715 RK5715 RK5715 RK5715
BUBBLER NOZZLE (OPTIONAL
STAINLESS STEEL)
RK5716 RK5716 RK5716 RK5716 RK5716 RK5716 RK5716 RK5716
6
EWC CAP
0410000282 0410000282 0410000282 0410000282 0410000282 0410000282
7
EWC MOUNTING BRACKET
0410000264 0410000264 0410000264 0410000264 0410000264 0410000264 0410000264 0410000264
8
SINGLE EWC SKIRT
SK11 SK11 SK11 SK11
9
HI-LO EWC LOWER SKIRT
SK13 SK13 SK13 SK13
10
HI-LO EWC UPPER SKIRT
SK12 SK12 SK12 SK12
11
FEED-THROUGH COVER
0410000280 0410000280 0410000280 0410000280
12
SOLENOID VALVE
5876 5876 5876 5876 5876 5876 5876 5876
13
FAN BLADE
HC111 HC111 HC111 HC111 HC111 HC111 HC111 HC111
14
FAN MOTOR
HC117 HC117 HC117 HC117 HC117 HC117 HC117 HC117
15
THERMOSTAT
5810 5810 5810 5810 5810 5810 5810 5810
16
COMPRESSOR THERMAL PROTECT
HC115 HC115 HC115 HC115 HC115 HC115 HC115 HC115
17
COMPRESSOR START RELAY
HC116 HC116 HC116 HC116 HC116 HC116 HC116 HC116
18
BOTTLE FILLER DRAIN BASIN
0410000286 0410000286 0410000286 0410000286
19
BOTTLE FILLER ASSEMBLY
1930 1930 1930 1930
20
BOTTLE FILLER NOZZLE
VRKNOZ1 VRKNOZ1 VRKNOZ1 VRKNOZ1
21
BOTTLE FILLER MOUNTING BRACKET
0410000265 0410000265 0410000265 0410000265
22
BOWL SENSOR (H MODELS ONLY)
0210000998 0210000998 0210000998 0210000998 0210000998 0210000998
23
BOWL SENSOR BEZEL (H MODELS
ONLY)
0310000364 0310000364 0310000364 0310000364 0310000364 0310000364
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT
IMPROVEMENTS MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
APPROVED:
DRAWN:
PART NUMBER
SCALE:
REVISION
JL
07/25/18
6
12XX ELECTRIC WATER COOLERS
1:8
TM
09/29/20
DRAWING TYPE:
SIZE: A
5343
BY:
DHP
PARTS BREAKDOWN
DATE:
DATE:
REV. ECN:
5595
CHK'D.:
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (775) 359-7424
E-MAIL: HAWS@HAWSCO.COM
WEBSITE: WWW.HAWSCO.COM
DHP
ECN:
WHEN ORDERING PARTS, PLEASE
SPECIFY PART NUMBER
SHEET 1 OF 2
0510000866
© 2020 Haws Corporation - All Rights Reserved.
HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
