12
KWMM-1222
English
5. Remove the thumb nut from one side of the hinge pin.
6. Remove the hinge pin from the hinges on both waffle
plates. Note how the waffle plate hinges are positioned
together for reassembly.
Thumb
Nut
Hinge Pin
Rear View

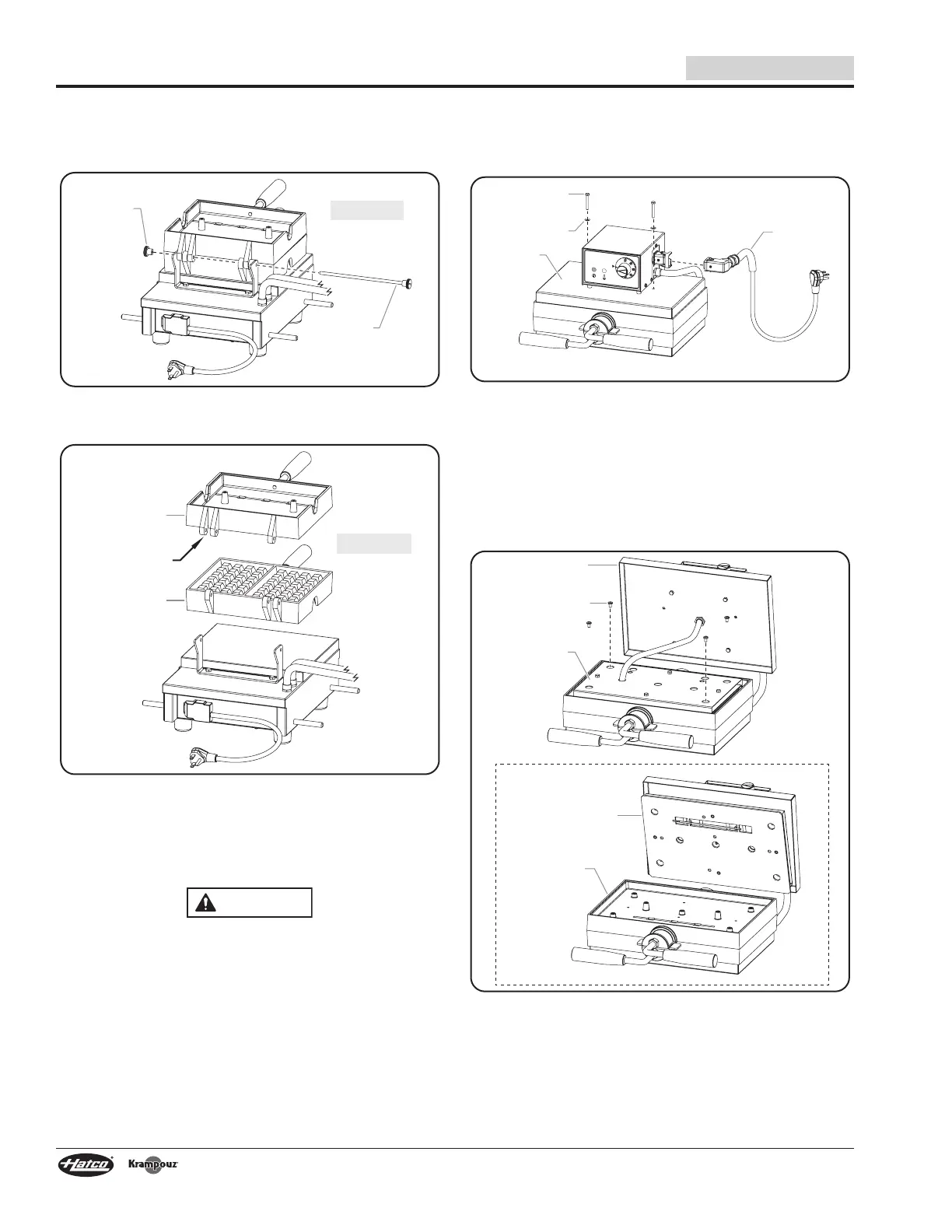

Removing the Thumb Nut and Hinge Pin
(KWM09 model shown)
7. Remove the waffle plates.
Top
Waffle Plate
Bottom
Waffle Plate
Hinges
Rear View
Removing the Waffle Plates
(KWM09 model shown)
Swivel Models
Use the following procedure to remove swivel waffle plates for
cleaning.
CAUTION
BURN HAZARD: Allow unit to cool before performing any
cleaning, adjustments, or maintenance .
1. Turn the Temperature Control fully counterclockwise to the
“off” position, unplug the power cord, and allow the unit to
cool.
2. Disconnect the detachable power cord from the control box
mounted to the top waffle plate.
3. Lift the entire waffle maker off of the stand.
4. Remove the top heating element assembly.
a. Using a hex screwdriver, remove the two hex screws
from the top element cover.
Power
Cord
Hex
Screw
Washer
Top
Element
Cover
Removing the Top Element Cover
b. Lift the top element cover and control box off of the top
waffle plate and set aside. The power coils still will be
attached between the control box and both element
assemblies.
c. Remove the four, recessed Phillips-head screws from
the top heating element assembly, one on each corner.
d. Lift the top heating element assembly off of the top waffle
plate and set aside with the top element cover.
Top Heating
Element
Assembly
Top Waffle
Plate
Screw
Top Element
Cover
Top Heating
Element
Assembly
Removing the Top Heating Element Assembly
5. Flip over the waffle plates so that the bottom heating
element assembly is exposed.
MAINTENANCE
