A Power Inlet

– Power inlet for connecting

the option AD006 power adapter.

B PHANTOM ON / GROUND LIFT switch

- Use to switch between phantom power

or battery operation, and/or Ground Lift/

Connect.

C LINE OUTPUT

- 1/4-inch jack carrying the

line-level output signal, either affected or

un-affected, depending on the Pre/Post

switch.

D PRE/POST switch

– When the switch is

out, the Direct Output signal is a parallel

output of the input, with no effects. When

the switch is pressed in, the Direct Output

signal is with effects.

E DIRECT OUTPUT

- XLR balanced output

connector carrying the mic-level output

signal, either affected or un-affected,

depending on the Pre/Post switch.

F PARALLEL OUTPUT -

Standard 1/4-inch

output jack for sending the original signal

to an on-stage amplifier.

G INPUT

– Standard 1/4-inch input jack for

connecting a passive or active bass.

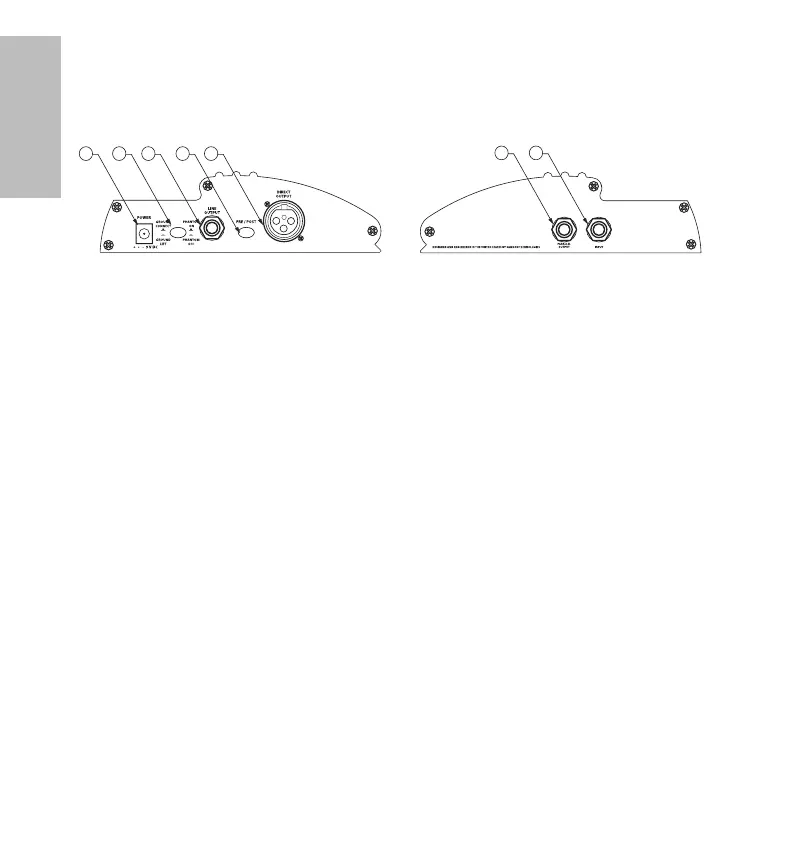

Bass Attack Side Panel Layout

6

ENGLISH
