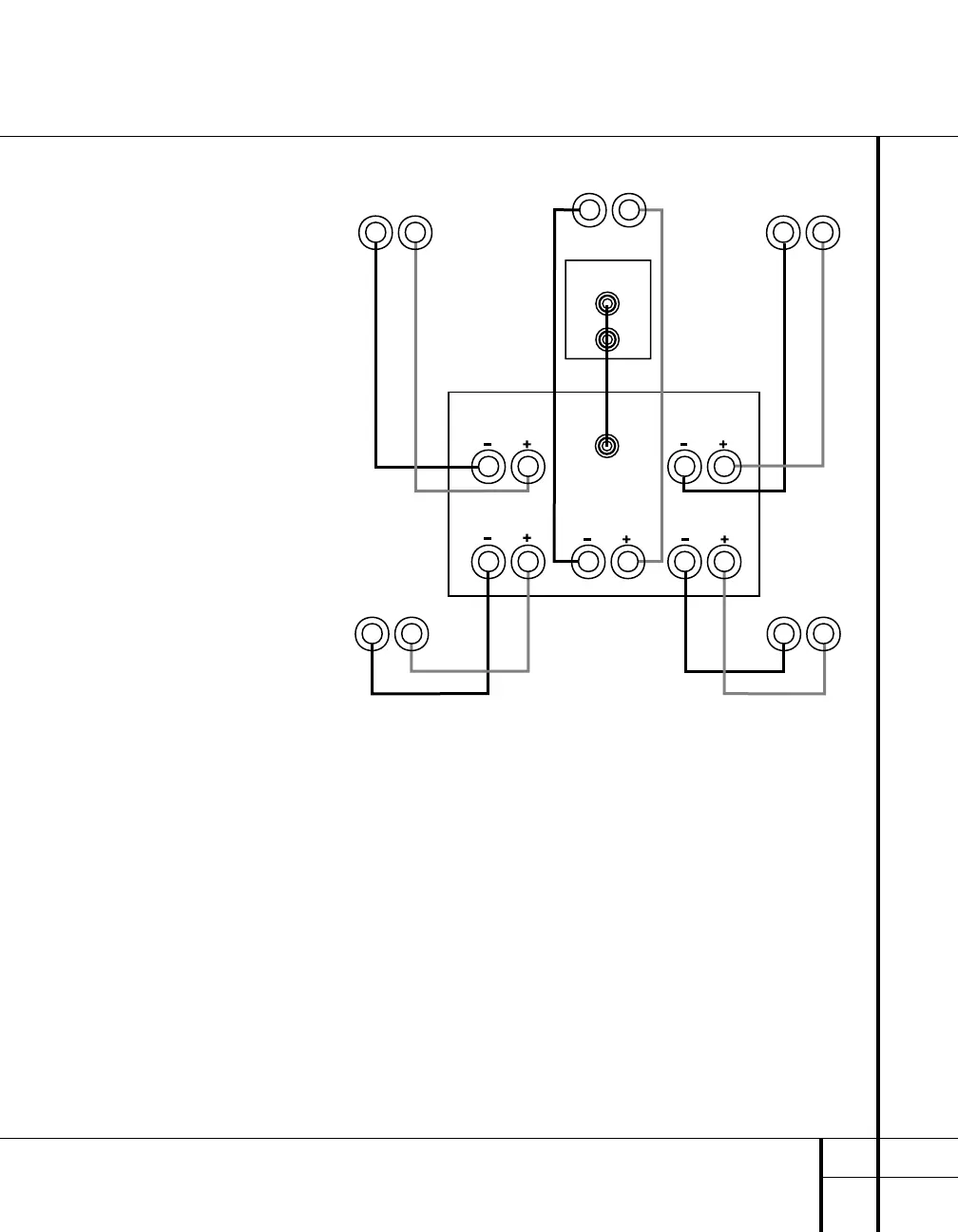

SPEAKER CONNECTIONS (continued)
11
Receiver
SUB/LFE
Out
Front
Left
Surround
Left
Front
Right
Surround
Right
SUB-TS10
Subwoofer
Center
Line-Level
L
R
Surround
Right
Front
Right
Surround
Left
Front
Left
Center
– +
– +
– +
– +
– +
Dolby Pro Logic
(Non-Digital) – Line Level
USE THIS INSTALLATION METHOD FOR
DOLBY PRO LOGIC APPLICATIONS (NOT
DOLBY DIGITAL, DTS OR OTHER DIGITAL
PROCESSING), WHERE THE RECEIVER/
PROCESSOR IS EQUIPPED WITH A SUB-
WOOFER OUTPUT, OR A VOLUME-
CONTROLLED PREAMP (LINE-) LEVEL
OUTPUT:
Use the supplied RCA-type patch cord to
connect the
line-level subwoofer output on
your receiver
or amplifier to either the left or
right
Line-Level Full-Range Input ¢ on
the SUB-TS10 subwoofer. Use both the left
and right inputs on the subwoofer if your
receiver or processor has both left and right
line-level outputs.
If your receiver is equipped with line-level
outputs but does not have a separate sub-
woofer output, use a Y-adaptor (not supplied)
to bridge the receiver’s preamp output to the
main amp input for that channel, and connect
the long end of the adaptor to the corre-
sponding line-level input on the SUB-TS10.
IMPORTANT: Do not use the SUB Input £
on the subwoofer with Dolby Pro Logic
processors. Make sure that you have config-
ured your surround sound processor for
“Subwoofer On.” The front left, front right,
center and rear surround speakers should
all be set to “Small.”
When all connections have been made, plug
the AC power cord on the subwoofer into
an AC outlet.
Connect each speaker to the corresponding
speaker terminals on your receiver or amplifier.
