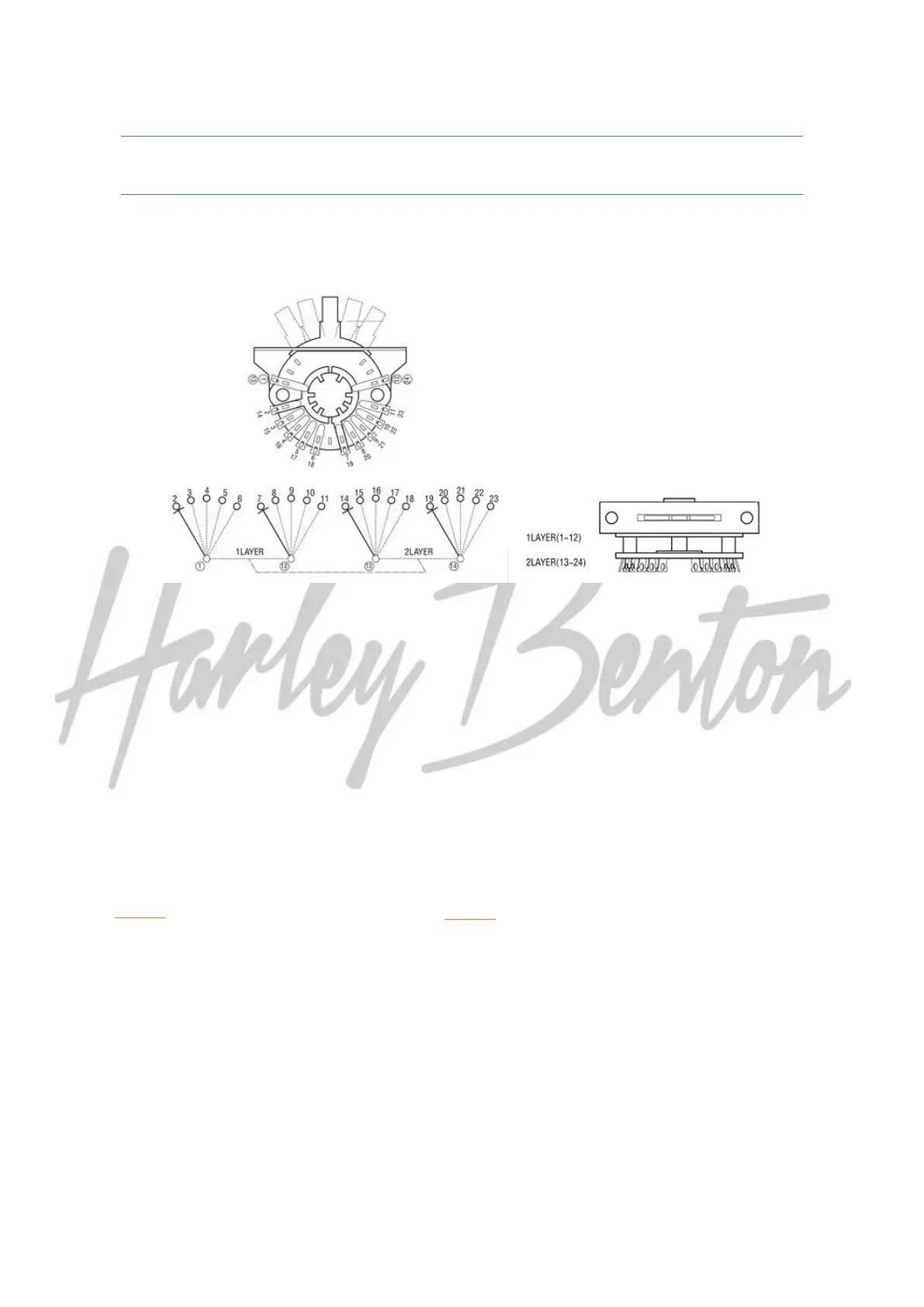

Harley Benton 538910 Multi Lever Switch Wiring Manual
✓ This manual is written based on Green: HOT / Red+White: SPLIT / Black+Shield: GROUND
✓ All parts should be connected with “GROUND”
1. TWO HUMBUCKERS (HH)
2 Humbucker pickups (Parallel connection) and 1 Volume.
Pickup combinations
Bridge humbucker full
Bridge humbucker split (inner coil)
Bridge and neck humbuckers full
Neck humbucker split (inner coil)
Neck humbucker full
✓ 1 LAYER
1 Connect with pin 13
2 Bridge pickup “HOT”
3 Bridge pickup “HOT”
4 Bridge pickup “HOT”
8 Bridge pickup “SPLIT”
12 GROUND
✓ 2 LAYER
13 Volume
16 Neck pickup “HOT”
17 Neck pickup “HOT”
18 Neck pickup “HOT”
22 Neck pickup “SPLIT”
24 GROUND
