20_ bullet camera
bullet camera

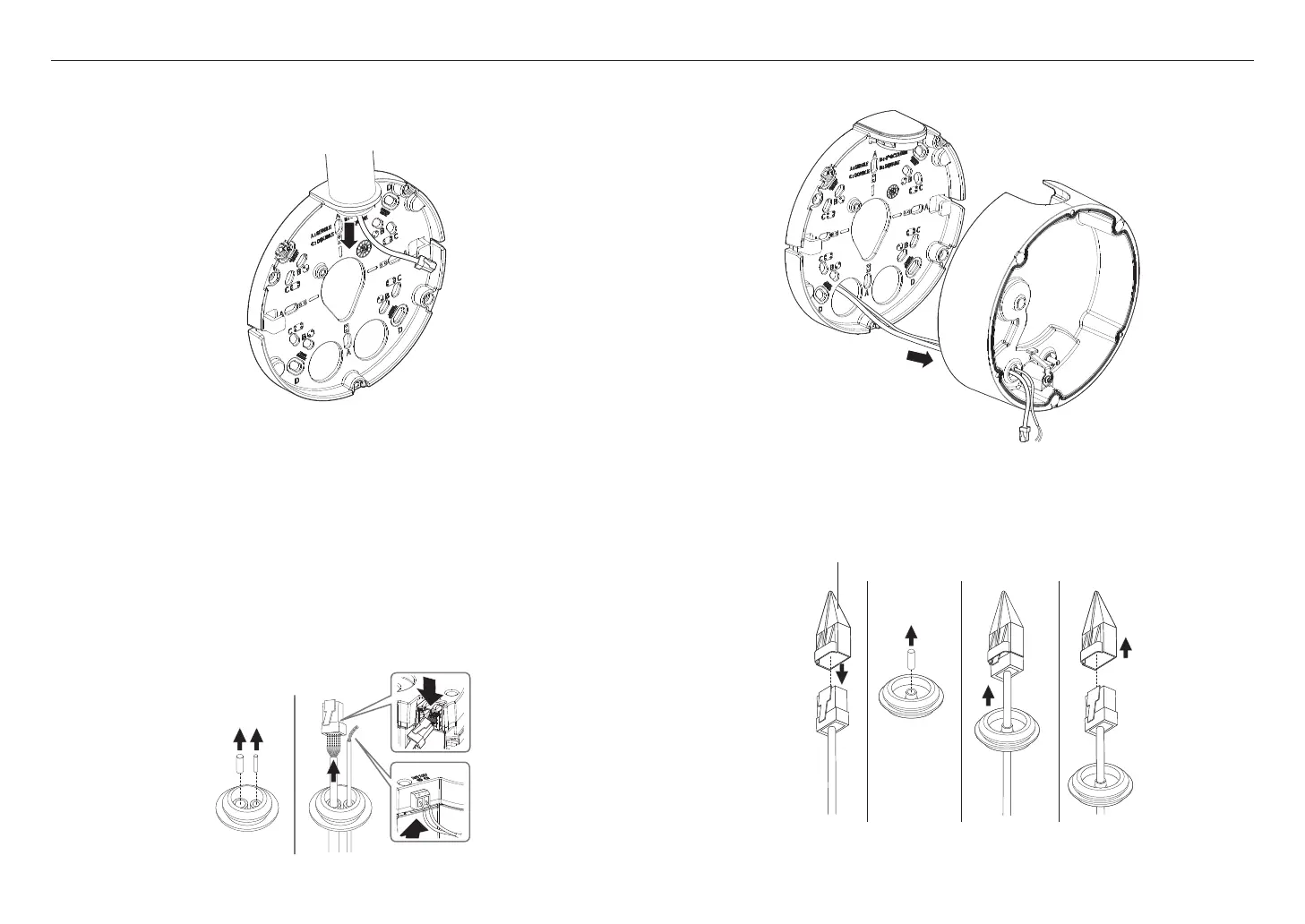

2-3. Place the pipe on the Mount plate.
2-4. Fix the Mount plate using appropriate screws.
2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe.
Installation (Bottom cover)
J
`
Use a cable bushing compliant with the network cable to be connected.
-
Camera main: use a cable with the diameter of Ø5 to 6.5
-
Components: use a cable with the diameter of Ø5 to 8.5
[Installing network/power cables]
1-1. Pull off the extruded parts of the cable bushing to be used.
1-2. Route the network cable through the big hole of the cable bushing and connect to the network cable
connector.
1-3. (When using the power) Route the power cable through the small hole of the cable bushing and connect
it to the provided terminal block.
1-4. Mount the cable bushing to the Bottom cover.
[Installing the network cable]
2-1. Pull off the extruded part of the 1-hole cable bushing provided.
2-2. Use the cap installer to pass through the RJ45 cable.
Cap Installer
