12_ vandal dome camera
vandal dome camera

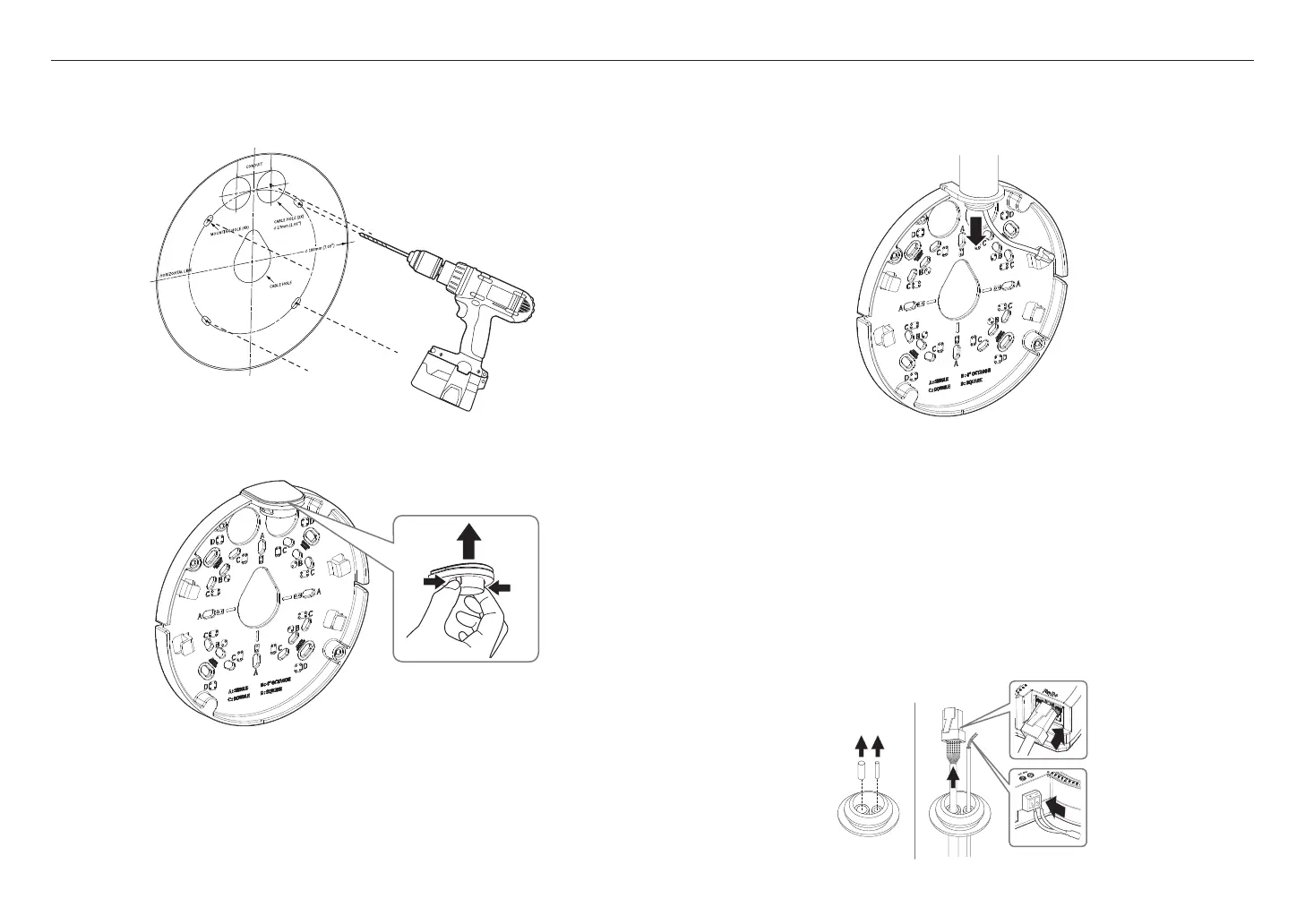

[Installing using pipe]
2-1. Attach the installation template and drill holes for screws and cables.
2-2. Separate the pipe cover of the mount plate by pressing its sides.
2-3. Place the pipe on the mount plate.
2-4. Fix the mount plate using appropriate screws.
2-5. Pull out necessary cables among network/power/audio/alarm cables through the pipe.
Installation (camera case)
J
`
Use a cable bushing compliant with the network cable to be connected.
-
Camera main: use a cable with the diameter of Ø5 to 6.5
-
Components: use a cable with the diameter of Ø5 to 8.5
[Installing network/power cables]
1-1. Pull off the extruded parts of the cable bushing to be used.
1-2. Route the network cable through the big hole of the cable bushing and connect to the network cable
connector.
1-3. (When using the power) Route the power cable through the small hole of the cable bushing and connect
it to the provided terminal block.
