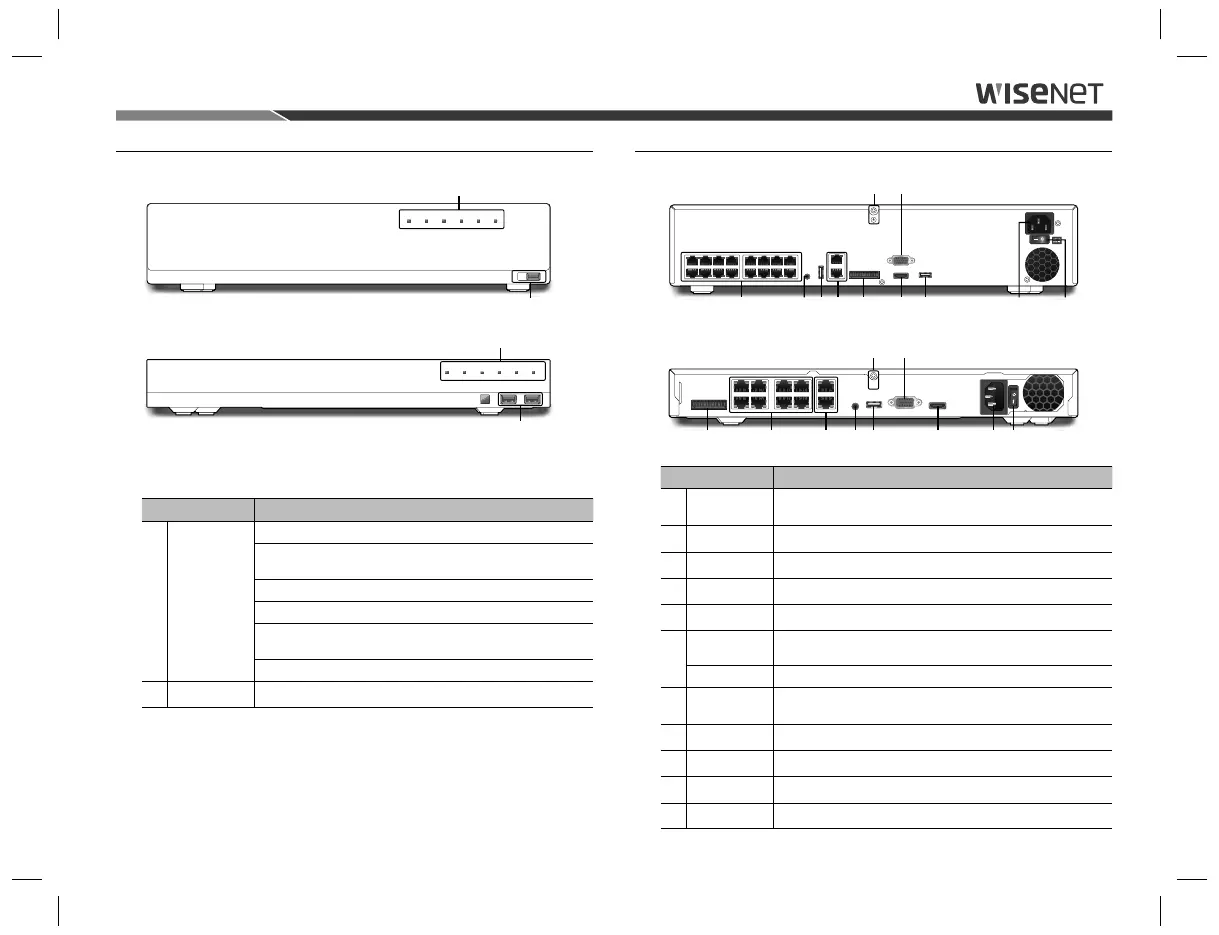

overview
PART NAMES AND FUNCTIONS (FRONT)
WRN-1610S
WRN-810S
Part Names Functions
LED Indicator
REC : Lights on when recording is in progress.
HDD : Displays the normal access to HDD.
LED turns on when accessing the hard disk.
ALARM : Lights on when an event occurs.
NETWORK : Displays both network connection and data transfer status.
PoE OVER :
LED will be turned on if PoE power exceeds 200 W/100 W
(WRN-1610S/WRN-810S).
POWER :
Shows the power ON/OFF status.
b
USB
Connects the USB devices. (USB 2.0 supported)
USB
b
b
PART NAMES AND FUNCTIONS (REAR)
WRN-1610S
WRN-810S
Part Names Functions
Ground connection
Terminal to connect a separate ground cable.
` Add a ground cable to support the safe use of the device.
b
VGA OUT
VGA Video Signal Output Port.
c
PoE (CAMERA)
Power supply port to connect to a camera.
AUDIO OUT
Audio Signal Output Port (Stereo jack).
USB
Connects the USB devices. (USB 2.0)
NETWORK1
Port recommended for camera connection, which receives an image from the camera.
(USB Ethernet - UBUNTU)
NETWORK2
Port recommended for connection with a network.
(PCI Ethernet - UBUNTU)
ALARM
- ALARM IN : Alarm input ports. (1~4 CH)
- ALARM OUT :
Alarm output ports. (1~2 CH)
HDMI
HDMI connector port.
USB 3.0
Connects the USB devices. (USB 3.0 supported)
Power
Terminal to connect power to.
Power Switch
Power on/off switch.
c
b
b
c
