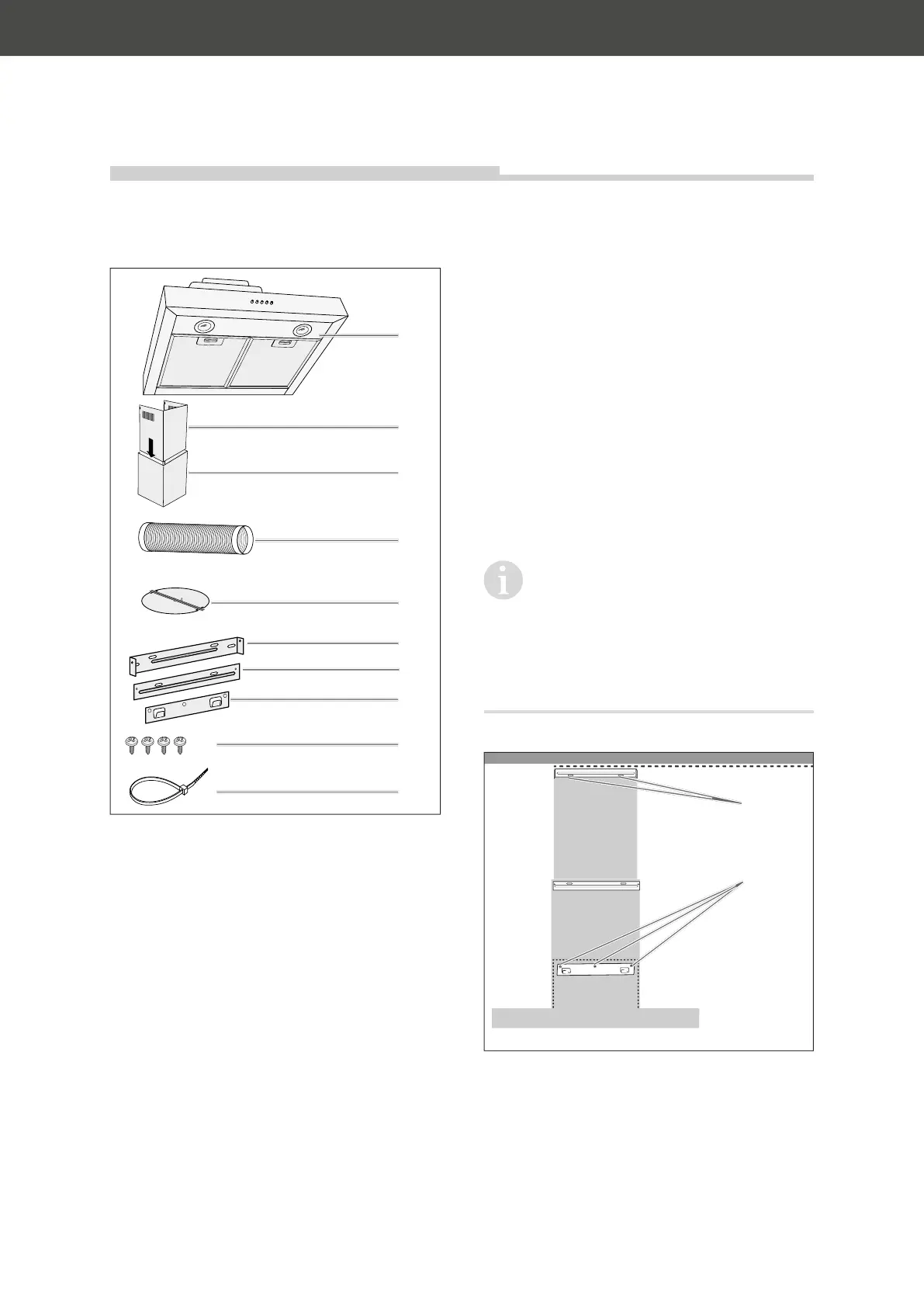

Materials required for assembly

Page EN-13

Materials required for assembly

Parts list

(1)

(3)

(2)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(1) Exhaust hood

(2) Upper section of the duct cover

(3) Lower section of the duct cover

(4) Exhaust air operation: Exhaust air hose

(5) Check valve

(6) Wall mount for upper duct cover

(7) Retaining plate for lower duct cover

(8) Wall mount for exhaust hood

(9) 4 plate screws 4.0 × 8 mm

(10) Cable ties

Tools and aids

You will need:

– Screwdriver

– Drill with a stone bit that is suitable for the

screws (11) and (12)

– Measuring tape / ruler

– Level

– Pencil

– Stable stepladder

– A second person to help

– Work gloves

Screws

The screws and wall plugs required to

mount the appliance on a wall are not

included in the package contents as

their type and dimensions will vary depend-

ing on the characteristics of the wall.

Please have a specialist advise you as to

which ones you need.

(11)

(12)

In total, you will need

– 2 round-head screws (11) to attach the wall

bracket (6) for the upper duct cover (2)

– 3 countersunk screws (12) to attach the

wall bracket (8) for the exhaust hood (1),

ø 6 mm maximum
