Assembly

Page EN-15

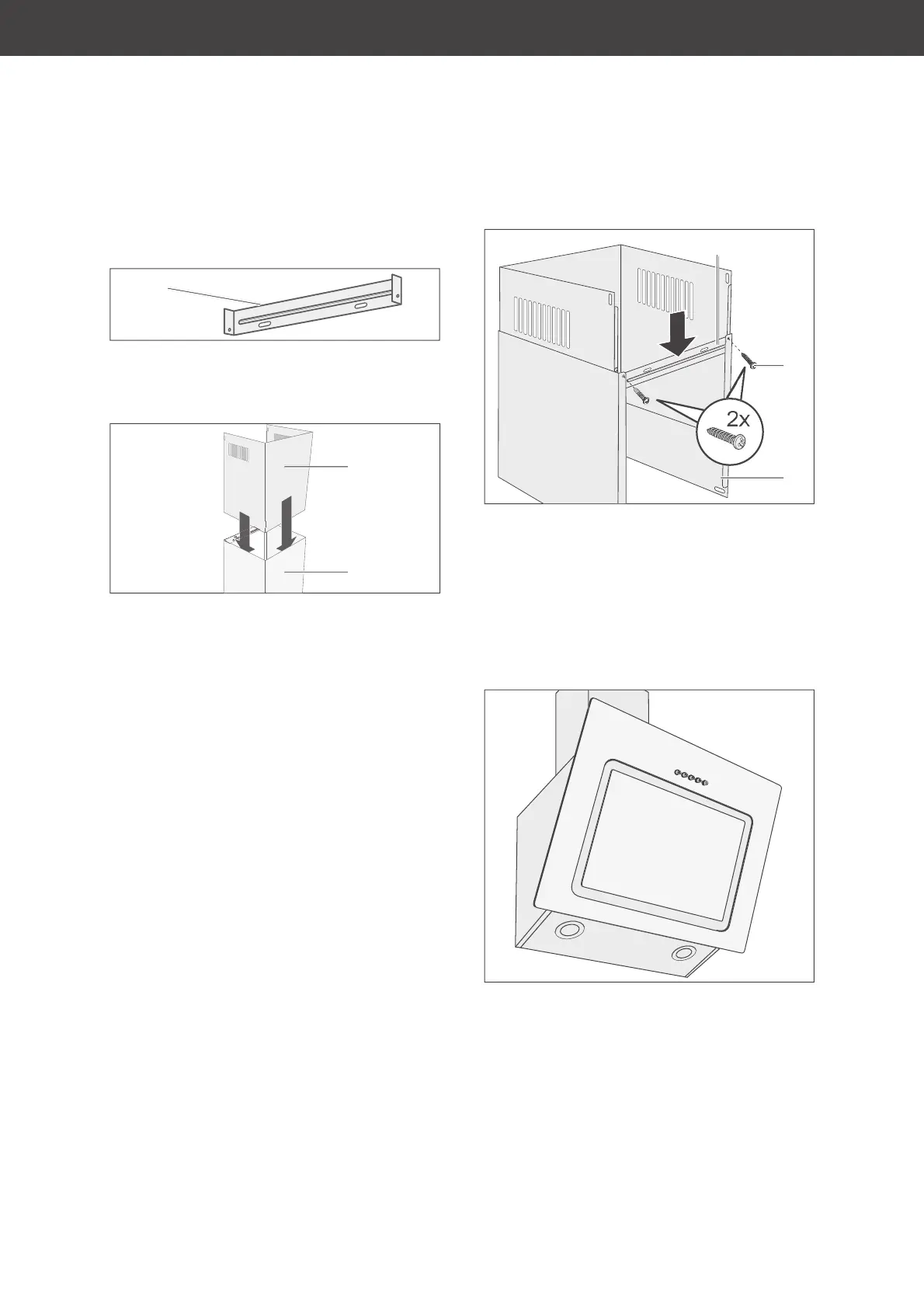

Installing the flue screen

(6)

1. Screw the wall bracket for the upper flue

screen (6) into the prepared wall plugs us-

ing 2 round-head screws (10).

(2)

(3)

2. Push the upper part (2) of the flue screen

halfway into the lower part (3) of the flue

screen.

(7)

(3)

(8)

3. Place the retaining plate (7) onto the lower

flue screen (3) so that it lines up with the

chamfers on the inside. (Screws and elon-

gated holes should point upwards).

4. Turn two plate screws (8) from the outside

through the retaining plate (7) and the

lower flue screen (3). Tighten the screws

somewhat, but only loosely.

5. Place both parts (2) and (3) of the flue

screen onto the exhaust hood (1), with the

closed side of the flue screen facing for-

ward.
