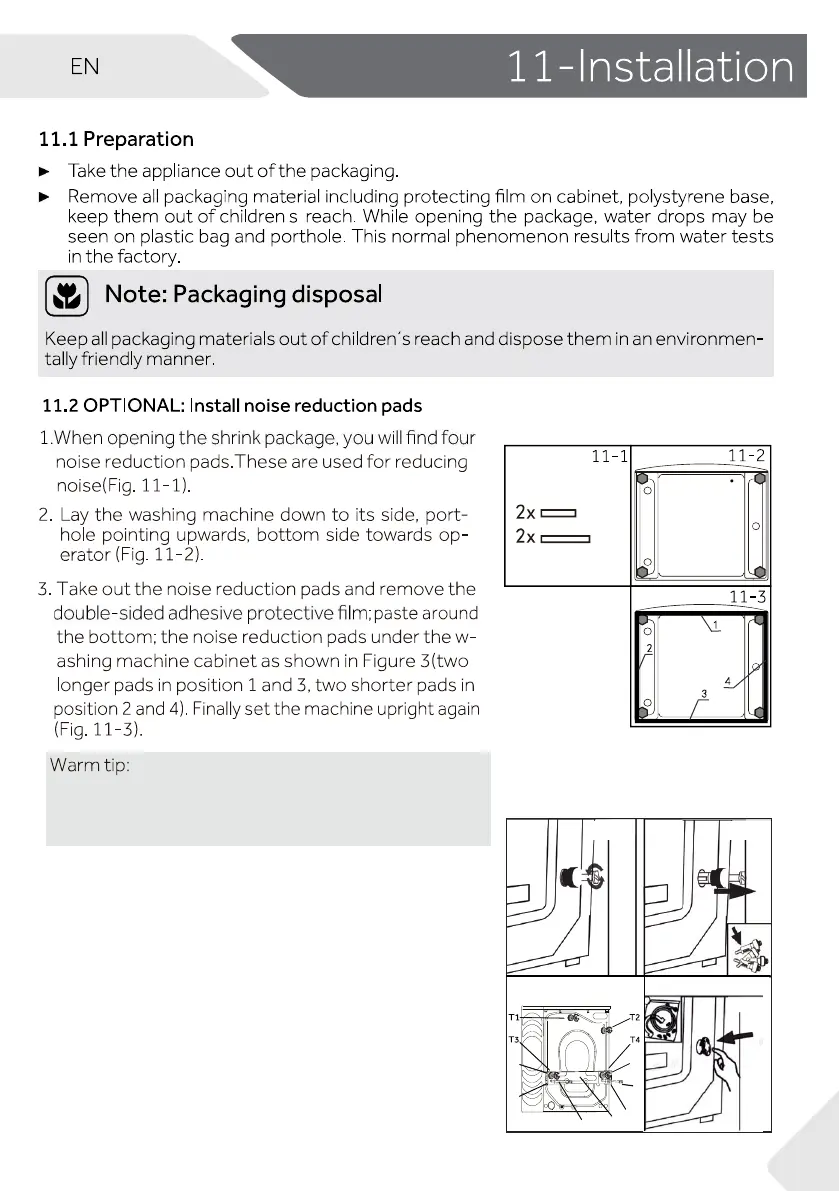

11.3 Transportation bolts removal
Noise reduction pad is optional, which could help to
reduce noise. Please assemble it or not accoording
to your own demand.
’
33
All elements (T, R, S and I, Fig. 11-6) must be removed
1. Remove all 4 bolts (T1 ‑ T4) (Fig. 11-4)(Fig. 11-5).
3. Fill the 6 holes with blanking plugs (Fig. 11-7) .
2. Remove the 4screws (R1 - R4) from lower back rein-
reinforcement (S) from the ma-
before use.
forcement, take out
chine ,Pull out the 2 iron bars(I1-I2) (Fig. 11-6) .
11-4
R3
S
R1
R2
I2
I1
R4
11-5
11-6
11-7
