49-2000492 Rev. 2 15
INSTALLATION INSTRUCTIONS
C
DETERMINING MOUNTING PLATE LOCATION UNDER YOUR CABINET
Installation Instructions
Your cabinets may have decorative trim that
interferes with the unit installation. You may need
to remove the decorative trim to install the unit
properly and to make it level.
THE KITCHEN HUB™ MUST BE LEVEL.
Use a level to make sure the cabinet bottom is
level.
If the cabinets have a front overhang, install the
mounting plate down the same distance as the front
overhang depth. This will keep the unit level.
1. Measure the inside depth of the front overhang.
2. Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
3. For this type of installation with front overhang,
align the mounting tabs with this horizontal line,
not touching the cabinet bottom as described in
Step D.

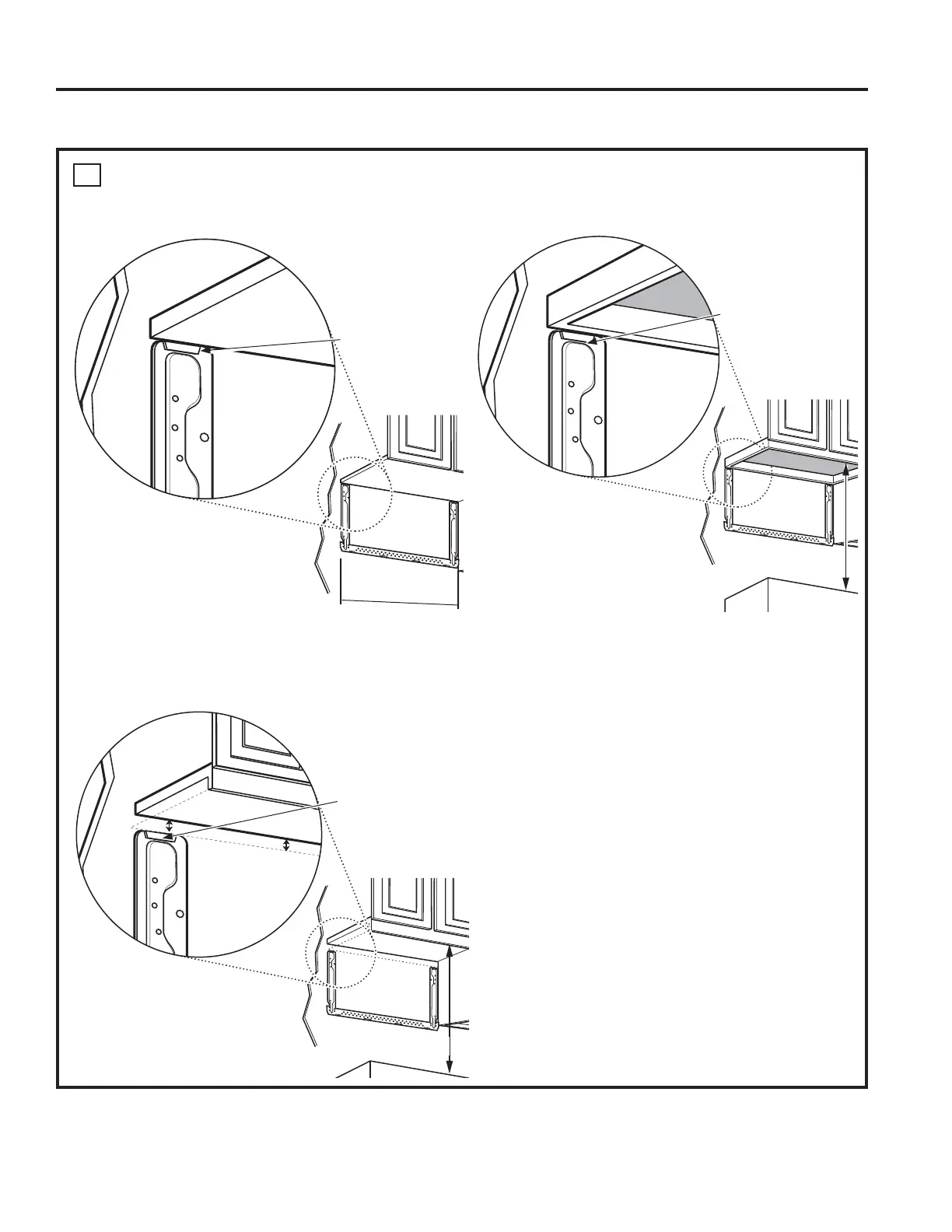

Plate Position – flat bottom cabinet
Plate Position – cabinet with front overhang
Mounting Plate
Tabs Touching
the Cabinet
Bottom
Mounting Plate
with Tabs Below
Cabinet Bottom the
Same Distance as
the Front Overhang
Depth
ƎWR&RRNWRS
At least 30"
Plate Position – recessed cabinet bottom
Mounting Plate
Tabs Touching the
Back Frame of the
Cabinet
ƎWR&RRNWRS
1. PLACEMENT OF THE MOUNTING PLATE (Cont.)
