12 49-2000492 Rev. 2
PARTS NEEDED FOR INSTALLATION
Ŷ 1 Wall or Roof Cap (for ducted venting only)
Ŷ All Metal Ductwork (for ducted venting only)

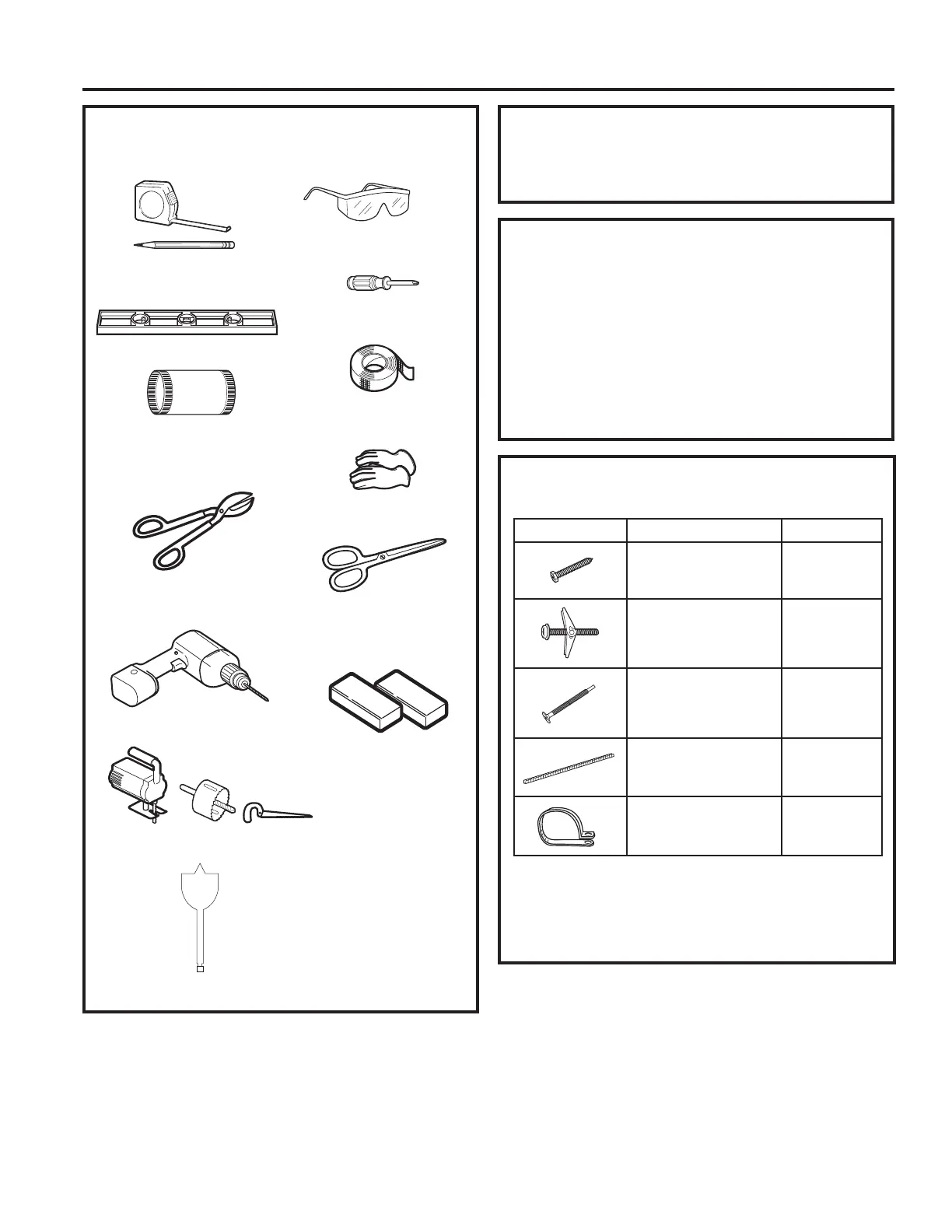

TOOLS AND MATERIALS REQUIRED
(NOT SUPPLIED)
Installation Instructions
Level
Aluminized
duct tape
Safety glasses
Phillips screwdriver
Electric drill with #2 Phillips bit
Rectangular duct and
adaptors as needed per
installation
(length will vary)
Pencil and tape measure
Gloves
Tin snips
Scissors (to cut
template, if necessary)
Saw (saber, hole or keyhole)
Drill bits: 2", 3/16", 5/8"
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed
bottom cabinet
installations only)
DAMAGE – SHIPMENT/INSTALLATION
• If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair or
replacement.
• If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer and
installer.
PARTS INCLUDED
HARDWARE PACKET
You will find the installation hardware contained in a
packet with the unit. Check to make sure you have
all these parts.
NOTE: Some extra parts are included.
PART QUANTITY
Wood Screws
(3/16” x 2”)
2
Toggle Bolts (and
wing nuts) (1/4” x 3”)
4
Self-aligning
Machine Screw
(1/4”-28 x 3-1/4”)
3
Nylon Grommet (for
metal cabinets)
2
Power Cord Strap
(plastic)
1
INSTALLATION INSTRUCTIONS
