6 31-5000493 Rev. 4

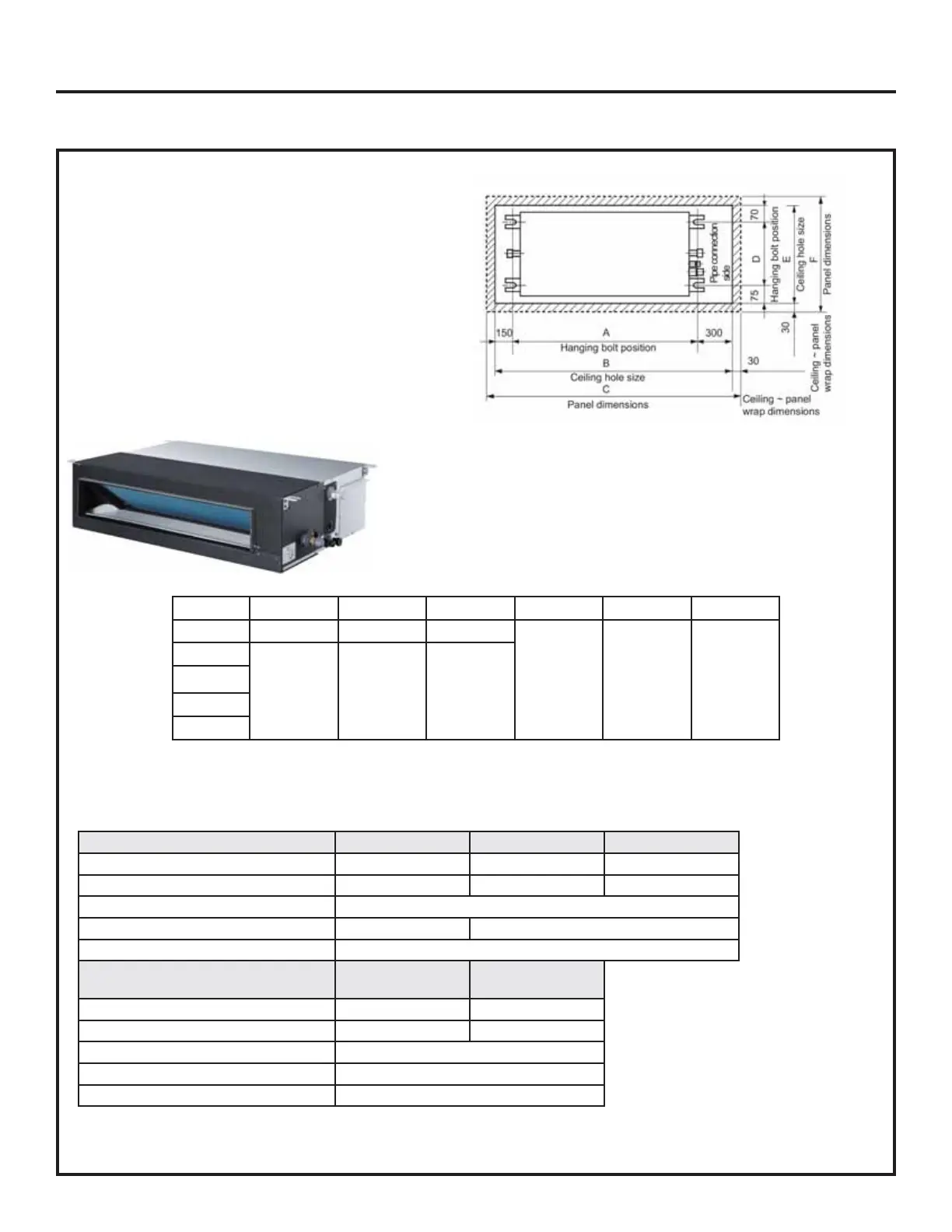

Installation Instructions: Introduction and Overview
Ducted Product Information
The Ducted unit will install above the ceiling or in a
soffit area. It is mounted using threaded rods that fit into
brackets that are located at all four top corners of the
cabinet.
Each unit has a built-in condensate pump and a float
switch to avoid an overflow situation and to maintain
reliable operation. An insulated condensate fitting is
included in the accessory pouch. This fitting connects the
condensate drain outlet of the unit to the field-supplied
drain piping.
When making refrigerant line connections, always use
the flare nuts provided with this equipment. Refrigerant
line connections should be wrapped with insulating tape
at the unit to prevent sweating.
Model A in (mm) B in (mm) C in (mm) D in (mm) E in (mm) F in (mm)
USYM24U 45.7 (1162) 63.5 (1612) 65.8 (1672)
24.4 (620) 30.1 (765) 32.5 (825)
USYM30U
61.5 (1562) 79.2 (2012) 81.57 (2072)
USYM36U
USYM42U
USYM48U
Indoor USYM24UCDDA USYM30UCDDA USYM36UCDDA
Rated Cooling Capacity Btu/hr 24,000 30,000 34,000
Rated Heating Capacity Btu/hr 26,000 32,000 36,000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1
$LUÀRZ7XUER+LJK0HG/RZ4XLHW&)0 927/844/667/564/482 1236/1130/953/812/688
Max. External Static Pressure in. W.G. (Pa) 0.6 (150)
Indoor USYM42UCDDA USYM48UCDDA
Rated Cooling Capacity Btu/hr 42,000 46,000
Rated Heating Capacity Btu/hr 45,000 48,000
Voltage, Cycle, Phase V/Hz/- 208-230/60/1
$LUÀRZ7XUER+LJK0HG/RZ4XLHW&)0 1412/1353/1141/965/847
Max. External Static Pressure in. W.G. (Pa) 0.6 (150)
