TROUBLESHOOTING & REFERENCES
Í¡%
ENGLISH
ÝÛØÞËÕÎÜÑØØÝÒ×ÐÏÕØàÌÑÊÛÝÜ
ÌëèæîÝëìöÏìõö÷

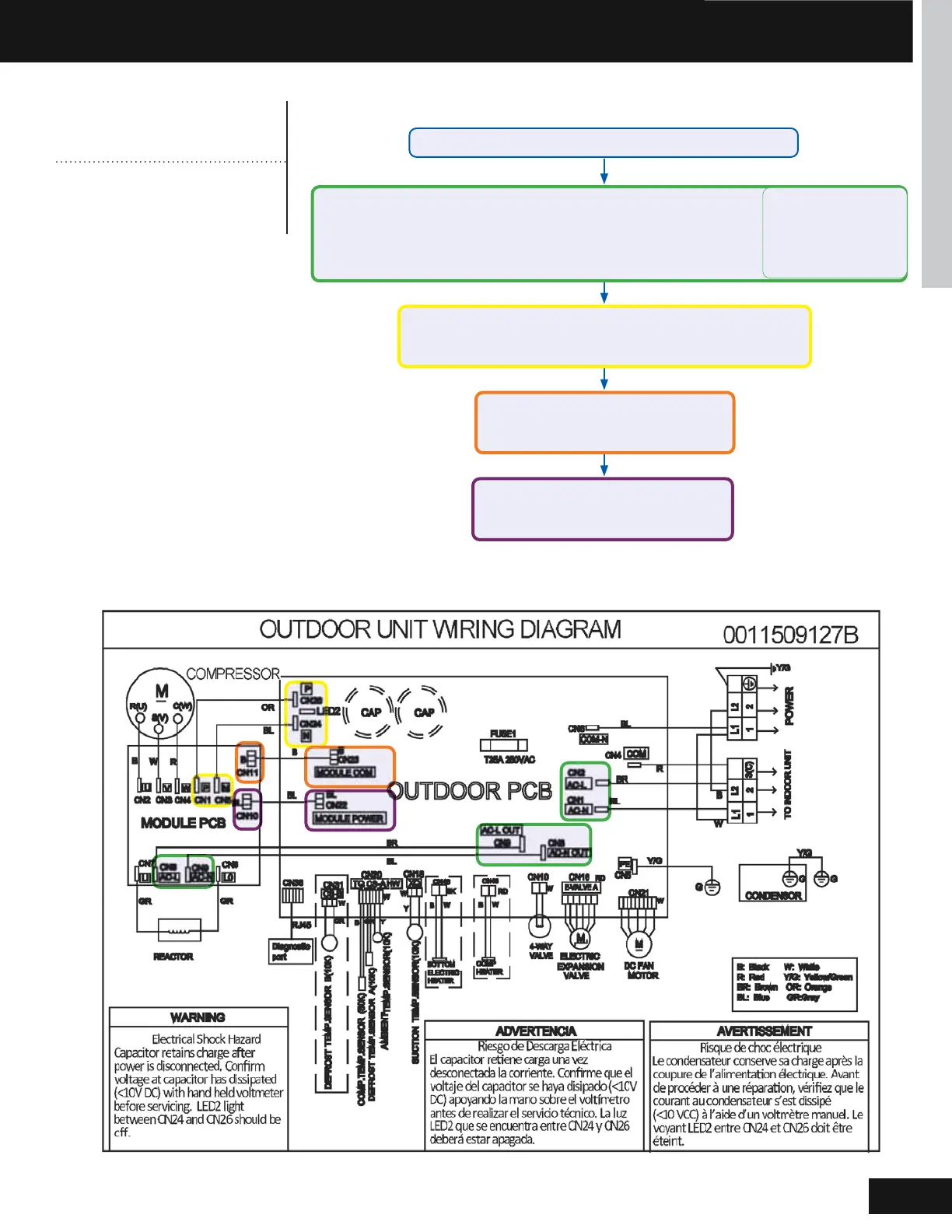

Outdoor Unit
Öòçèïö
1U09TE2HDA
1U12TE2HDA
àìõìñêÍìäêõäðÛèéèõèñæè
Ìòñçì÷ìòñö×èèçèçéòõËäöìæØóèõä÷ìòñ
3-minutes of time delay from the call for heating or cooling
Line voltage available at:
1. TERMINAL STRIP - 1(N) & 2 (L)
2. AC-L & AC-N at the PCB - CN2 & CN1
3. AC-L OUT & AC-N OUT at the PCB - CN8 & CN9
4. AC-L & AC-N at the IPM -CN8 & CN9 (9K) / CN1 & CN2 (12K)
310+ VDC available at:
1. P & N at the IPM - CN1 & CN5 (9K) / CN8 & CN9 (12K)
2. P & N at the PCB - CN24 & CN26
Module COM 5-G-15 VDC available at:
1. CN23 at the PCB
2. CN11 at the IPM
Module power 5-G-15 VDC available at:
1. CN22 AT THE PCB
2. CN10 AT THE IPM
• 1 (N) and 3 (C): 0-80
ßÊÌĥøæ÷øä÷ìñê
• 2 (L) and 3 (C):
0-140 VAC
ĥøæ÷øä÷ìñê
