Electrical Connections
L N
Terminal
Live: Brown
Earth: Green/Yellow
Neutral: Blue
Cable clamp
L N
● The appliance may be connected to the mains supply
only by a competent person.
● The mains lead must not be clamped, bent, trapped, or
come into contact with hot parts of the appliance.
● This oven must be earthed.
● Before connecting the oven to the mains power supply,
check that:
- The domestic wiring system is suitable for the power
drawn by the oven (as specified on the rating plate)
- The voltage corresponds to the value given on the rating
plate.

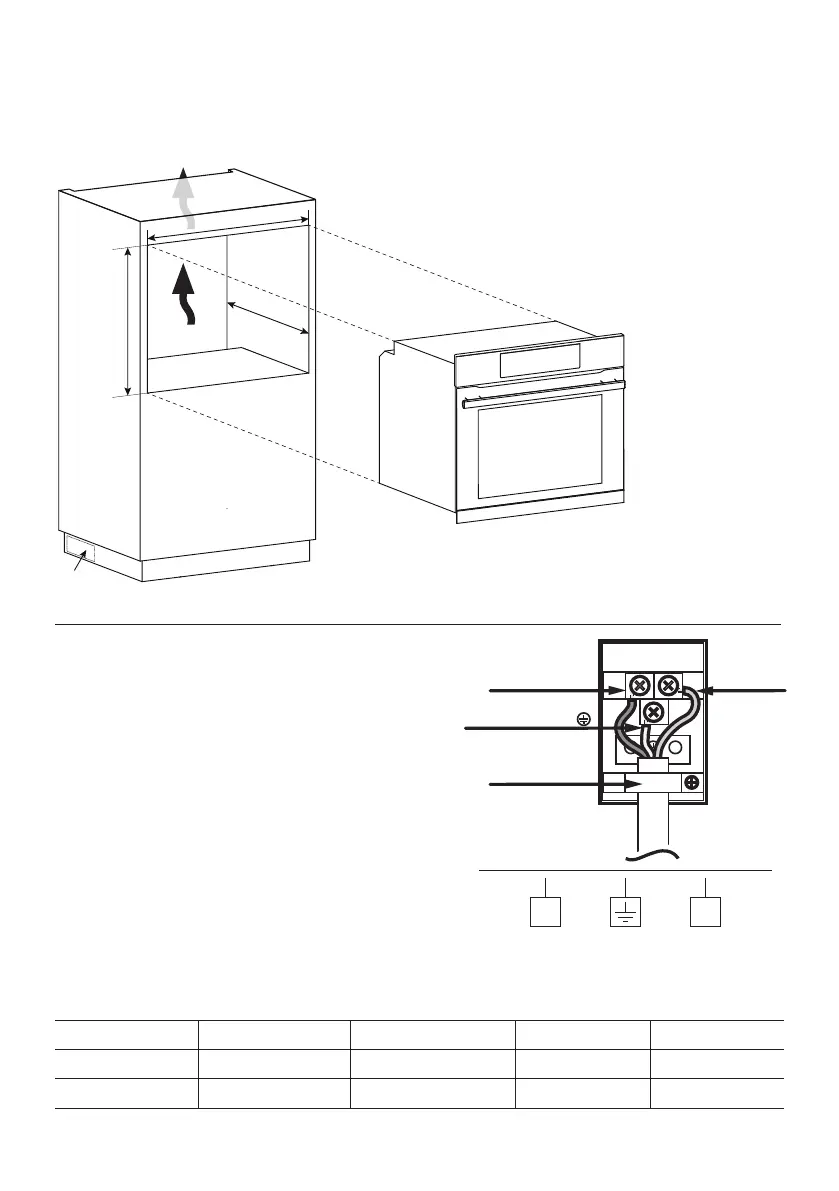

Standalone Installation
If the oven is mounted without cooktop, the cabinet depth and height can be reduced. An opening should be
provided at the top of the cabinetry to allow hot air to exit. If the bottom of the cabinetry is sealed, opening(s)
should be provided to allow cool air to enter.
560 mm
560 mm
59
5
mm
560 mm x 45 mm
460 mm x 45 mm
Air Entry
Air Exit
Model Max Power (W) Frequency (Hz) Voltage (V) Amps (A)
H WO60S7MB6
H WO60S7MX6
2400 W
50 / 60 Hz
220 - 240 ~ 10 - 10.9
2400 W
50 / 60 Hz
220 - 240 ~ 10 - 10.9
20
