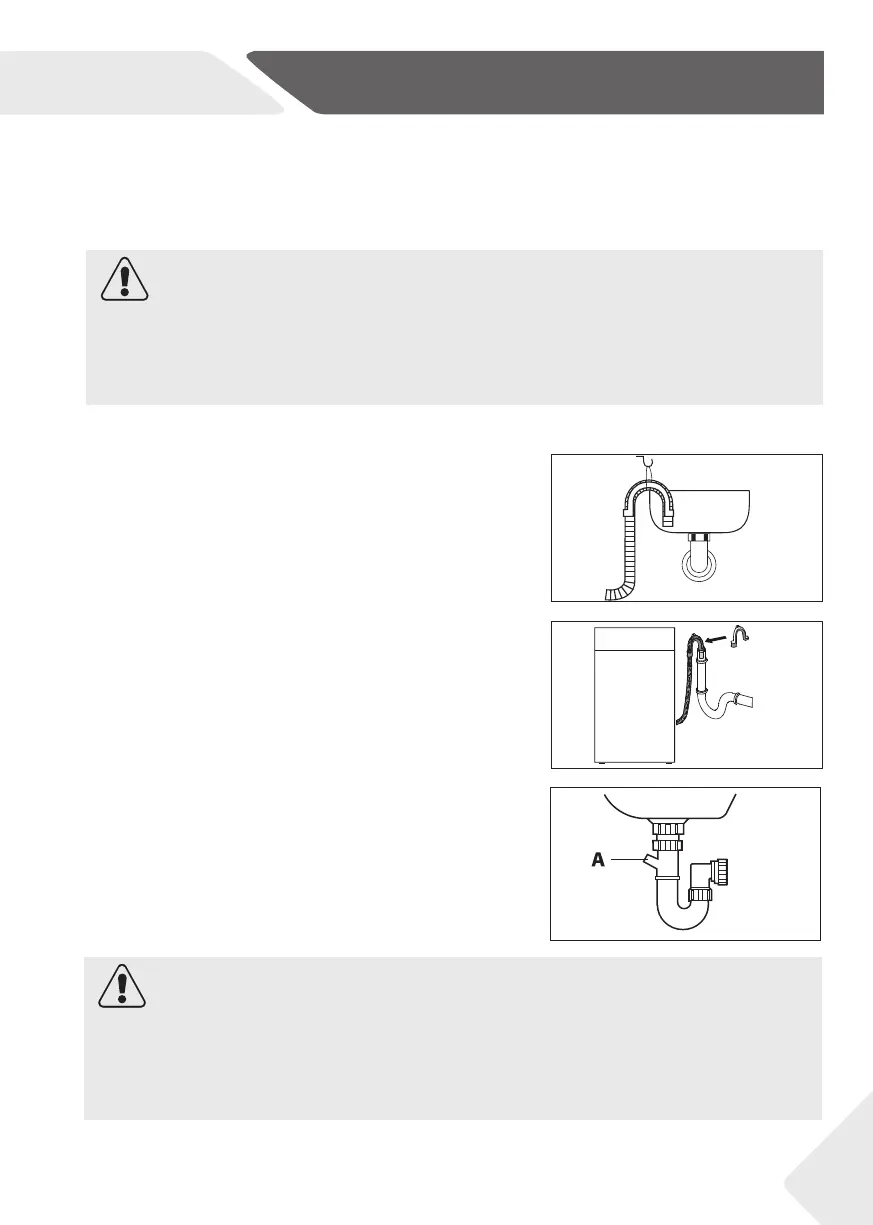

10-Installation
27
Following connections are possible:
10.6.1 Drain hose to sink
▶ Hang the drain hose with the U-support over the
edge of a sink with adequate size (Fig. 10-8).
▶ Protect the U-support suffi ciently against slipping.
10.6.2 Drain hose to waste water connection
▶ The internal diameter of the stand pipe with
vent-hole must be minimum 40 mm.
▶ Put the drain hose for approx. 80-100 mm in the
wastewater pipe.
▶ Attach the U-support and secure it suffi ciently
(Fig. 10-9).
10.6 Drain Water Connection
Fix the water drain hose properly to the piping. The hose has to reach at one point a height
between 80 and 100 cm above the appliance bottom line! If possible keep always drain
hose fi xed to the clip at the appliance back.
WARNING!
▶ Use only the supplied hose set for the connection.
▶ Never reuse old hose sets!
▶ Only connect to cold water supply.
▶ Before connection, check whether the water is clean and clear.
CAUTION!
▶ The drain hose should not be submerged in water and should be securely fixed and
leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less
than 80 cm, the washing machine will continuously drain while being filled (self-si-
phoning).
▶ Drain hose is not to be extended. If necessary contact after sales service.
10.6.3 Drain hose to sink connection
▶ The junction must lie above the siphon
▶ A spigot connection is usually closed by a pad (A).
That must be removed to prevent any disfunc-
tion (Fig. 10-10).
▶ Secure the drain hose with a clamp.
10-9
10-8
10-10
