Fig. 6.7
Blocco di
sicurezza
Fig. 6.6
Safety catch

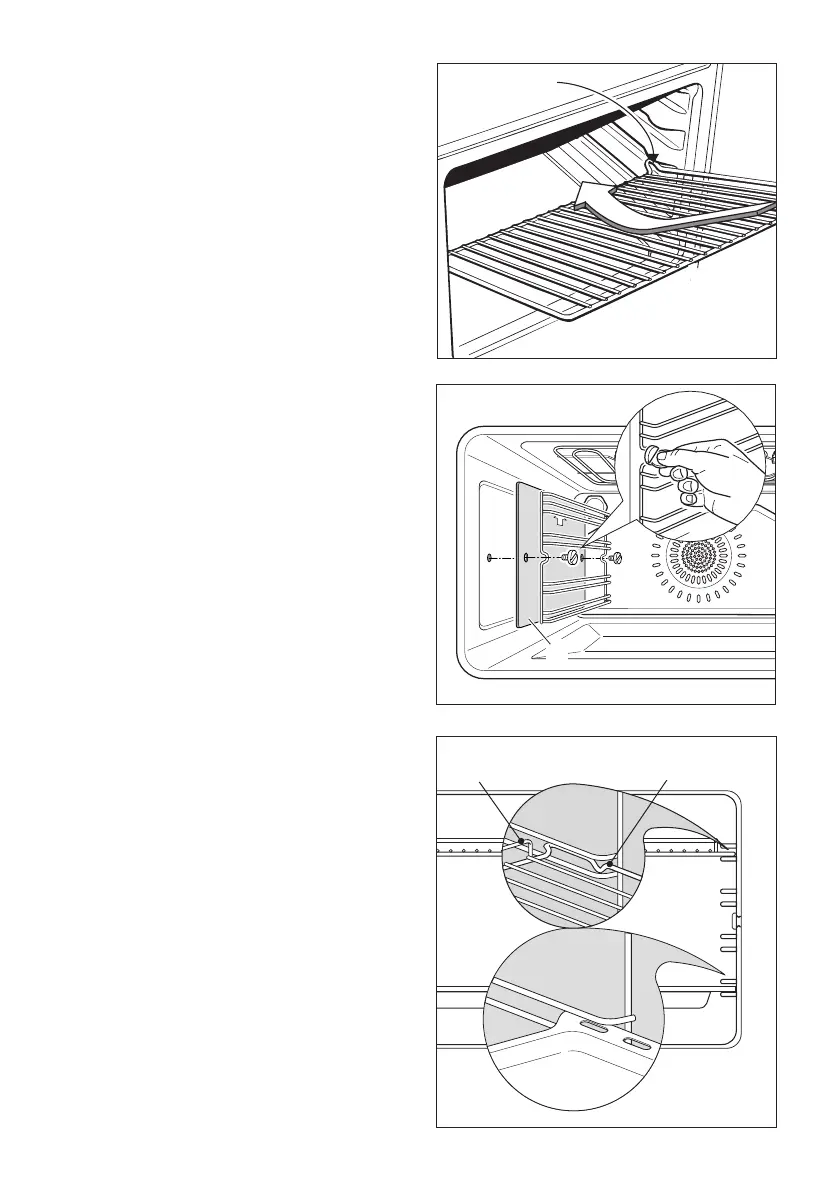

ASSEMBLY AND DISMANTLING OF
THE SIDE RUNNER FRAMES
1. Models with embossed cavity
The oven shelf must be inserted
operating as per gure 6.6.
The oven shelf is provided with a
security block to prevent accidental
extraction.
It must be inserted operating as per
gure 6.8.
To pull it out operate in the inverse
order.
2. Models with side runner frames:
• Assemble the wire racks to the oven
walls using the 2 screws (g. 6.7).
In the models with catalytic panels
supplied: interpose the catalytic
panels “A” with the arrow up (g. 6.7).
• Slide in, on the guides, the shelf and
the tray (g. 6.8).
• The shelf must be tted so that the
safety catch, which stops it sliding out,
faces the inside of the oven; the guard
rail shall be at the back.
• To dismantle, operate in reverse order.
ADVICE FOR USE AND
MAINTENANCE OF SELF CLEANING
PANELS
The self cleaning panels are covered with
a special microporous enamel which,
absorbs and removes oil and fat splashes
during normal baking over 200 °C.
If, after cooking very fatty foods, the panels
remain dirty, operate the oven empty on
max temperature for about 30 minutes.
These panels do not require to be cleaned,
however it is advised to periodically
remove them from the oven (at least the
side panels) and to wash them with tepid
soapy water and then wipe o with a soft
cloth.
DO NOT CLEAN OR WASH THEM
WITH ABRASIVE PRODUCTS OR WITH
PRODUCTS CONTAINING ACIDS OR
ALKALIS.
The side panels are reversible and when
the microporous enamel degrades, they
can be turned to the other side.
Fig. 6.8
Arresto di
sicurezza
Traverso
posteriore
Guard rail Stop notch
