12

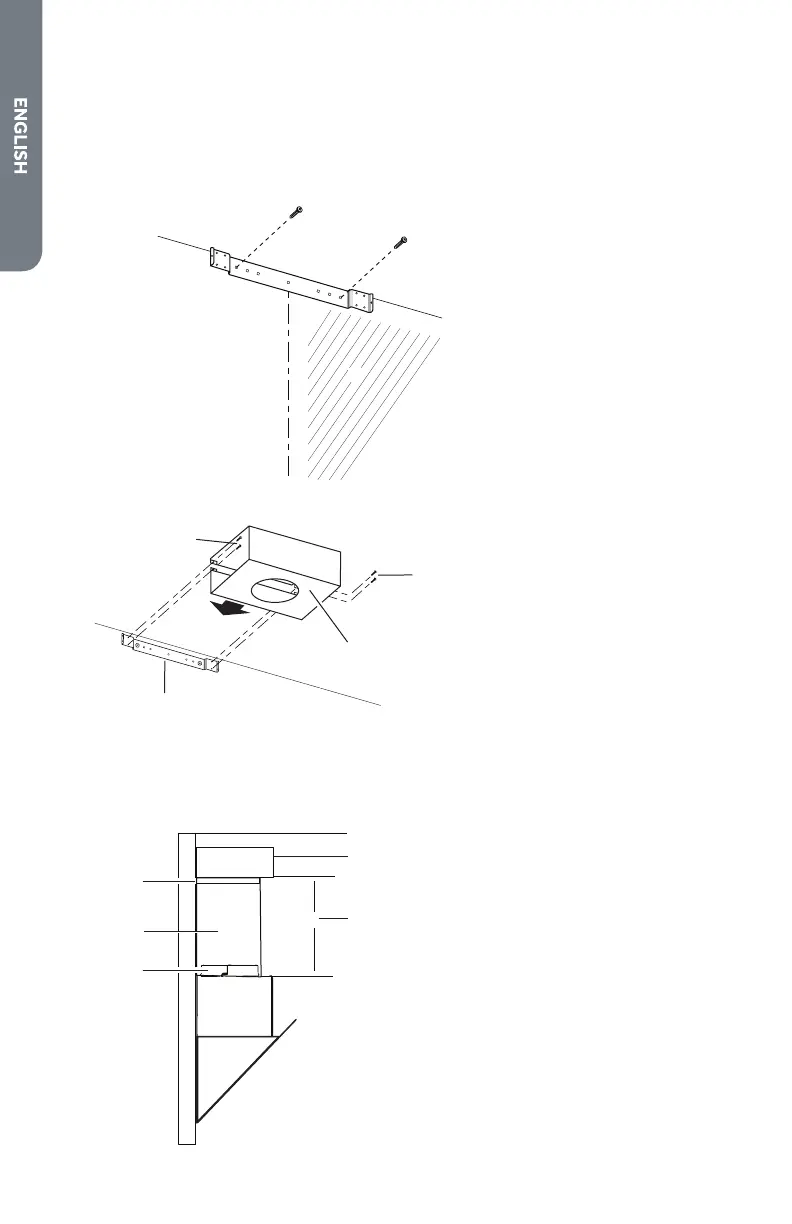

NON-VENTED (RECIRCULATING) INSTALLATION
1. Center the mounting bracket on the plumb line, at the edge of the ceiling.
2. Using screws appropriate to the wall material, attach the bracket to the wall.
NOTE: If your ceiling is not even, mount the wall bracket at the lowest level
point.
a
b
c
a Ceiling
b Wall
c Plumb Line
3. Using four mounting screws, attach the air deector to the mounting bracket.
a
b
c
a
a Mounting Screws
b Air Deector (not
provided)
c Mounting Bracket
4. Measure the length of 6" (15.2 cm) metal duct needed to connect the transition
to the deector.
NOTE: A minimum 1" (2.5 cm) length of metal duct should be tted inside the
deector.
X
a
c
b
d
e
a Air Deector (not provided)
b Vent Clamp
c X = Length to Cut Vent
Duct
d Vent Duct
e Exhaust Outlet
