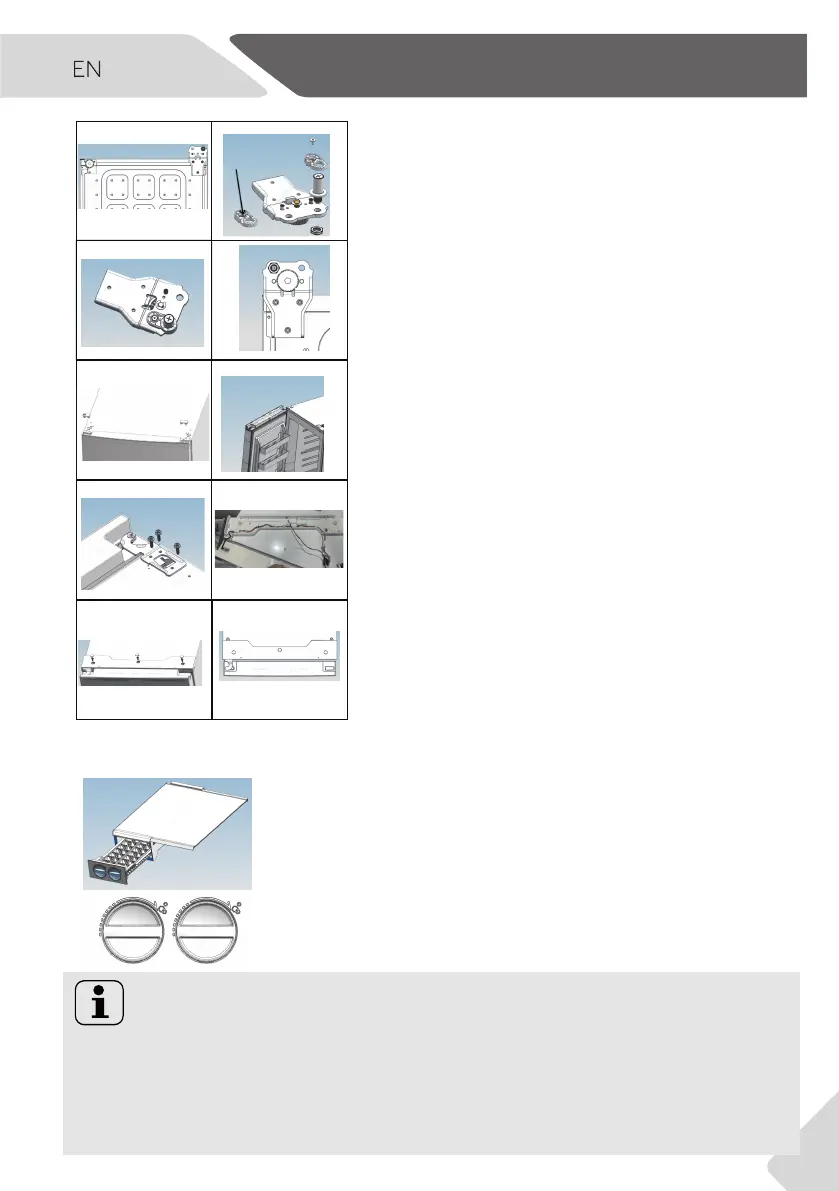

10 - Installation
11 12
13
14
15
16
17
18
19 20
Tilt slightly backwards the cabinet, remove 3
screws and then the lower hinge.
11.
Take lifting shaft sleeve out of the gift bag. Remove
2 bolts, remove the lifting shaft sleeve and lifting
shaft
12.
13.
Install the lifting shaft sleeve and lifting shaft in the left
hole and secure 2 bolts.(Adding lubricating oil to the
shaft)
Fix the hinge to the opposite position of the cabinet
with 3 screws.
14.
On opposit side of the door, pull out left side
connection cable and put it through the axe
cover from step 5, mount axe cover. Mount the
hole cover on the right side.
15.
16.
Mount the door.
Fix upper right upper hinge with 3 screws.
17.
18.
Connect the wiring harness as shown in the figure
Install the assembled hinge cover in step 5,
secure the three screws and screw hole
covers
19.
20.
Finished.
25
(Add
lubricating oil to the upper hinge before installation)
1
2
Notice: Ice maker can move position according to user habits.
1.Pull the ice maker to the position as shown in Fig. 1.
2.Pour fresh drinking water into each ice tray according to the
scale mark inside the measuring cup, do not exceed the scale
mark.
3.Push the ice maker back.
4.After becomes ice, rotate the knob by hand. Then ice blocks
will fall into the ice storage bin automatically. Remove the
drawer and fetch the ice cubes 2.
10.10 Ice Maker
1.The formation of ice will make it difficult to turn the knob. You can rotate it back and
forth several times to removethe ice, and avoid damaging the parts.
2.For ice-makers not intended to be connected to the water supply. (WARNING: Fill
with potable water only)
3.Suggest placing the ice maker on each side to achieve faster treatment speed.
