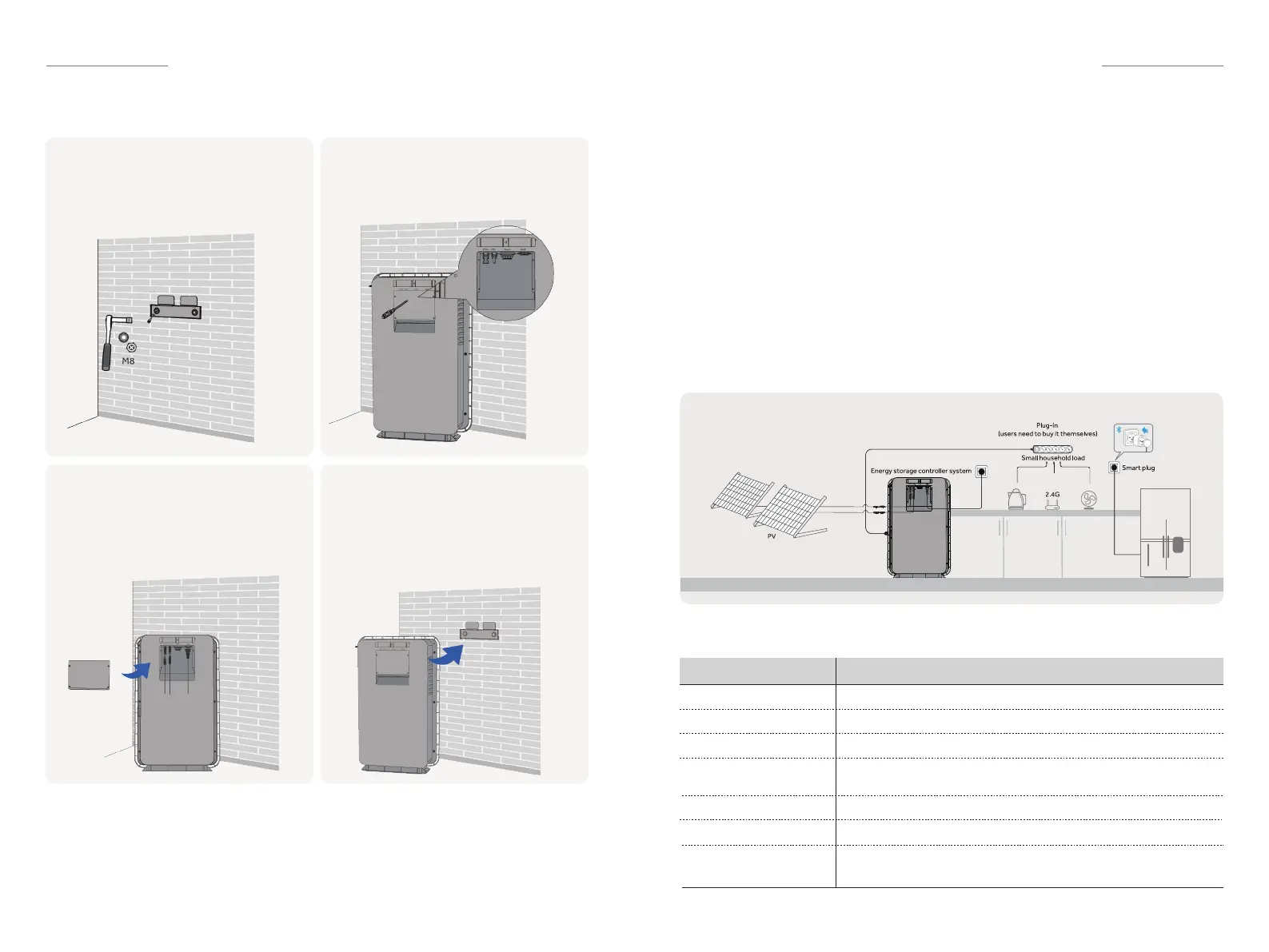

Step 5
Install the wall bracket.
Step 6
Remove the four screws of the backboard on the
back of the product, and be careful
to save the screws.
Step 7
Connect the prepared PV+, PV- and AC wires to the
corresponding positions of the product, ensure that
the connection is undamaged, and then reinstall the
backplane.
Step 8
Align the mounting holes on the back of the product
and insert them into the fixing bracket from top to
bottom to ensure that the product can be placed on
the ground, that is, the product is fixed and installed.
• Before connecting to the power grid, first ensure that the grid voltage and frequency meet
the requirements of the energy storage controller system. For detailed parameters, please
refer to the “Technical Parameters” in the User Manual; otherwise, it is needed to contact
the power company to solve it.
• Verify your country requirements if you need to obtain the access permission of the local
power company to connect the energy storage controller system to the power grid;
• The power strip connected between EPS output port and Grid needs to be purchased by
yourself.
• Before connecting the PV modules, to avoid any damage not covered by the warranty, please
verify the configuration chosen respect the main parameters. Verify the power (Pmax)
installed does not exceed 1200W, the sum of the current (Imp) of each parallel configured
panel is less than 28A, and the sum of the voltage (Voc) of each serial configured panel is less
than 150V.
07/System Connection
EPS Port
08/Check Before Power On
05 06
EN/Installation GuideEN/Installation Guide
Inspection items Acceptance standard
Equipment installed in place
Reasonable cable layout
Binding tape
Switch disconnected
Cable connected in place
Backplate installation
The installation environment
meets the requirements
The equipment is installed correctly, firmly and reliably.
The cable layout is reasonable and meets the user's requirements.
Tie the tape evenly, and leave no sharp corners at the cut.
The product start switch is in the off state, and the LED and LCD are in the
off state.
The installation space is reasonable, the environment is clean and tidy, and
there is no construction residue.
DC, AC and Comm connection is correct, firm and reliable.
Backboard is installed in and fixed with the 4 screws
