The Cassette Indoor Air Handler ships consists of a cassette
assembly and operational louver. The Cassette Indoor Unit
is operated via a factory supplied remote control. A wired
controller is optional.
The Cassette unit will install between standard dropped ceiling
grids. It is mounted using threaded rods that fit into brackets
that are located at all four corners of the cassette assembly.
The Cassette unit receives 230 volt line voltage from a
connection at the outdoor condensing unit. There is no
requirement for independent line voltage connections.
The cassette unit has a built in condensate pump and
associated float switch that manages the operation of the
condensate pump. A flexible hose is included with the Cassette
unit. This hose connects the cassette condensate drain outlet
to the buildings condensate drain system.
The motorized louver is controlled via the remote control.
The louver has indicator lights that communicate function and
diagnostic information to the user and service technician.
Factory provided insulating tape is included with the cassette
unit. This tape should be placed over the refrigerant piping
connections at the indoor unit to prevent sweating.
Installation Instructions: Introduction and Overview
Cassette Product Information
Wired Controller
is optional

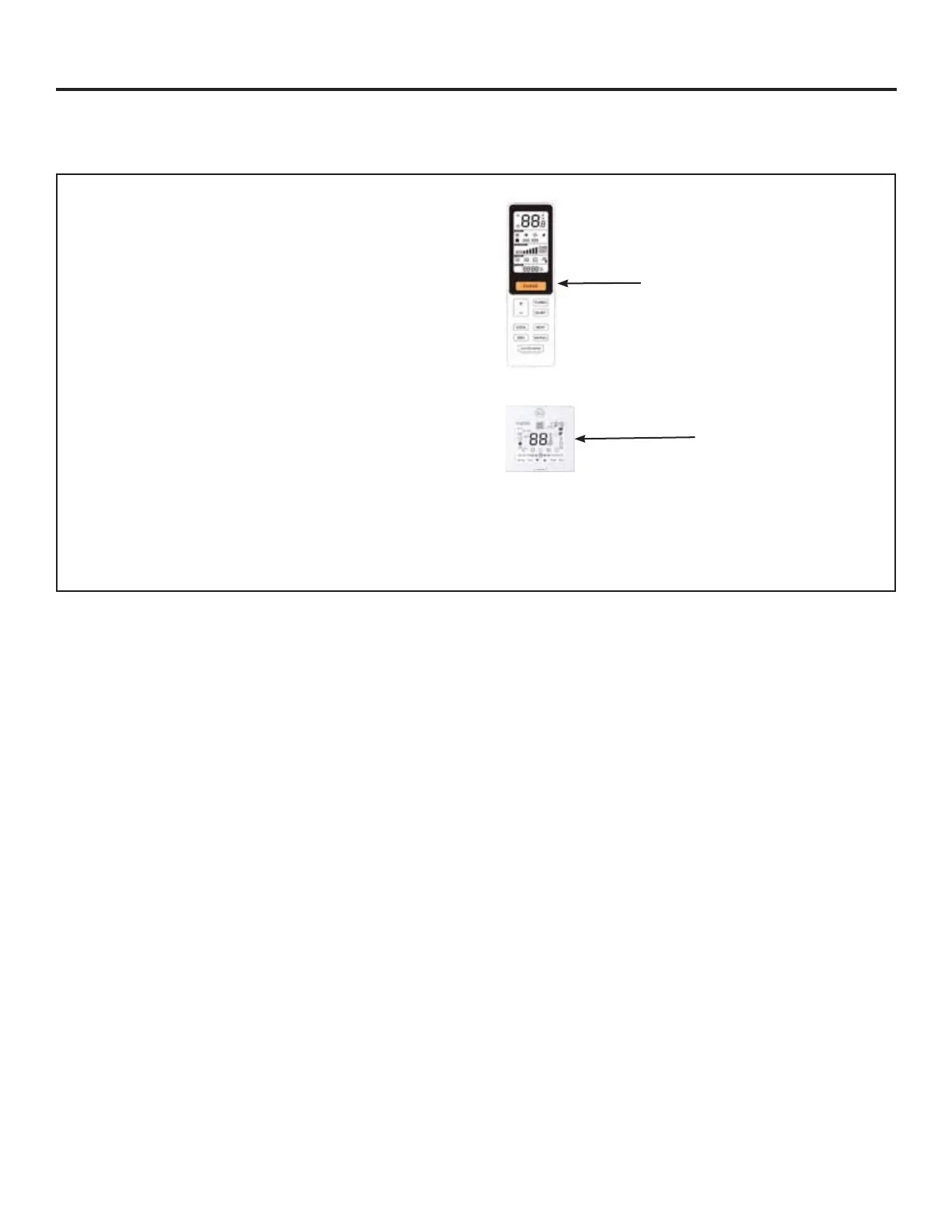

Factory Supplied Remote. See
Owner’s manual for more information
