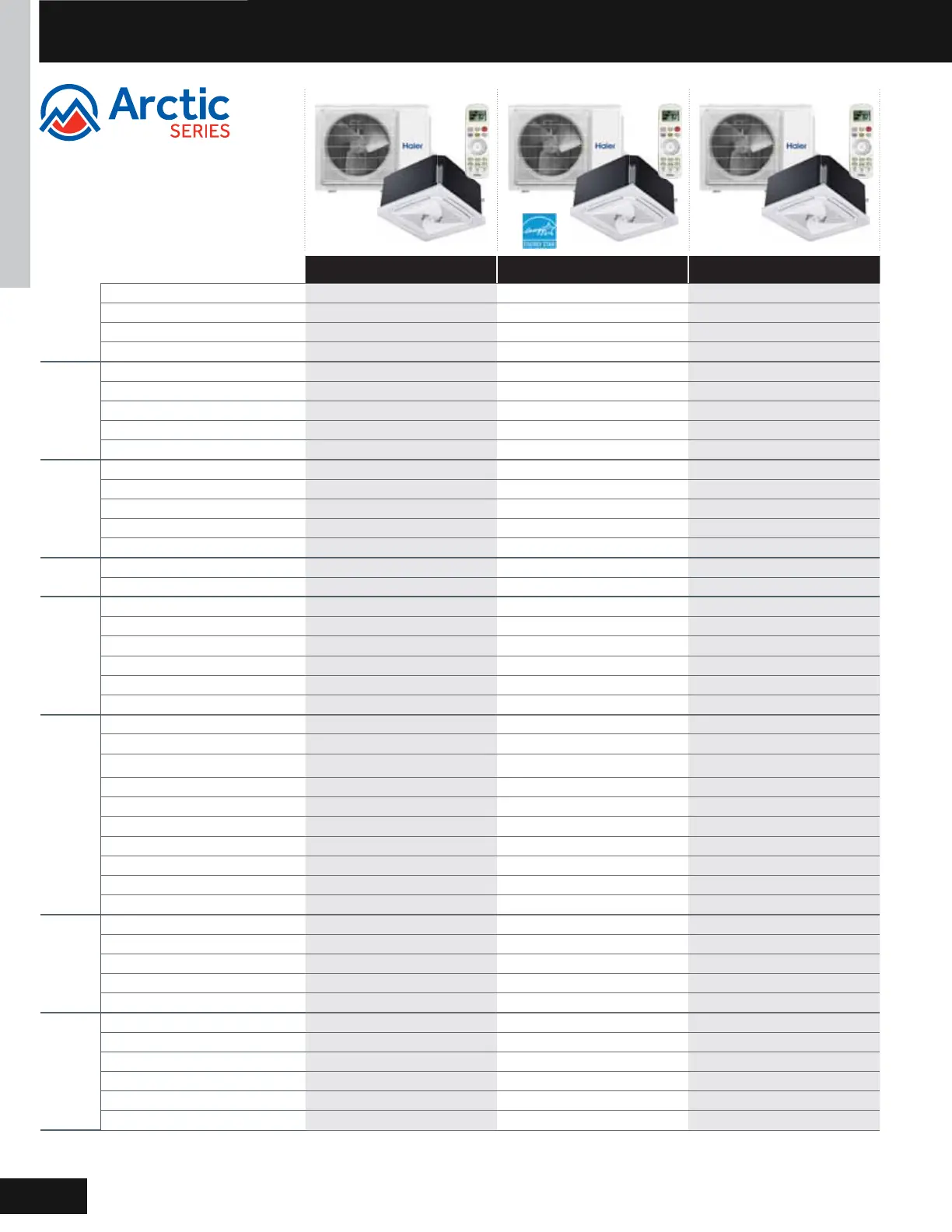

1. SPECIFICATIONS

SPECIFICATIONS

ENGLISH

09EH2 12EH2 18EH2

Outdoor 1U09EH2HEB 1U12EH2HEB 1U18EH2HEB

UPC 084691920472 084691920489 084691920496

Indoor AB09SC2VHA AB12SC2VHA AB18SC2VHA

UPC 688057405469 688057405476 688057405483

Cooling

Rated Capacity Btu/hr 9,000 12,000 17,000

Capacity Range Btu/hr 3,100~12,000 3,100~13,600 6,500~20,000

SEER2 20.0 20.5 16.0

EER2 10.5 12.5 10.6

Moisture Removal Pt./hr 2.5 3.2 3.8

Heating

Heating Capacity Range Btu/hr

3,100~18,000 3,100~21,000 5,100-22,000

Rated Heating Capacity 47°F Btu/hr 10,000 12,400 18,000

Max. Heating Capacity 5°F Btu/hr 7,200 8,700 13,600

COP @ 5°F 1.50 1.80 1.45

HSPF2 (IV)/HSPF2 (V)

8.2/6.3 8.5/6.5 8.0/6.3

Operating

Range

Cooling °F (°C) 14~115°F (-10~46°C) 14~115°F (-10~46°C) 14~115°F (-10~46°C)

Heating °F (°C) -31~75°F (-35~24°C) -31~75°F (-35~24°C) -31~75°F (-35~24°C)

Outdoor Unit

Maximum Fuse Size A 15 20 30

Minimum Circuit Amp A 13 14 20

Outdoor Noise Level dB 56 56 56

Dimension: H x W x D in (mm) 27 1/2 x 35 x 13 7/8 (697 x 890 x 353) 27 1/2 x 35 x 13 7/8 (697 x 890 x 353) 30 x 36 1/4 x 15 1/8 (762 x 920 x 385)

Carton Dimension: H x W x D in (mm) 30 3/4 x 42 3/8 x 18 1/8 (780 x 1076 x 460) 30 3/4 x 42 3/8 x 18 1/8 (780 x 1076 x 460) 33 3/16 x 42 3/4 x 19 1/8 (843 x 1085 x 487)

Weight Ship/Net - lbs (kg) 115.5/98.3 (52.4/44.6) 124.8/107.6 (56.6/48.8) 154.3/133.4 (70/60.5)

Indoor Unit

Fan Speed Stages 5 + Auto 5 + Auto 5 + Auto

ÊìõĥòúÌÏÖ¤Ýøõåò¦Ñìêë¦Öèç¦Õòú¦Úøìè÷¥ 410/365/305/265/205 410/365/305/265/205 470/410/365/295/252

Indoor Motor Speed RPM

¤Ýøõåò¦Ñìêë¦Öèç¦Õòú¦Úøìè÷¥

830/760/690/620/560 830/760/690/620/560 850/800/760/680/590

Indoor Sound Level dB

¤Ýøõåò¦Ñìêë¦Öèç¦Õòú¦Úøìè÷¥

42/40/36/32/25 42/40/36/32/25 45/42/40/36/32

Dimension: H x W x D in (mm) 10 1/4 x 22 7/16 x 22 7/16 (260 x 570 x 570) 10 1/4 x 22 7/16 x 22 7/16 (260 x 570 x 570) 10 1/4 x 22 7/16 x 22 7/16 (260 x 570 x 570)

Carton Dimension: H x W x D in (mm) 15 x 28 1/4 x 26 3/4 (380 x 718 x 680) 15 x 28 1/4 x 26 3/4 (380 x 718 x 680) 15 x 28 1/4 x 26 3/4 (380 x 718 x 680)

Weight Ship/Net - lbs (kg) 43.9/34 (19.9/15.4) 48.5/40.8 (22/18.5) 48.5/40.8 (22/18.5)

Condensate Pump Standard Standard Standard

Drain Pipe Size O.D in 1 1/4** 1 1/4**

1 1/4**

Max. Drain-Lift height in(mm) 47 1/4 (1200) 47 1/4 (1200) 47 1/4 (1200)

Grille

(Sold

Separately)

Model Number PB-700KB PB-700KB PB-700KB

Dimension: Height in (mm) 2 3/8 (60) 2 3/8 (60) 2 3/8 (60)

Dimension: Width in (mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)

Dimension: Depth in (mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)

Weight Ship/Net - lbs (kg) 10.6/6.2 (4.8/2.8) 10.6/6.2 (4.8/2.8) 10.6/6.2 (4.8/2.8)

Refrigerant

Lines

Line Size: Liquid (Suction) in. 1/4 (3/8) 1/4 (3/8) 1/4 (1/2)

IDU Flare Size: Liquid (Suction) in. 1/4 (3/8) 1/4 (3/8) 1/4 (1/2)

ODU Port Size: Liquid (Suction) in. 1/4 (1/2) 1/4 (1/2) 1/4 (1/2)

Lineset Adapter Required 1/2 to 3/8* 1/2 to 3/8* None

Refrigerant (Factory Charge Oz.) R410A (56.8) R410A (62.1) R410A (82.9)

Max. Line Length/Height Ft (mm) 50/33 (15/10) 50/33 (15/10) 83/50 (25/15)

ÝëèÊõæ÷ìæÜèõìèö)¦!"¦!(ÔËÝÞðòçèïöúìïïæòñ÷ìñøòøöïüòóèõä÷èëèä÷ìñêä÷¡#!Ï¤¡#%Ì¥

Ìòòïìñêåèïòú"#Ï¤¡%Ì¥õèôøìõèöúìñçåäħè

*Refrigerant lineset adapter shipped with outdoor unit; install on outdoor unit.

**Condensate drain adapter shipped with the indoor unit is designed to accept a 3/4" PVC pipe.

Compressor Type:

DC Inverter Driven Rotary

Voltage/Cycle/Phase:

208-230/60/1

Ìäööè÷÷èÒñçòòõ

31-5000935 Rev. 0
