7. COMPACT CASSETTE INDOOR UNITS
COMPACT CASSETTE INDOOR UNITS
20
ENGLISH

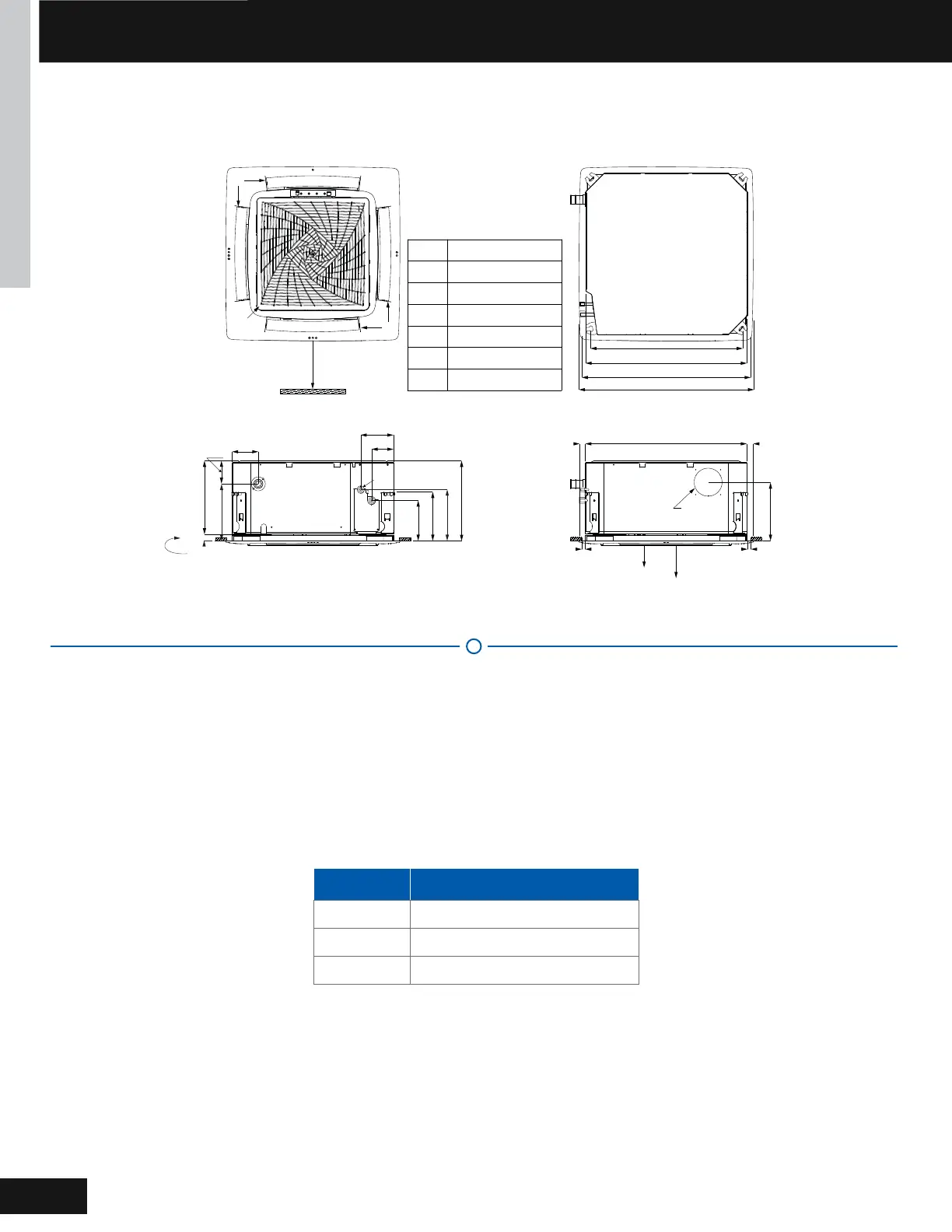

7.1 Dimensions
AB09SC2VHA, AB12SC2VHA, AB18SC2VHA
3/4 (20)3/4 (20)
less than 1/2 (12)
22 7/8 (580)
7 7/8 (200)
8 1/4 (210)
less than 1/2 (12)
Ø 4 (100)
Suspending Rods 22 7/16（570）
Unit Body 22 7/8 (580)
Ceiling Opening 23-23 7/8 (585-605)
Panel 24 3/8 (620)
No object closer than 39 (1000)
No higher above oor than 106 (2700)
Part Name
Vapor Pipe
Liquid Pipe
Air Return Grille
Air Supply
#
1
2
3
4
5
6
Drain Pump Outlet
Fresh Air Inlet
④
3 3/8 (85)
10 1/4 (260)
3 3/4 (95)
2 3/4 (70)
4 3/4 (120)
5 1/2 (140)
6 7/8 (175)
7 1/8 (180)
11 1/4 (285)
1 (25)
1 inch recess between ceiling surface and bottom
of unit without panel on.
⑤
①
②
③
⑥
⑥
More than 59 (1500) to wall on all sides
'"Ðèñèõäï
¤'"!¥ÒñçòòõÞñì÷Íèöæõìó÷ìòñ
A. Ýëèæäööè÷÷èìñçòòõöèæ÷ìòñæòðóïè÷èö÷ëèöüö÷èðúëèñæòññèæ÷èç÷ò÷ëèðä÷æëìñêòø÷çòòõøñì÷äñçĤèïç¡öøóóïìèç
piping and wiring.
¤'""¥ÜòøñçÙõèööøõèÛä÷ìñê
A. Sound pressure rating as measured according to test standard JIS C 9612:
¤'"#¥àäõõäñ÷ü
A. Ýëèæäööè÷÷èìñçòòõøñì÷öëäïïåèæòùèõèçåüäðäñøéäæ÷øõèóäõ÷öúäõõäñ÷ü¤ÜèèÜèæ÷ìòñ! Õìðì÷èçàäõõäñ÷ü)
Model
Indoor Sound Level dB
¤Ýøõåò¦Ñìêë¦Öèç¦Õòú¦Úøìè÷¥
AB09SC2VHA 42/40/36/32/25
AB12SC2VHA 42/40/36/32/25
AB18SC2VHA 45/42/40/36/32
31-5000935 Rev. 0
