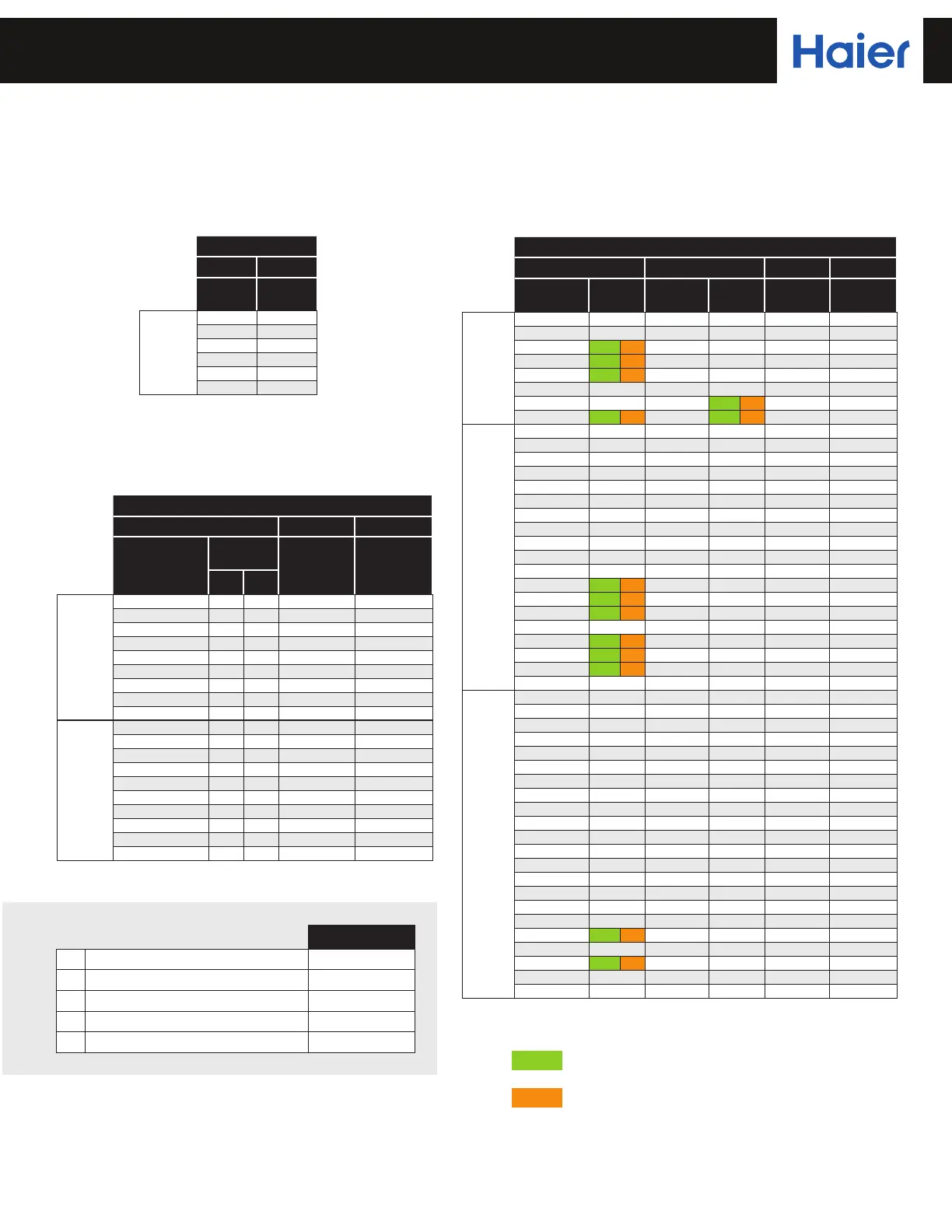

Multi-Zone Matching Charts
Adapters
Part #
A 1/4” to 3/8” (Liquid line for ports C & D) WJ01X23925
B 3/8” to 5/8” (Vapor line for port C) WJ01X23924
C 1/2” to 5/8” (Vapor line for port D) WJ01X23932
D 3/8” to 1/2” (Vapor line for port C) WJ01X26853
E 1/2” to 3/8” (Vapor line for port C or D) WJ01X26854
2U20EH2HDA
2U18MS2HDA
• No adapters required/shipped with 2U Models
Combinations
Port B Port A
Port Size:
1/4" x 3/8"
Port Size:
1/4" x 3/8"
Two
Zone
7 7
9 7
9 9
12 7
12 9
12 12
3U24EH2HDA (Ships with adapter E)
3U24MS2HDA (Ships with adapter D)
• No adapters required for Ports B, A
Combinations
Port C
Port B Port A
Port Size:
MS: 1/4" x 3/8"
EH: 1/4" x 1/2"
Required
Adapter
Port Size:
1/4" x 3/8"
Port Size:
1/4" x 3/8"
MS EH
Two
Zone
7 - E 7 -
9 - E 7 -
9 - E 9 -
12 - E 7 -
12 - E 9 -
12 - E 12 -
18 D - 7 -
18 D - 9 -
18 D - 12 -
Three
Zone
7 - E 7 7
9 - E 7 7
9 - E 9 7
12 - E 7 7
9 - E 9 9
12 - E 9 7
12 - E 9 9
12 - E 12 7
18 D - 7 7
12 - E 12 9
4U36EH2HDA (Ships with adapter D, and E)
4U36MS2HDA (Ships with adapter D and E)
• No adapters required for Ports B, A
Combinations
Port D Port C Port B Port A
Port Size:
1/4" x 1/2"
Required
Adapter*
Port Size:
1/4" x 3/8"
Required
Adapter*
Port Size:
1/4" x 3/8"
Port Size:
1/4" x 3/8"
Two
Zone
18 - 9 - - -
18 - 12 - - -
24 A, C - 7 - - -
24 A, C - 9 - - -
24 A, C - 12 - - -
18 - 18 D - -
18 - 24 A, B D - -
24 A, C - 24 A, B D - -
Three
Zone
9 E 9 - 9 -
12 E 9 - 7 -
12 E 9 - 9 -
12 E 12 - 7 -
18 - 7 - 7 -
12 E 12 - 9 -
18 - 9 - 7 -
18 - 9 - 9 -
12 E 12 - 12 -
18 - 12 - 12 -
18 - 12 - 7 -
24 A, C - 7 - 7 -
24 A, C - 9 - 9 -
24 A, C - 9 - 7 -
18 - 12 - 9 -
24 A, C - 12 - 12 -
24 A, C - 12 - 7 -
24 A, C - 12 - 9 -
18 - 18 D 12 -
Four
Zone
7 E 7 - 7 7
9 E 7 - 7 7
9 E 9 - 7 7
12 E 7 - 7 7
9 E 9 - 9 7
12 E 9 - 7 7
9 E 9 - 9 9
12 E 9 - 9 7
12 E 12 - 7 7
12 E 9 - 9 9
18 - 7 - 7 7
12 E 12 - 9 7
18 - 9 - 7 7
12 E 12 - 9 9
12 E 12 - 12 7
18 - 9 - 9 7
18 - 12 - 7 7
24 A, C - 7 - 7 7
12 E 12 - 12 9
24 A, C - 9 - 7 7
12 E 12 - 12 12
18 - 12 - 9 9
Applies to the following models with 3/8” and 5/8” port:
AW24LP2VHA, USYM24UCDSA, USYL24UCDSA, AL24LP2VHA
Applies to the following model with 1/4” and 1/2” port:
AW24TC2HDA
* All 18K models require 1/4” liquid and 1/2” vapor linesets.
24K Model adapters vary. See color code:
