Use 1/2 x 3/8 suction line adapter shipped with outdoor unit

*Remote controller is shipped with indoor unit.

**Requires WK-B adapter.

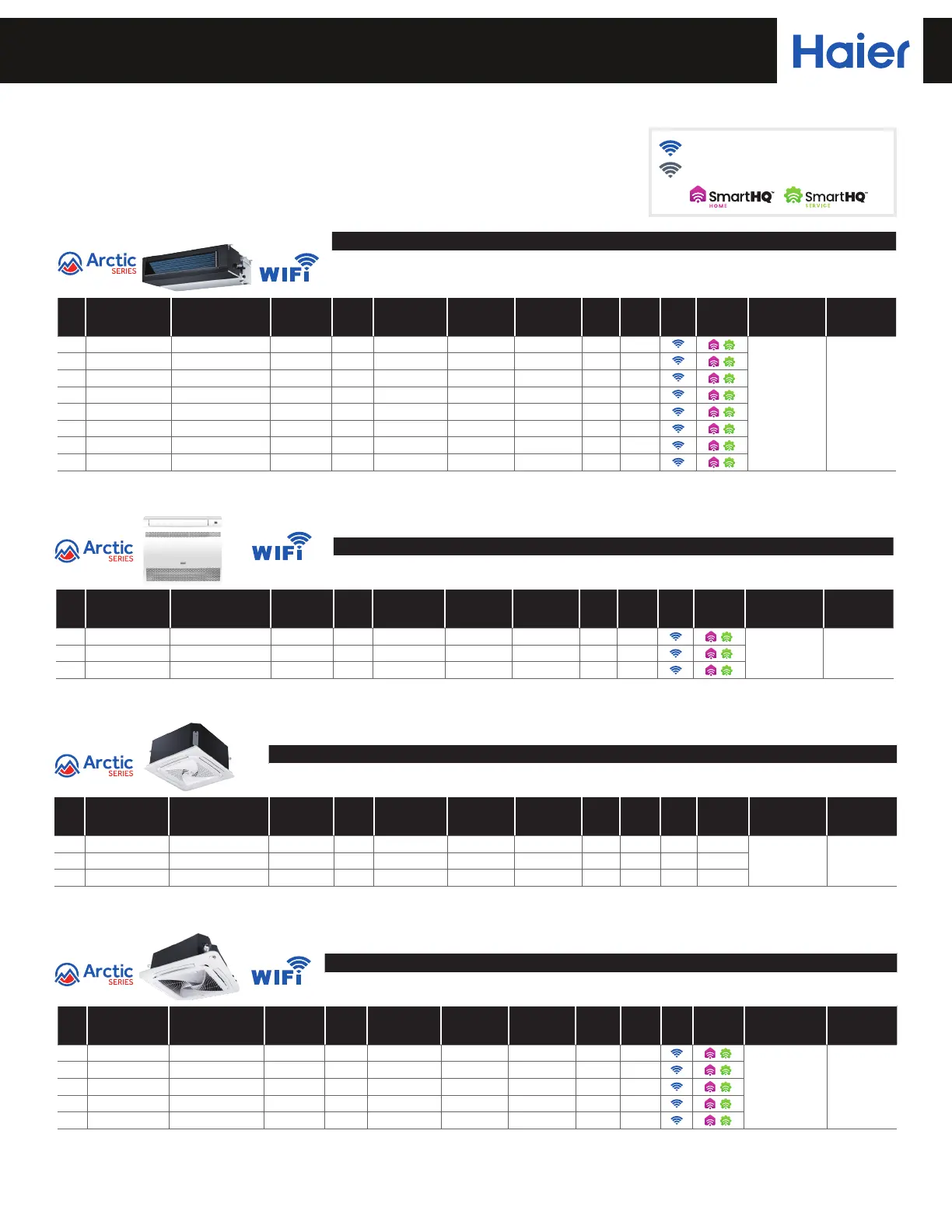

Ducted

Max Operating Range

09/12/18EH2HEB: Cooling: 14~115°F (-10~46°C) Heating: -31~75°F (-35-24°C)

24/3036/4248LP2HDA: Cooling: -4°F~115°F (-20~46°C) Heating: -15°F~75°F (-26~4°C)

Cooling operating range varies by model. Cooling below 23°F (-5°C) requires wind bae..

Size Outdoor Model Indoor Model AHRI#

Heat

@ 5

SEER2/EER2/

HSPF2 (IV)

Line Set

Liquid

Suction

Min/Max

Line Length

Max

Fuse

Size A

Min

Circuit

Amp

WiFi

SmartHQ

Standard

Controller

Optional

Controller

9K 1U09EH2HEB USYM09UCDSA 212409472 9,800 18/11.5/9.5 1/4"- 3/8"

†

10’/50’ 15 13

Wired

controller

must be

purchased

separately

QACT17A

YR-E16B

YR-E17

12K 1U12EH2HEB USYM12UCDSA 212409473 11,500 18/11.7/8.5 1/4"- 3/8"

†

10’/50’ 20 14

18K 1U18EH2HEB USYM18UCDSA 212409474 17,200 16.2/10.5/8.1 1/4"- 1/2" 10’/83’ 30 20

24K 1U24LP2HDA USYM24UCDDA 211727008 20,000 16.5/9.5/8.1 3/8" - 5/8" 10’/165’ 25 21

30K 1U3036LP2HDA USYM30UCDDA 211727009 23,800 15.2/9/9 3/8" - 3/4" 10’/165’ 30 26

36K 1U3036LP2HDA USYM36UCDDA 211727010 25,600 15/8/9 3/8" - 3/4" 10’/165’ 30 26

42K 1U4248LP2HDA USYM42UCDDA 211729105 36,800 15.2/7.8/8.7 3/8" - 3/4" 10’/230’ 40 35

48K 1U4248LP2HDA USYM48UCDDA 211729106 35,600 15.2/7.3/8.8 3/8" - 3/4" 10’/230’ 40 35

See also Arctic Single Zone Piping Specications and Adapter Requirements

Max Operating Range

Cooling: 14~115°F (-10~46°C) Heating: -31~75°F (-35-24°C)

Cooling below 23°F (-5°C) requires wind bae.

Size Outdoor Model Indoor Model AHRI#

Max

Heat

@ 5

SEER2/EER2/

HSPF2 (IV)

Line Set

Liquid

Suction

Min/Max

Line Length

Max

Fuse

Size A

Min

Circuit

Amp

WiFi SmartHQ

Standard

Controller

Optional

Controller

9K 1U09EH2HEB USYF09UCDWA 212409450 7,700 20/11/8.5 1/4"- 3/8"

†

10’/50’ 15 13

WJ01X24721*

QACT17A

YR-E16B

YR-E17

12K 1U12EH2HEB USYF12UCDWA 212409451 9,000 20/12.5/8.5 1/4"- 3/8"

†

10’/50’ 20 14

18K 1U18EH2HEB USYF18UCDWA 212409452 13,300 17/10/8.5 1/4"- 1/2" 10’/83’ 30 20

Consoles

See also Arctic Single Zone Piping Specications and Adapter Requirements

Max Operating Range

Cooling: 14~115°F (-10~46°C) Heating: -31~75°F (-35-24°C)

Cooling below 23°F (-5°C) requires wind bae.

Size Outdoor Model Indoor Model AHRI#

Max

Heat

@ 5

SEER2/EER2/

HSPF2 (IV)

Line Set

Liquid

Suction

Min/Max

Line Length

Max

Fuse

Size A

Min

Circuit

Amp

WiFi SmartHQ

Standard

Controller

Optional

Controller

9K 1U09EH2HEB AB09SC2VHA 212409453 7,200 20/10.5/8.2 1/4"- 3/8"

†

10’/50’ 15 13 NA NA

WJ01X24721*

QACT17A

YR-E16B

YR-E17

12K 1U12EH2HEB AB12SC2VHA 212409454 8,700 20.5/12.5/8.5 1/4"- 3/8"

†

10’/50’ 20 14 NA NA

18K 1U18EH2HEB AB18SC2VHA 212409455 13,600 16/10.6/8 1/4"- 1/2" 10’/83’ 30 20 NA NA

Compact Cassettes

See also Arctic Single Zone Piping Specications and Adapter Requirements

Max Operating Range

Cooling: -4°F~115°F (-20~46°C) Heating: -15°F~75°F (-26~4°C)

Cooling below 23°F (-5°C) requires wind bae.

Size Outdoor Model Indoor Model AHRI#

Max

Heat

@ 5

SEER2/EER2/

HSPF2 (IV)

Line Set

Liquid

Suction

Min/Max

Line Length

Max

Fuse

Size A

Min

Circuit

Amp

WiFi SmartHQ

Standard

Controller

Optional

Controller

24K 1U24LP2HDA USYL24UCDDA 211744600 19,000 19/11/8.6 3/8" - 5/8" 10’/165’ 25 21

WJ01X24721*

QACT17A

YR-E16B

YR-E17

30K 1U3036LP2HDA USYL30UCDDA 211744602 26,800 18/10.6/9.2 3/8" - 3/4" 10’/165’ 30 26

36K 1U3036LP2HDA USYL36UCDDA 211744604 26,600 18/9.5/9 3/8" - 3/4" 10’/165’ 30 26

42K 1U4248LP2HDA USYL42UCDDA 211744605 32,800 18/8.7/8.5 3/8" - 3/4" 10’/230’ 40 35

48K 1U4248LP2HDA USYL48UCDDA 211744607 33,000 17/8/8.5 3/8" - 3/4" 10’/230’ 40 35

Large Cassettes

See also Arctic Single Zone Piping Specications and Adapter Requirements

Built-in WiFi

Adaptable with WiFi Adapter QAWF01A
