Compressor Type:

DC Inverter Driven Rotary

Voltage/Cycle/Phase:

208-230/60/1

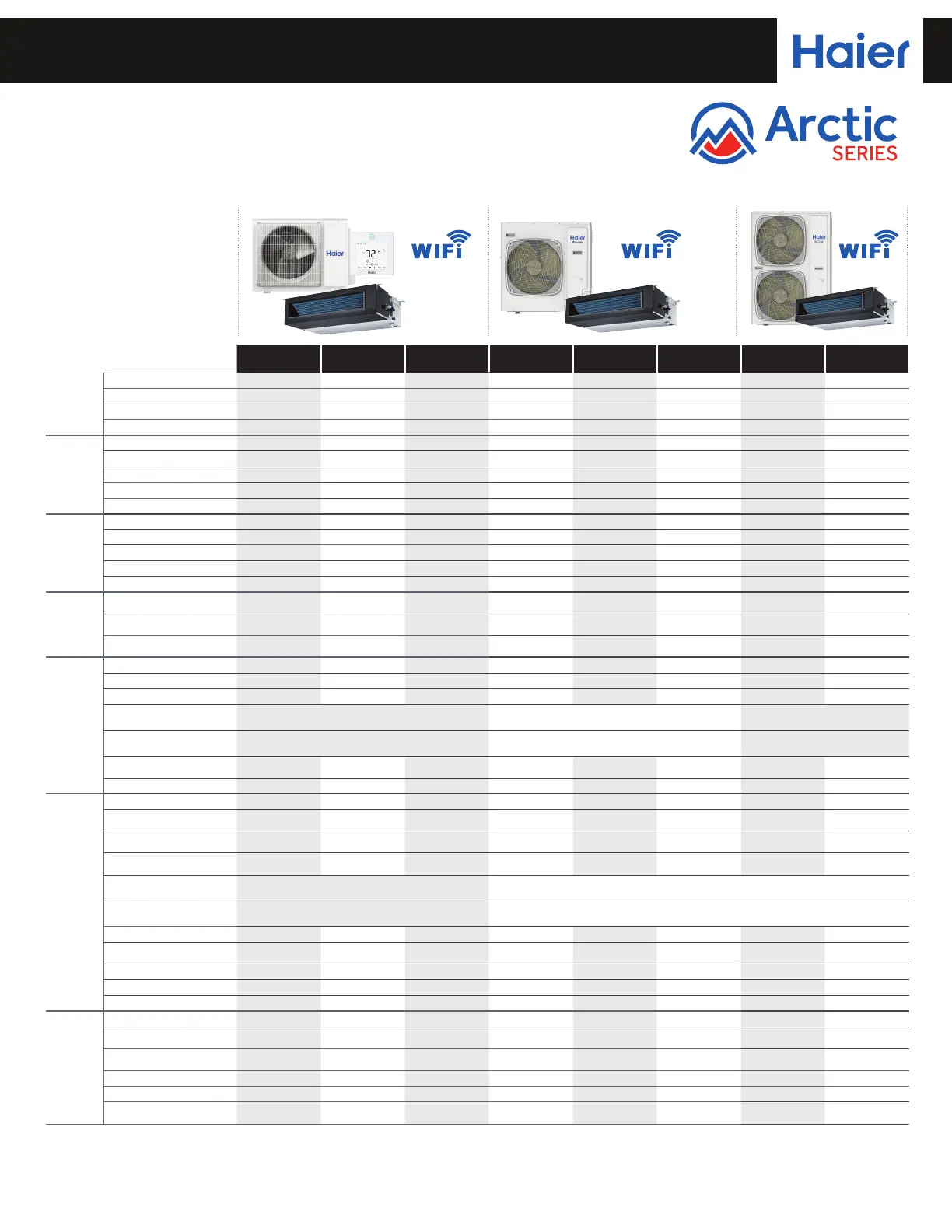

Specications

Built-in WiFiBuilt-in WiFi Built-in WiFi

09EHYM 12EHYM 18EHYM 24LPYM 30LPYM 36LPYM 42LPYM 48LPYM

Outdoor 1U09EH2HEB 1U12EH2HEB 1U18EH2HEB 1U24LP2HDA 1U3036LP2HDA 1U3036LP2HDA 1U4248LP2HDA 1U4248LP2HDA

UPC

084691920472 084691920489 084691920496 084691882275 084691882282 084691882282 084691882299 084691882299

Indoor USYM09UCDSA USYM12UCDSA USYM18UCDSA USYM24UCDDA USYM30UCDDA USYM36UCDDA USYM42UCDDA USYM48UCDDA

UPC

084691851554 084691851561 084691851578 084691891895 084691882343 084691882350 084691882367 084691882374

Cooling

Rated Capacity Btu/hr 9,000 12,000 18,000 24,000 30,000 34,000 42,000 46,000

Capacity Range Btu/hr 3,100~12,000 3,100~13,600 6,500~23,200 7,200~26,000 12,000~32,000 12,000~35,000 10,000~43,000 9,500~47,000

SEER2 18.0 18.0 16.2 16.5 15.2 15.0 15.2 15.2

EER2 11.5 11.7 10.5 9.5 9.0 8.0 7.8 7.3

Moisture Removal Pt./hr 2.5 3.2 3.8 9.6 9.6 9.6 11.0 11.0

Heating

Heating Capacity Range Btu/hr 3,100~18,000 3,100~21,000 5,100-24,000 4,000~28,500 6,500~32,500 6,500~38,000 10,000~46,500 10,000~49,000

Rated Heating Capacity 47°F Btu/hr 10,000 14,800 20,000 26,000 32,000 36,000 45,000 48,000

Max. Heating Capacity 5°F Btu/hr 9,800 11,500 17,200 20,000 23,800 25,600 36,800 35,600

COP @ 5°F 1.75 1.42 1.46 1.8 1.8 1.8 1.75 1.75

HSPF2 (IV)/HSPF2 (V) 9.5/7.6 8.5/6.7 8.1/6.4 8.1/6.9 9.0/7.3 9.0/7.3 8.7/7.1 8.8/7.1

Operating

Range

Cooling w/o Wind Bae °F (°C) - - -

23°F~115°F

(-5~46°C)

23°F~115°F

(-5~46°C)

23°F~115°F

(-5~46°C)

23°F~115°F

(-5~46°C)

23°F~115°F

(-5~46°C)

Cooling w/Wind Bae °F (°C)

14~115°F

(-10~46°C)

14~115°F

(-10~46°C)

14~115°F

(-10~46°C)

-4°F~115°F

(-20~46°C)

-4°F~115°F

(-20~46°C)

-4°F~115°F

(-20~46°C)

-4°F~115°F

(-20~46°C)

-4°F~115°F

(-20~46°C)

Heating °F (°C)

-31~75°F

(-35~24°C)

-31~75°F

(-35~24°C)

-31~75°F

(-35~24°C)

-15°F~75°F

(-26~4°C)

-15°F~75°F

(-26~4°C)

-15°F~75°F

(-26~4°C)

-15°F~75°F

(-26~4°C)

-15°F~75°F

(-26~4°C)

Outdoor

Unit

Maximum Fuse Size A 15 20 30 25 30 30 40 40

Minimum Circuit Amp A 13 14 20 21 26 26 35 35

Outdoor Noise Level dB 56 56 56 60 60 60 60 60

Dimension:

H x W x D in (mm)

27 1/2 x 35 x 13 7/8

(697 x 890 x 353)

30 x 36 1/4 x 15 1/8

(762 x 920 x 385)

37 7/8 x 37 1/2 x 14 5/8

(965 x 950 x 370)

53 1/8 x 37 1/2 x 14 5/8

(1350 x 950 x 370)

Carton Dimension:

H x W x D in (mm)

30 3/4 x 42 3/8 x 18 1/8

(780 x 1076 x 460)

33 3/16 x 42 3/4 x 19 1/8

(843 x 1085 x 487)

46 3/8 x 41 3/8 x 19 1/8

(1175 x 1050 x 485)

61 3/4 x 41 3/8 x 19 1/8

(1568 x 1050 x 485)

Weight Ship/Net - lbs (kg)

115.5/98.3

(52.4/44.6)

124.8/107.6

(56.6/48.8)

154.3/133.4

(70/60.5)

196/159

(89/72)

196/159

(89/72)

196/159

(89/72)

262/216

(119/98)

262/216

(119/98)

Base Pan Heater Built-in Built-in Built-in Built-in Built-in Built-in Built-in Built-in

Indoor Unit

Fan Speed Stages 5 + Auto 5 + Auto 5 + Auto 5 + Auto 5 + Auto 5 + Auto 5 + Auto 5 + Auto

Airow CFM

(Turbo/High/Med/Low/Quiet)

424/353/294/

235/176

494/424/353/

294/235

735/635/541/

470/400

927/844/667/

564/482

1236/1130/953/

812/688

1236/1130/953/

812/688

1412/1353/1141/

965/847

1412/1353/1141/

965/847

Indoor Motor Speed RPM

(Turbo/High/Med/Low/Quiet)

880/800/720/

640/560

950/870/780/

680/600

880/820/760/

700/640

1070/1030/880/

790/740

1010/970/850/

760/700

1010/970/850/

760/700

1140/1120/980/

860/800

1140/1120/980/

860/800

Indoor Sound Level dB

(Turbo/High/Med/Low/Quiet)

44/41/38/35/32 47/44/41/38/35 48/45/42/39/36 44/43/42/40/38 46/45/41/38/36 46/45/41/38/36 49/48/45/42/40 49/48/45/42/40

Dimension:

H x W x D in (mm)

9 3/4 x 27 1/2 x 27 1/2

(248 x 700 x 700)

9 3/4 x 43 1/4 x 27 1/2

(248 x 1100 x 700)

9 3/4 x 43 1/4 x 27 1/2

(248 x 1100 x 700)

9 7/8 x 59 1/8 x 27 5/8

(248 x 1500 x 700)

Carton Dimension:

H x W x D in (mm)

13 1/2 x 37 1/2 x 35 1/2

(340 x 950 x 900)

13 1/2 x 46 x 33 3/4

(340 x 1170 x 860)

13 7/8 x 52 x 34 1/8

(350 x 1319 x 866)

13 7/8 x 67 3/8 x 34 1/8

(350 x 1710 x 866)

Weight Ship/Net - lbs (kg) 66/57 (30/26) 66/57 (30/26) 77/70 (35/32) 121/92.6 (55/42) 159/119 (72/54) 159/119 (72/54) 159/119 (72/54) 159/119 (72/54)

Max. External Static Pressure

in.W.G (Pa)

0.6 (150) 0.6 (150) 0.6 (150) 0.6 (150) 0.6 (150) 0.6 (150) 0.6 (150) 0.6 (150)

Internal Condensate Pump Standard Standard Standard Standard Standard Standard Standard Standard

Drain Pipe Size O.D in 1** 1** 1** 1** 1** 1** 1** 1**

Max. Drain-lift height in (mm) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700) 27 9/16 (700)) 27 9/16 (700)

Refrigerant

Lines

Line Size: Liquid (Suction) in. 1/4 (3/8) 1/4 (3/8) 1/4 (1/2) 3/8 (5/8) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4)

IDU Flare Size:

Liquid (Suction) in.

1/4 (3/8) 1/4 (3/8) 1/4 (1/2) 3/8 (5/8) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4)

ODU Port Size:

Liquid (Suction) in.

1/4 (1/2) 1/4 (1/2) 1/4 (1/2) 3/8 (5/8) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4)

Lineset Adapter Required 1/2 to 3/8* 1/2 to 3/8* None None None None None None

Refrigerant (Factory Charge Oz.) R410A (56.8) R410A (62.1) R410A (82.9) R410A (85.0) R410A (88.0) R410A (88.0) R410A (141.0) R410A (141.0)

Max. Line Length/Height

Ft (mm)

50/33 (15/10) 50/33 (15/10) 83/50 (25/15) 165/100 (50/30) 165/100 (50/30) 165/100 (50/30) 230/100 (70/30) 230/100 (70/30)

The Arctic Series 9/12/18K BTU models will continuously operate heating at -31°F(-35°C).

Cooling below 23°F (-5°C) requires wind bae.

*Refrigerant lineset adapter shipped with outdoor unit; install on outdoor unit.

**Condensate drain adapter shipped with the indoor unit is designed to accept a 3/4" PVC pipe.
