Built-in WiFi Built-in WiFi Built-in WiFi

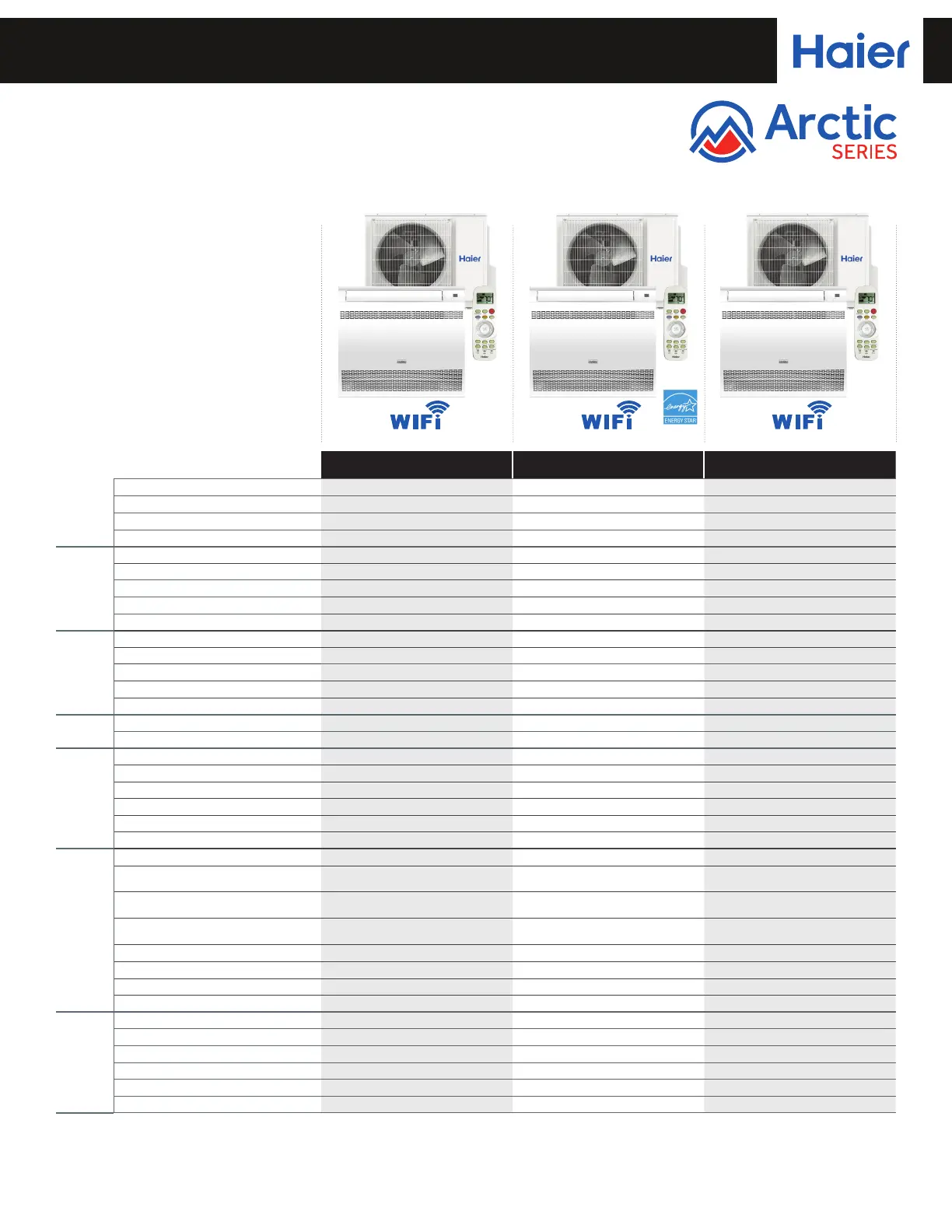

Specications

Compressor Type:

DC Inverter Driven Rotary

Voltage/Cycle/Phase:

208-230/60/1

09EHYF 12EHYF 18EHYF

Outdoor 1U09EH2HEB 1U12EH2HEB 1U18EH2HEB

UPC

084691920472 084691920489 084691920496

Indoor USYF09UCDWA USYF12UCDWA USYF18UCDWA

UPC

084691851523 084691851530 084691851547

Cooling

Rated Capacity Btu/hr 9,000 11,600 14,800

Capacity Range Btu/hr 3,100~12,000 3,100~13,600 6,500~18,000

SEER2 20.0 20.0 17.0

EER2 11.0 12.5 10.0

Moisture Removal Pt./hr 2.5 3.2 3.8

Heating

Heating Capacity Range Btu/hr 3,100~18,000 3,100~21,000 5,100~20,000

Rated Heating Capacity 47°F Btu/hr 10,000 12,800 17,800

Max. Heating Capacity 5°F Btu/hr 7,700 9,000 13,300

COP @ 5°F 1.50 1.45 1.40

HSPF2 (IV)/HSPF2 (V) 8.5/6.4 8.5/6.4 8.5/6.6

Operating

Range

Cooling °F (°C) 14~115°F (-10~46°C) 14~115°F (-10~46°C) 14~115°F (-10~46°C)

Heating °F (°C) -31~75°F (-35~24°C) -31~75°F (-35~24°C) -31~75°F (-35~24°C)

Outdoor

Unit

Maximum Fuse Size A 15 20 30

Minimum Circuit Amp A 13 14 20

Outdoor Noise Level dB 56 56 56

Dimension: H x W x D in (mm) 27 1/2 x 35 x 13 7/8 (697 x 890 x 353) 27 1/2 x 35 x 13 7/8 (697 x 890 x 353) 30 x 36 1/4 x 15 1/8 (762 x 920 x 385)

Carton Dimension: H x W x D in (mm) 30 3/4 x 42 3/8 x 18 1/8 (780 x 1076 x 460) 30 3/4 x 42 3/8 x 18 1/8 (780 x 1076 x 460) 33 3/16 x 42 3/4 x 19 1/8 (843 x 1085 x 487)

Weight Ship/Net - lbs (kg) 115.5/98.3 (52.4/44.6) 124.8/107.6 (56.6/48.8) 154.3/133.4 (70/60.5)

Indoor Unit

Fan Speed Stages 5 + Auto 5 + Auto 5 + Auto

Airow CFM

(Turbo/High/Med/Low/Quiet)

264/235/205/176/147 294/264/235/205/176 341/311/282/252/223

Indoor Motor Speed RPM

(Turbo/High/Med/Low/Quiet)

650/560/480/410/360 700/590/510/440/390 800/710/630/560/510

Indoor Sound Level dB

(Turbo/High/Med/Low/Quiet)

43/40/37/34/31 45/42/39/36/33 49/46/43/40/37

Dimension: H x W x D in (mm) 23 3/4 x 27 1/2 x 8 1/4 (600 x 700 x 210) 23 3/4 x 27 1/2 x 8 1/4 (600 x 700 x 210) 23 3/4 x 27 1/2 x 8 1/4 (600 x 700 x 210)

Carton Dimension: H x W x D in (mm) 27 1/2 x 30 3/4 x 12 (695 x 783 x 303) 27 1/2 x 30 3/4 x 12 (695 x 783 x 303) 27 1/2 x 30 3/4 x 12 (695 x 783 x 303)

Weight Ship/Net - lbs (kg) 35.7/27.8 (16.2/12.6) 35.7/27.8 (16.2/12.6) 45.2/36.6 (20.5/16.6)

Drain Pipe Size O.D in 5/8 5/8 5/8

Refrigerant

Lines

Line Size: Liquid (Suction) in. 1/4 (3/8) 1/4 (3/8) 1/4 (1/2)

IDU Flare Size: Liquid (Suction) in. 1/4 (3/8) 1/4 (3/8) 1/4 (1/2)

ODU Port Size: Liquid (Suction) in. 1/4 (1/2) 1/4 (1/2) 1/4 (1/2)

Lineset Adapter Required 1/2 to 3/8* 1/2 to 3/8* None

Refrigerant (Factory Charge Oz.) R410A (56.8) R410A (62.1) R410A (82.9)

Max. Line Length/Height Ft (mm) 50/33 (15/10) 50/33 (15/10) 83/50 (25/15)

The Arctic Series 9/12/18K BTU models will continuously operate heating at -31°F(-35°C).

Cooling below 23°F (-5°C) requires wind bae.

*Refrigerant lineset adapter shipped with outdoor unit; install on outdoor unit.
