Handleiding

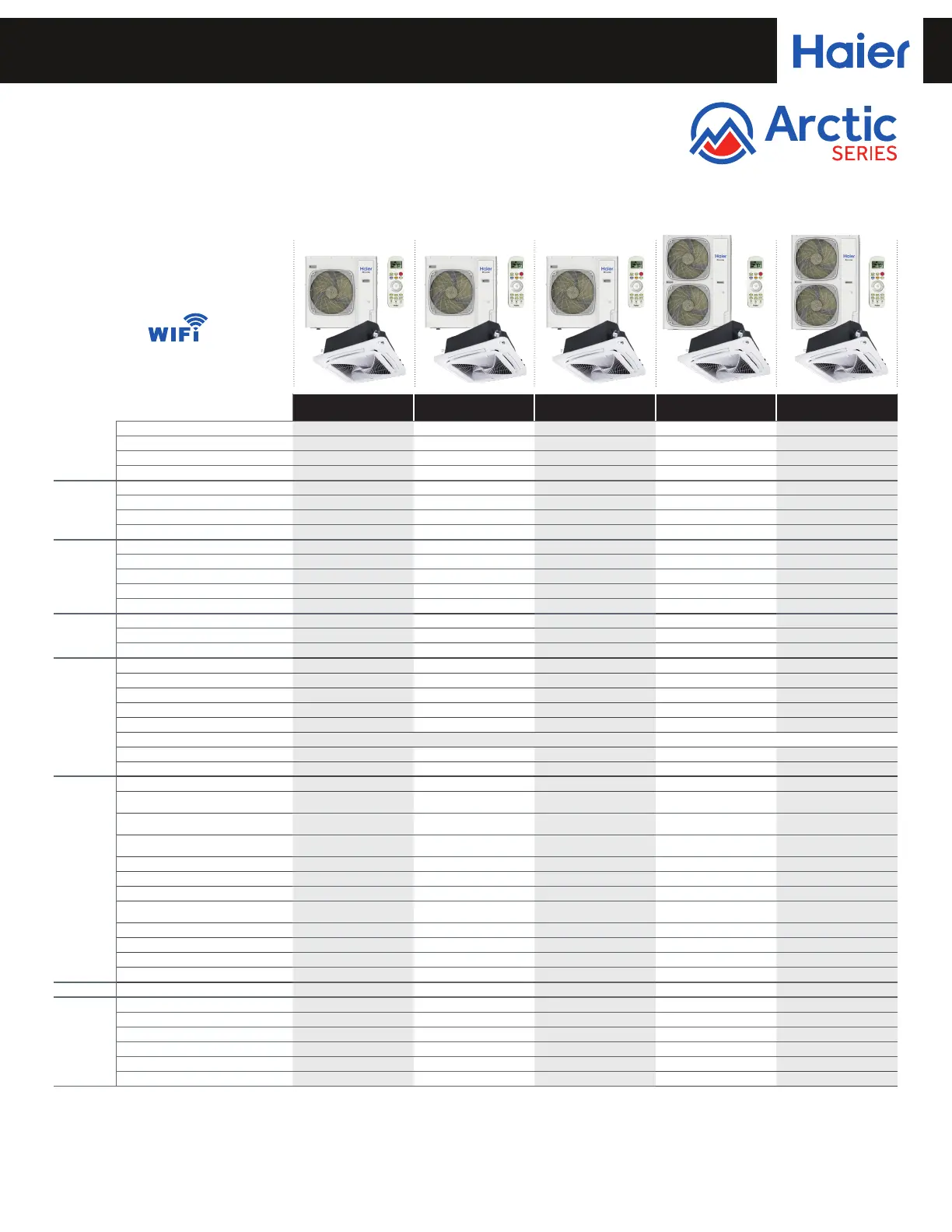

Specications

Compressor Type:

DC Inverter Driven Rotary

Voltage/Cycle/Phase:

208-230/60/1

Built-in WiFi

24LPYL 30LPYL 36LPYL 42LPYL 48LPYL

Outdoor 1U24LP2HDA 1U3036LP2HDA 1U3036LP2HDA 1U4248LP2HDA 1U4248LP2HDA

UPC

084691882275 084691882282 084691882282 084691882299 084691882299

Indoor USYL24UCDDA USYL30UCDDA USYL36UCDDA USYL42UCDDA USYL48UCDDA

UPC

084691882381 084691882398 084691882404 084691882411 084691882428

Cooling

Rated Capacity Btu/hr 24,000 30,000 36,000 42,000 47,000

Capacity Range Btu/hr 11,000~26,000 11,500~31,500 11,500~37,000 11,500~43,000 12,000~48,000

SEER2/EER2 19.0/11.0 18.0/10.6 18.0/9.5 18.0/8.7 17.0/8.0

Moisture Removal Pt./hr 6.9 9.8 9.8 12.0 12.0

Heating

Rated Heating Capacity 47°F Btu/hr 26,000 31,000 37,000 44,000 47,000

Max. Heating Capacity 5°F Btu/hr 19,000 26,800 26,600 32,800 33,000

COP @ 5°F 1.8 1.8 1.8 1.75 1.65

Heating Capacity Range Btu/hr 6,800~27,000 5,500~33,000 5,500~38,000 9,000~46,000 9,000~48,000

HSPF2 (IV)/HSPF2 (V) 8.6/7.1 9.2/7.4 9.0/7.3 8.5/6.8 8.5/6.9

Operating

Range

Cooling w/o Wind Bae °F (°C) 23°F~115°F (-5~46°C) 23°F~115°F (-5~46°C) 23°F~115°F (-5~46°C) 23°F~115°F (-5~46°C) 23°F~115°F (-5~46°C)

Cooling w/Wind Bae °F (°C) -4°F~115°F (-20~46°C) -4°F~115°F (-20~46°C) -4°F~115°F (-20~46°C) -4°F~115°F (-20~46°C) -4°F~115°F (-20~46°C)

Heating °F (°C) -15°F~75°F (-26~4°C) -15°F~75°F (-26~4°C) -15°F~75°F (-26~4°C) -15°F~75°F (-26~4°C) -15°F~75°F (-26~4°C)

Outdoor Unit

Maximum Fuse Size A 25 30 30 40 40

Minimum Circuit Amp A 21 26 26 35 35

Dimension: Height in (mm) 37 7/8 (965) 37 7/8 (965) 37 7/8 (965) 53 1/8 (1350) 53 1/8 (1350)

Dimension: Width in (mm) 37 1/2 (950) 37 1/2 (950) 37 1/2 (950) 37 1/2 (950) 37 1/2 (950)

Dimension: Depth in (mm) 14 5/8 (370) 14 5/8 (370) 14 5/8 (370) 14 5/8 (370) 14 5/8 (370)

Carton Dimension: H x W x D in (mm) 46 3/8 (1175) x 41 3/8 (1050) x 19 1/8 (485) 61 3/4 (1568) x 41 3/8 (1050) x 19 1/8 (485)

Weight Ship/Net - lbs (kg) 196/159 (89/72) 196/159 (89/72) 196/159 (89/72) 262/216 (119/98) 262/216 (119/98)

Base Pan Heater Built-in Built-in Built-in Built-in Built-in

Indoor Unit

Fan Speed Stages 5 + Auto 5 + Auto 5 + Auto 5 + Auto 5 + Auto

Airow CFM

(Turbo/High/Med/Low/Quiet)

880/824/752/587/482 1034/967/871/780/710 1034/967/871/780/710 1282/1236/967/830/740 1282/1236/967/830/740

Indoor Motor Speed RPM

(Turbo/High/Med/Low/Quiet)

620/580/540/430/360 800/730/650/550/450 800/730/650/550/450 830/800/730/600/500 830/800/730/600/500

Indoor Sound Level dB

(Turbo/High/Med/Low/Quiet)

48/46/44/39/37 54/51/50/48/46 54/51/50/48/46 55/54/51/48/46 55/54/51/48/46

Dimension: Height in (mm) 9 3/4 (246) 11 3/8 (288) 11 3/8 (288) 11 3/8 (288) 11 3/8 (288)

Dimension: Width in (mm) 33 1/8 (840) 33 1/8 (840) 33 1/8 (840) 33 1/8 (840) 33 1/8 (840)

Dimension: Depth in (mm) 33 1/8 (840) 33 1/8 (840) 33 1/8 (840) 33 1/8 (840) 33 1/8 (840)

Carton Dimension: H x W x D in (mm)

13 7/8 x 38 5/8 x 38 5/8

(350 x 980 x 980)

15 1/2 x 38 5/8 x 38 5/8

(390 x 980 x 980)

15 1/2 x 38 5/8 x 38 5/8

(390 x 980 x 980)

15 1/2 x 38 5/8 x 38 5/8

(390 x 980 x 980)

15 1/2 x 38 5/8 x 38 5/8

(390 x 980 x 980)

Drain Pipe Size O.D in 1 1/4* 1 1/4* 1 1/4* 1 1/4* 1 1/4*

Internal Condensate Pump Standard Standard Standard Standard Standard

Max. Drain-Lift height in(mm) 47 1/4 (1200) 47 1/4 (1200) 47 1/4 (1200) 47 1/4 (1200) 47 1/4 (1200)

Weight Ship/Net - lbs 90/64 (41/29) 95/66 (43/30) 95/66 (43/30) 95/66 (43/30) 95/66 (43/30)

Grille Model Number PB-950KD PB-950KD PB-950KD PB-950KD PB-950KD

Refrigerant

Lines

Line Size: Liquid (Suction) in. 3/8 (5/8) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4)

IDU Flare Size: Liquid (Suction) in. 3/8 (5/8) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4)

ODU Port Size: Liquid (Suction) in. 3/8 (5/8) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4) 3/8 (3/4)

Lineset Adapter Required None None None None None

Refrigerant (Factory Charge Oz.) R410A (85.0) R410A (88.0) R410A (88.0) R410A (141.0) R410A (141.0)

Max. Line Length/Height Ft (mm) 165/100 (50/30) 165/100 (50/30) 165/100 (50/30) 230/100 (70/30) 230/100 (70/30)

The Arctic Series 9/12/18K BTU models will continuously operate heating at -31°F(-35°C).

Cooling below 23°F (-5°C) requires wind bae.

*Condensate drain adapter shipped with the indoor unit is designed to accept a 3/4" PVC pipe.
