6LE008221A
Floor installation systems
Basic manual
Page 46/61
Floor installation systems
Testing
Load testing of electrical installation duct systems
Electrical installation duct systems for electrical installations must conform with the standard
(DIN) EN 50085-2-2.
The standard states that electrical installation duct systems must possess sufficient mechanical
stability.
Load capacity for screed-flush duct systems (BK) and their installation units
(DIN) EN 50085-2-2 defines load classes for two applications.
Tests are carried out according to:
– 6.102 with a stamp (Ø 13 mm) for standard applications (Image 18, left)
– 6.103 with a plate (Ø 130 mm) for high loads (Image 18, right)
D - Diameter 13.3 ± 0.1 mm
D - Diameter 130 ± 0.5 mm

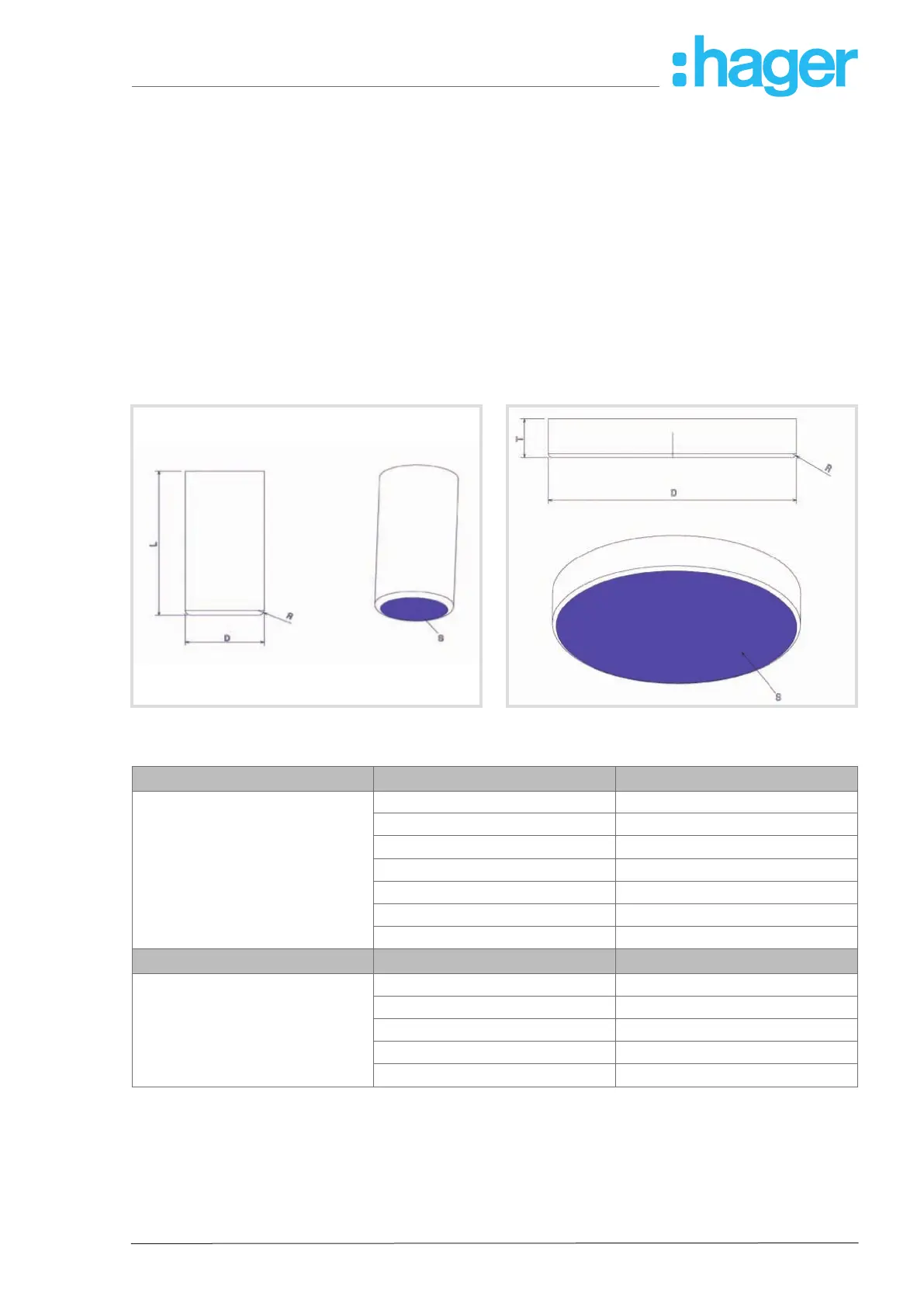

Image 18: Test die (left) / test plate (right)
Testing Load class (DIN) EN 50085
Standard application (tested with test
die 13 mm)
6.102.1 500 N
6.102.2 750 N
6.102.3 1000 N
6.102.4 1500 N
6.102.5 2000 N
6.102.6 2500 N
6.102.7 3000 N
High load (tested with a test plate Ø
130 mm)
6.103.1 2000 N
6.103.2 3000 N
6.103.3 5000 N
6.103.4 10000 N
6.103.5 15000 N
Table 14: Load classes according to (DIN) EN 50085-2-2
P
The testing of the floor installation systems with high load requirements may be dealt with in
the standard (DIN) EN 500085-2-2, but the bending during the test (6 mm) permitted in the
standard and that after the test (≤ 3 mm) is not practical. Bending of this magnitude inevita-
bly leads to damage to hard floor coverings (e.g. tiles).
